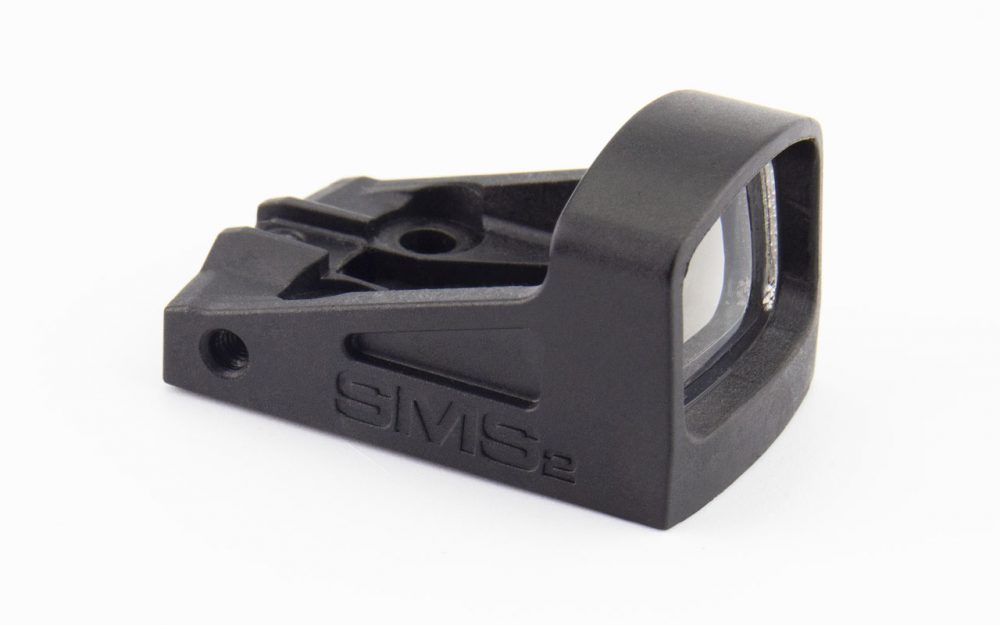

SMS2 - Shield Mini Sight 2.0 - 4MOA
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 2
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 3
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 4
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 5
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 6
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 7
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 8
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 9
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 10
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 11
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 12
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 13
SMS2 - Shield Mini Sight 2.0 - 4MOA - Image 14

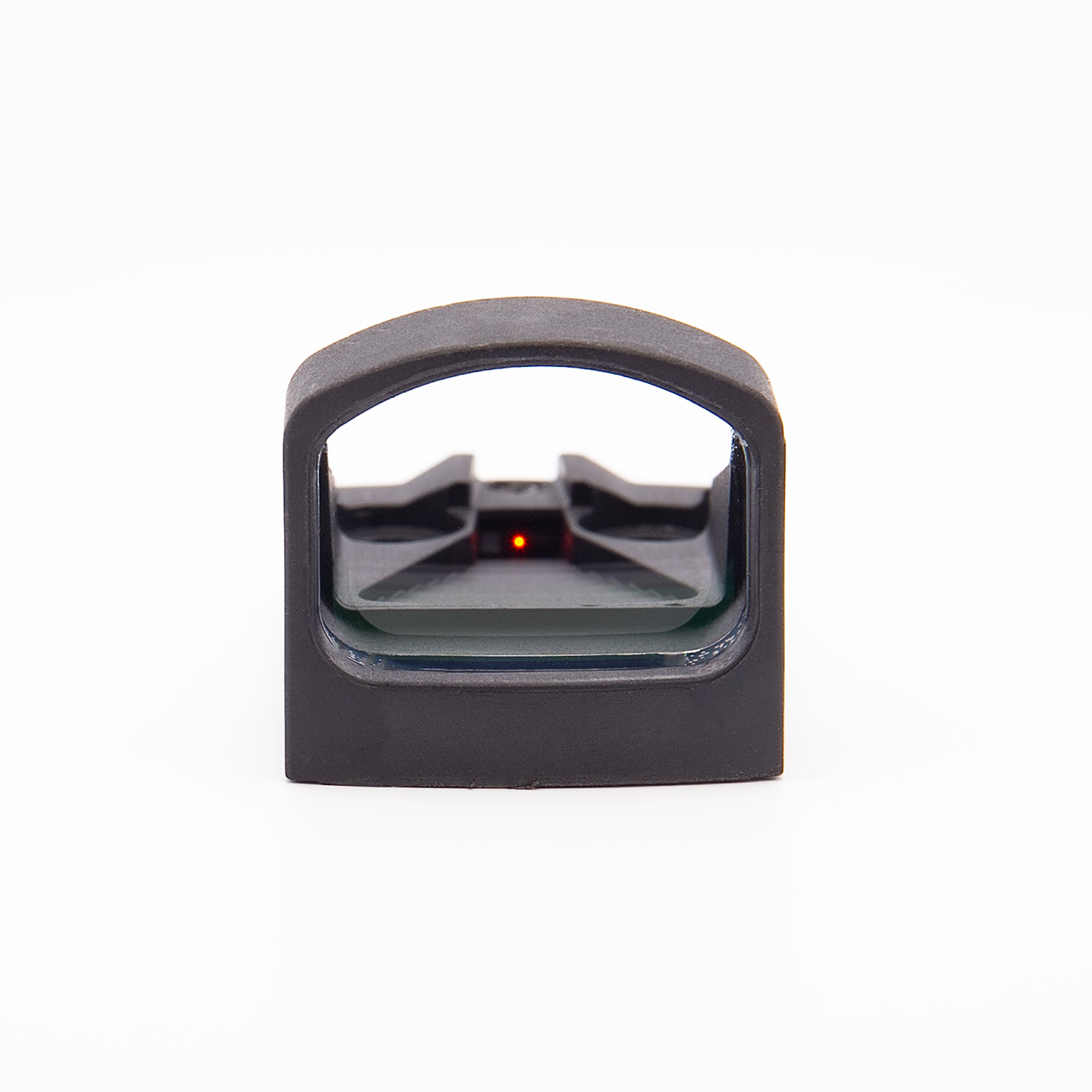

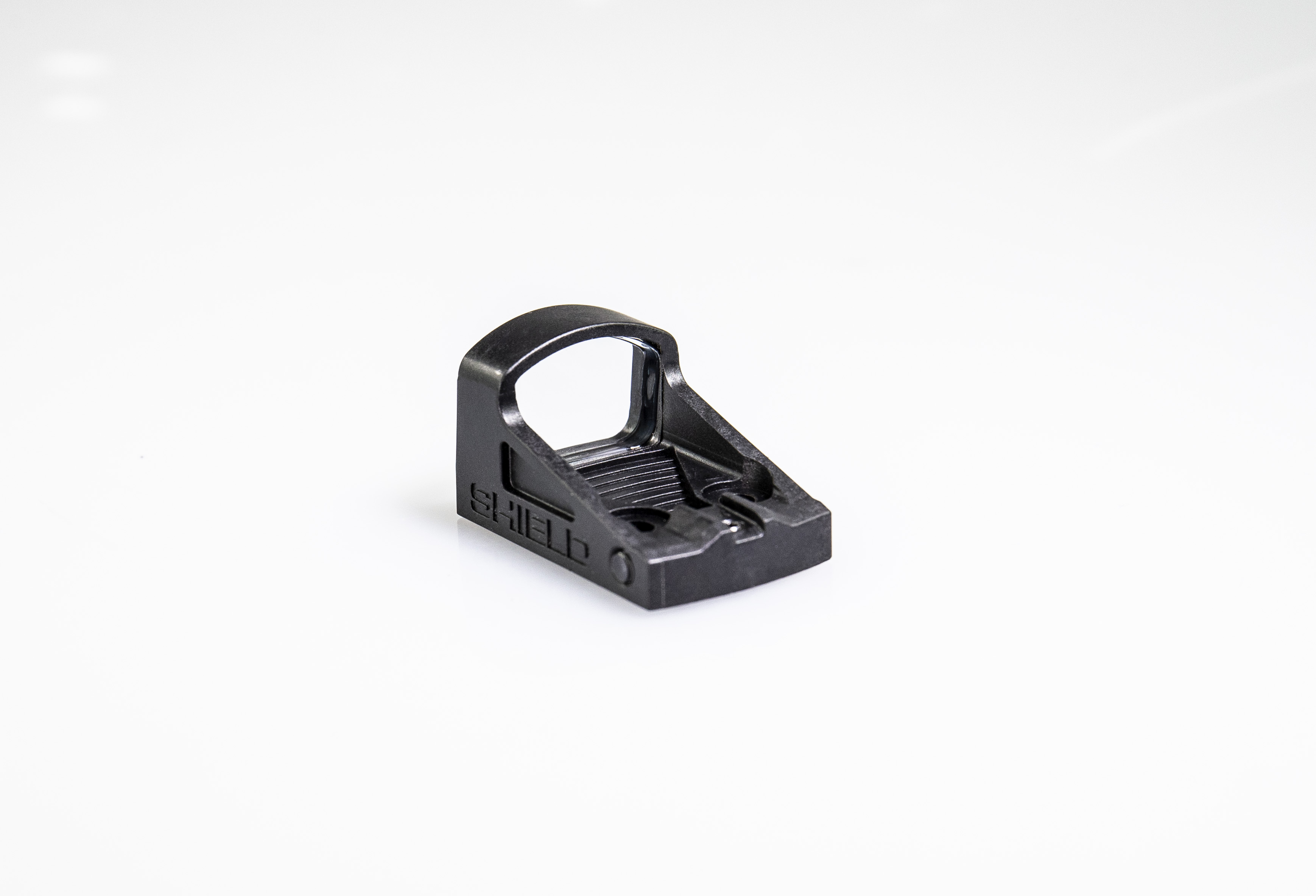

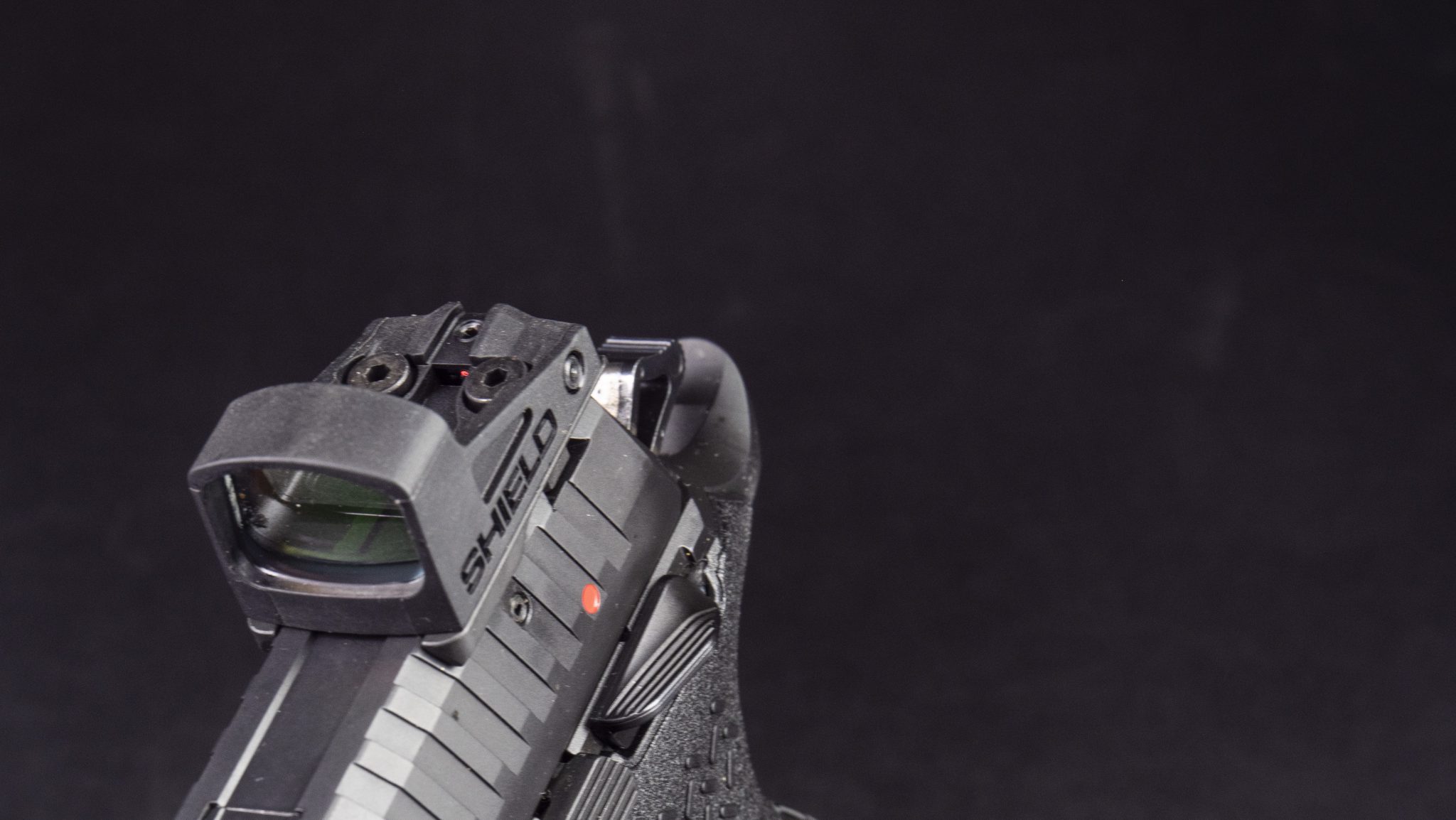

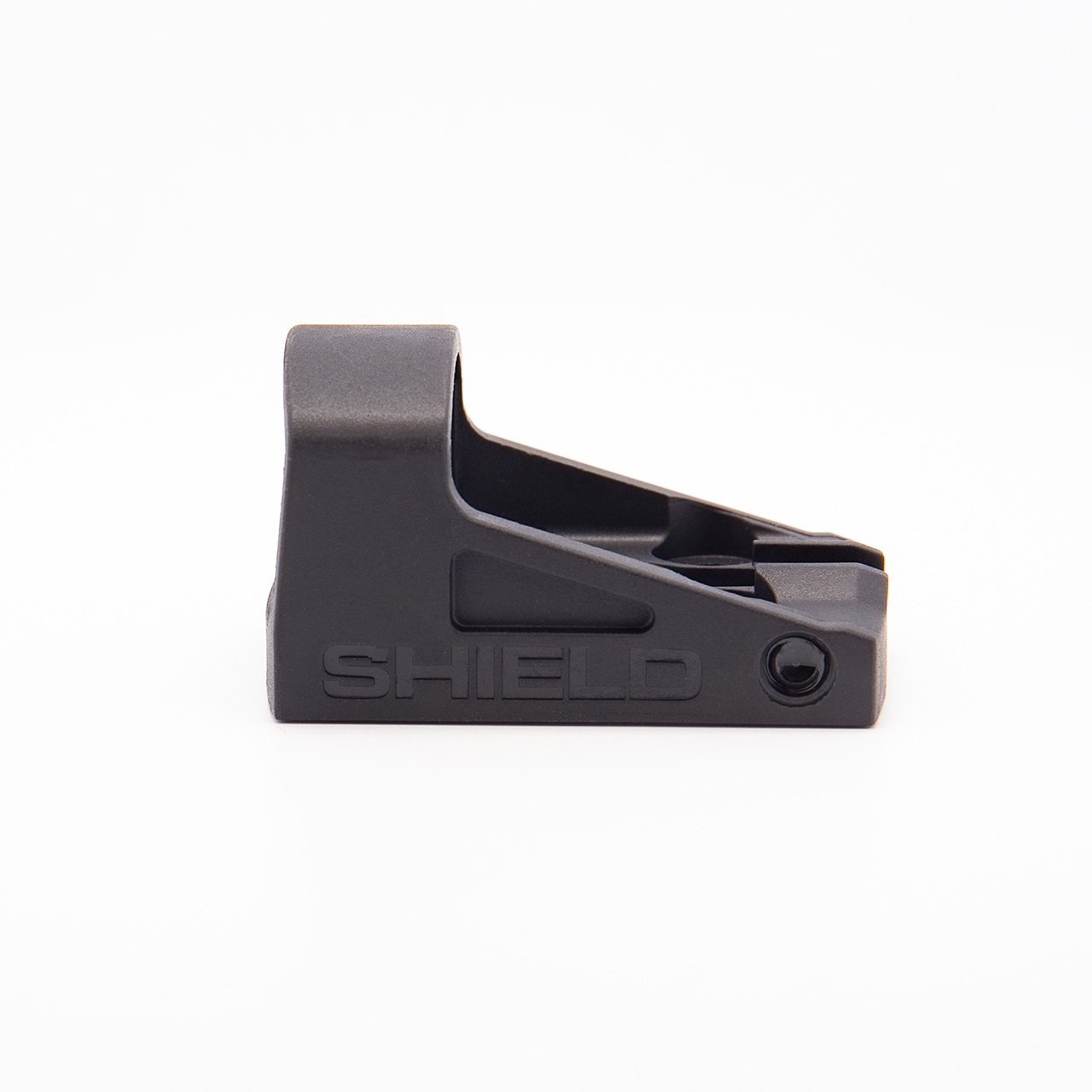

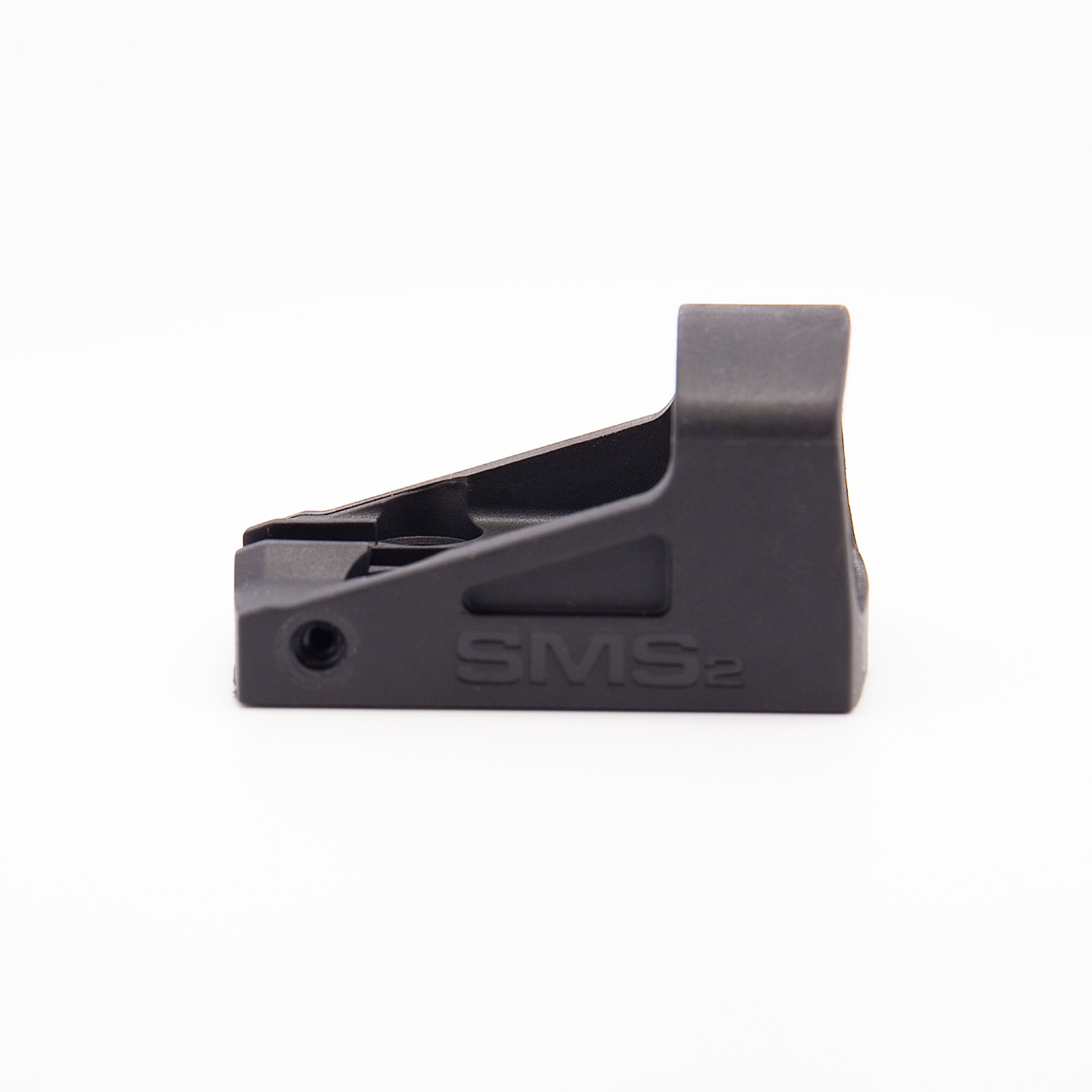

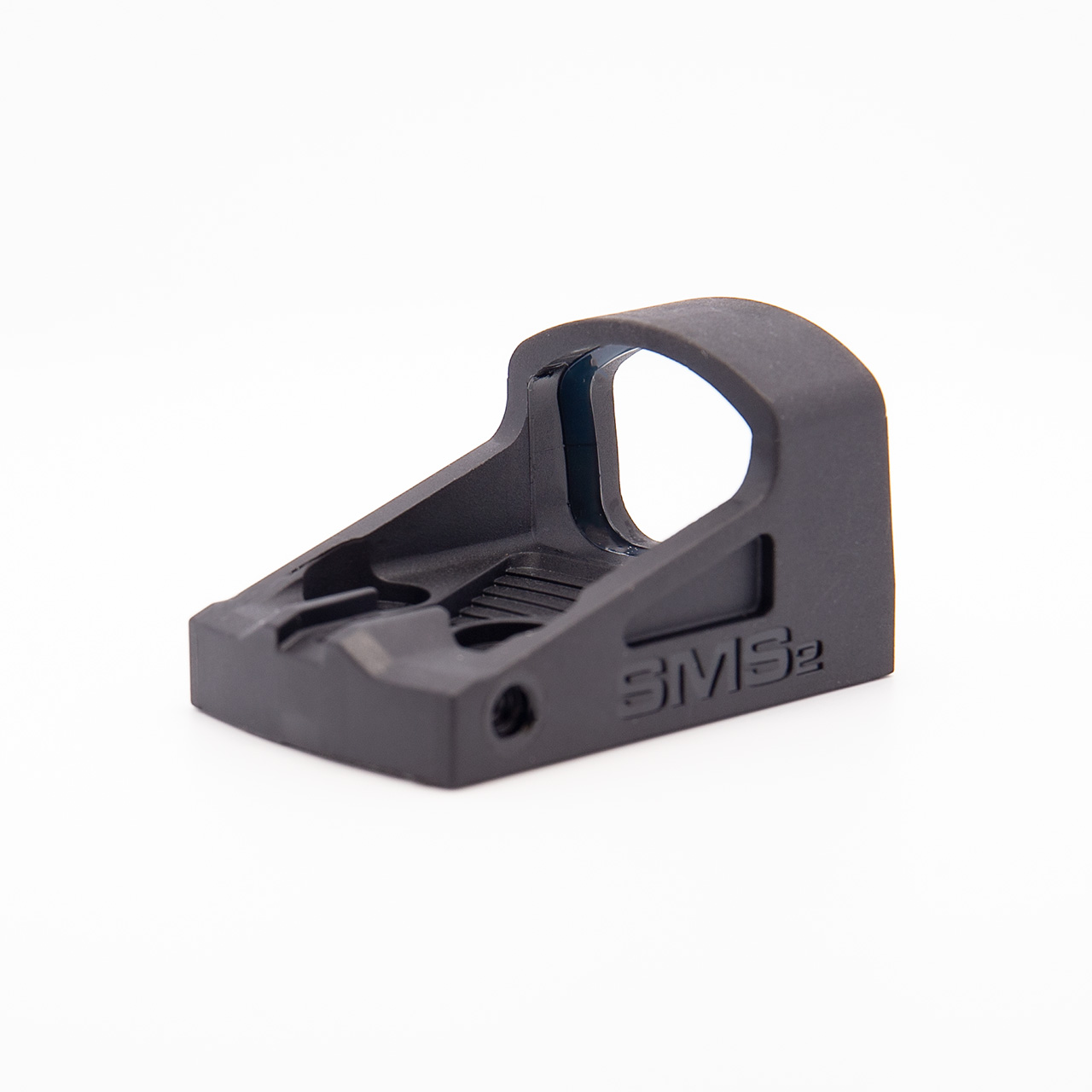

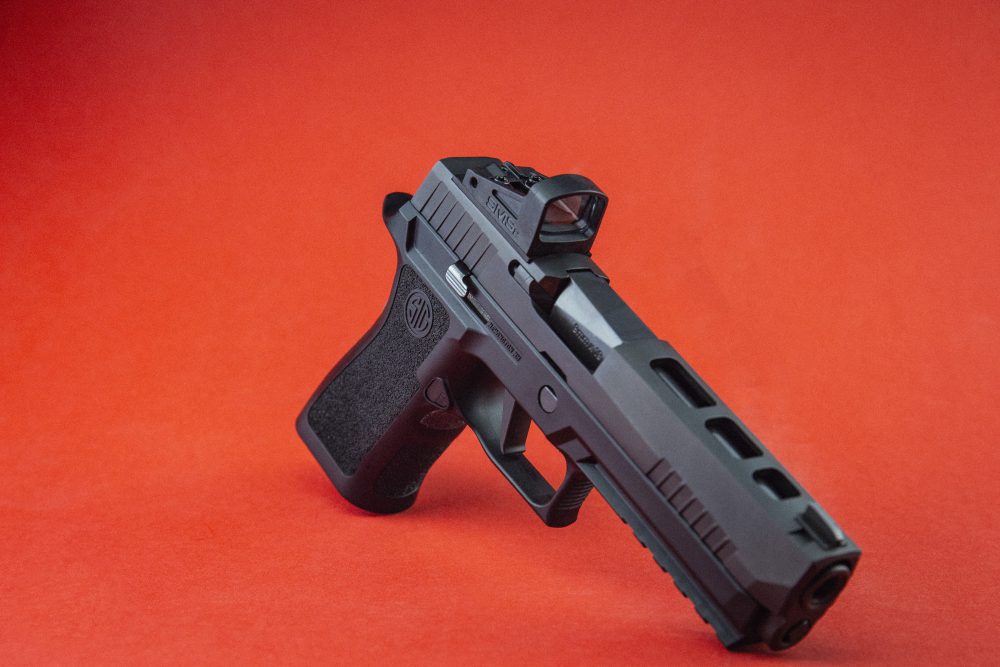

SMS2 – Shield Mini Sight 2.0 – 4MOA

$269.99 ex VAT

SKU: SMS2-4MOA-POLY Categories: , , Tags: , , , ,

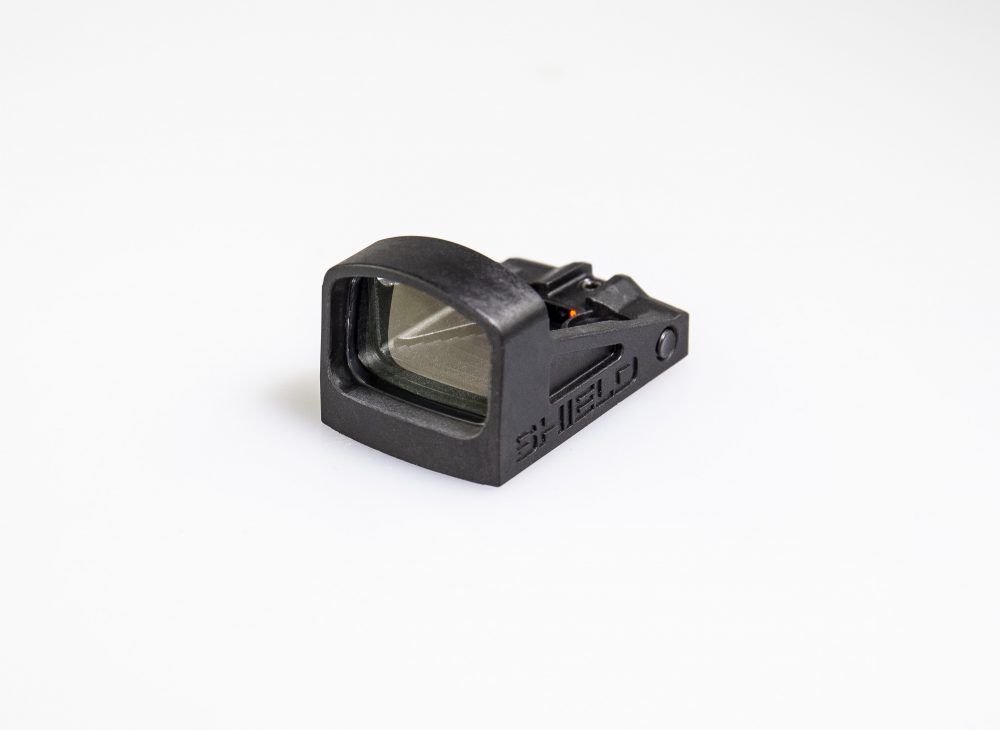

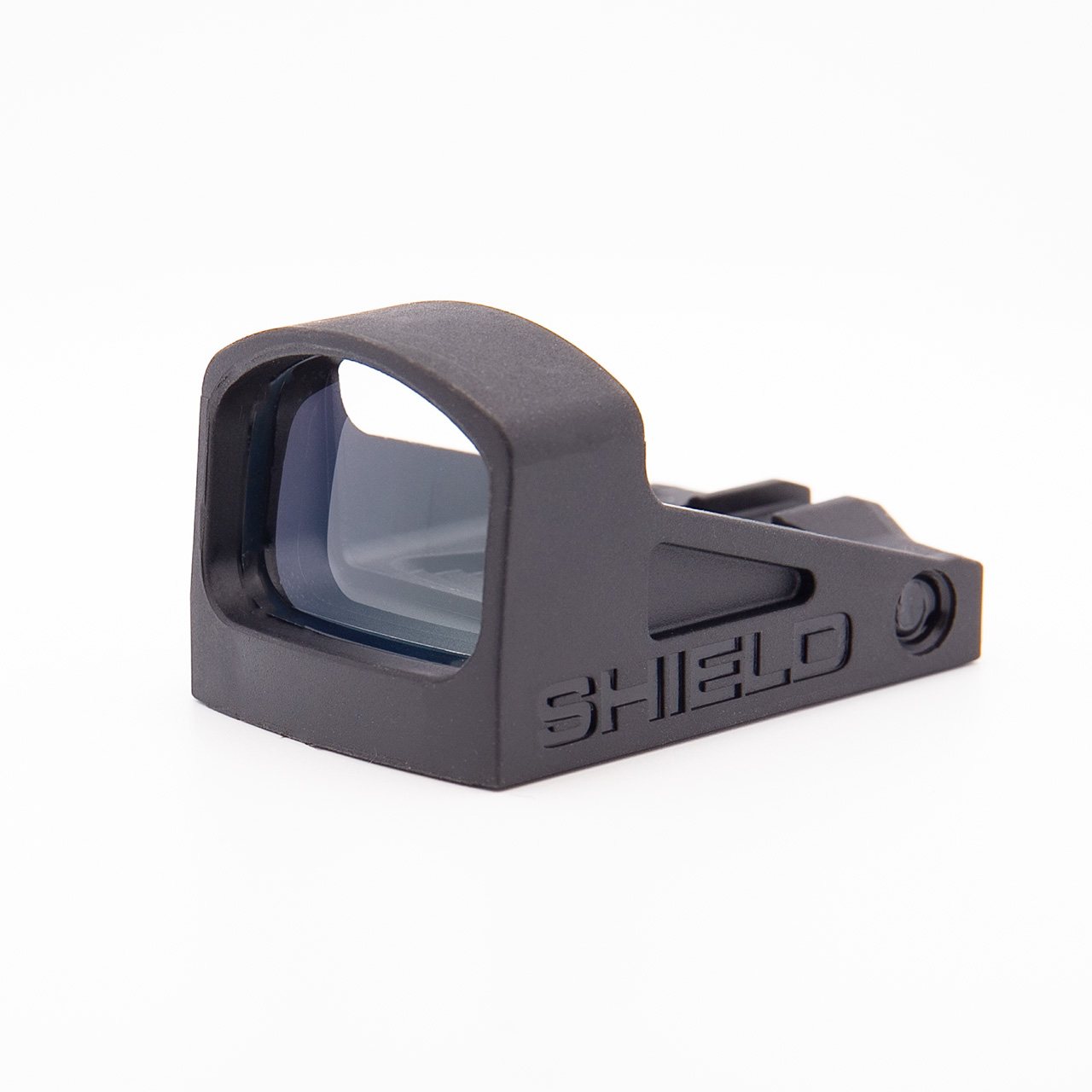

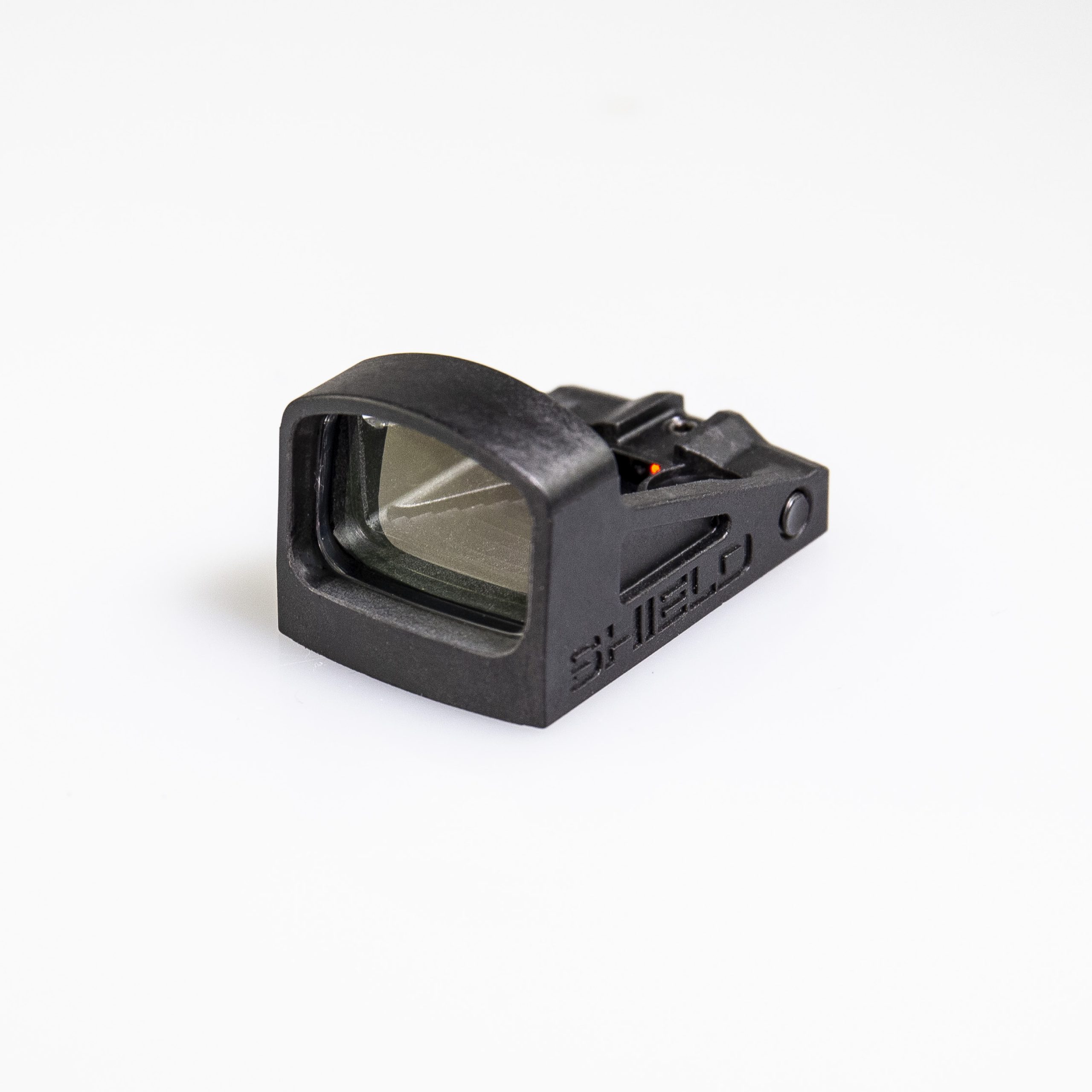

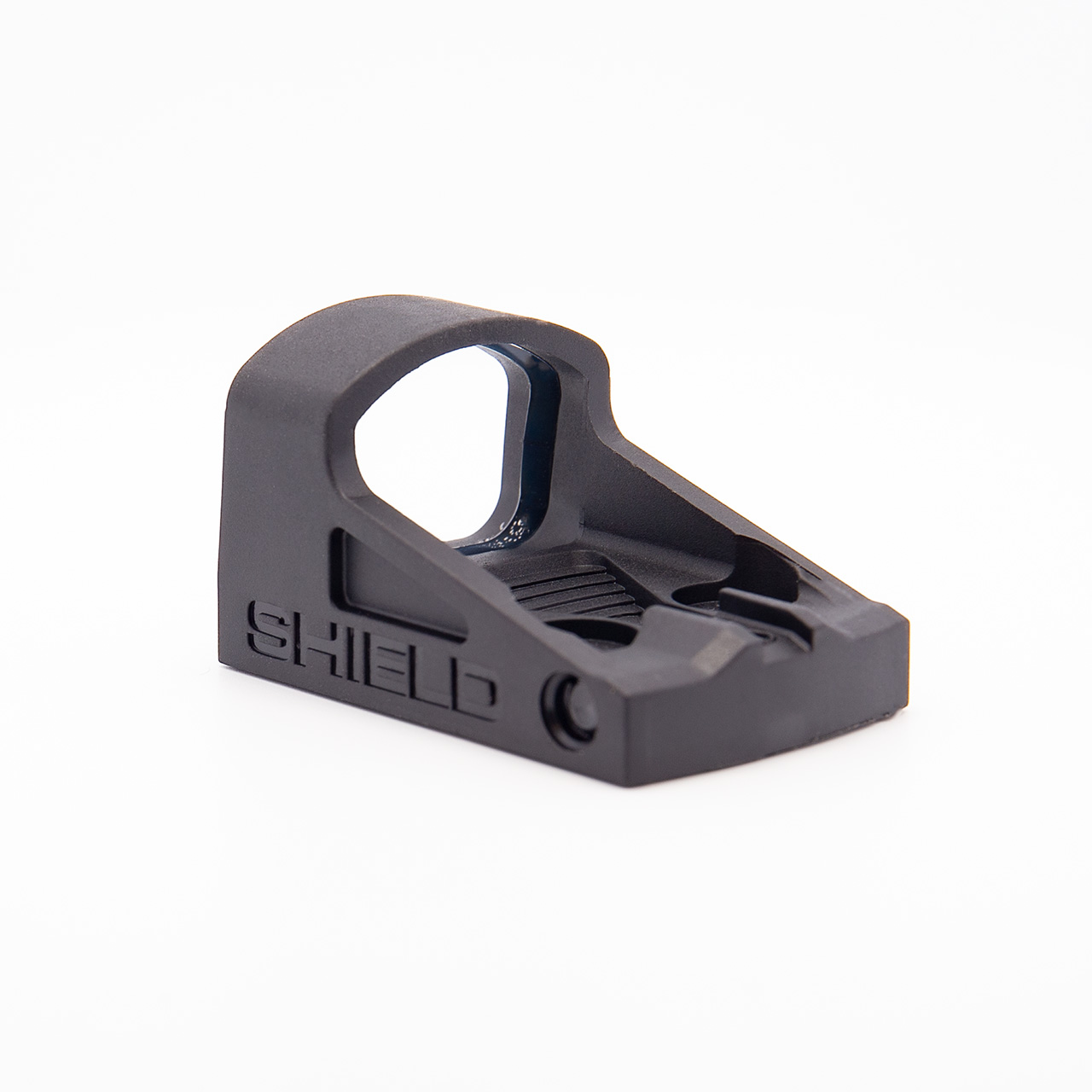

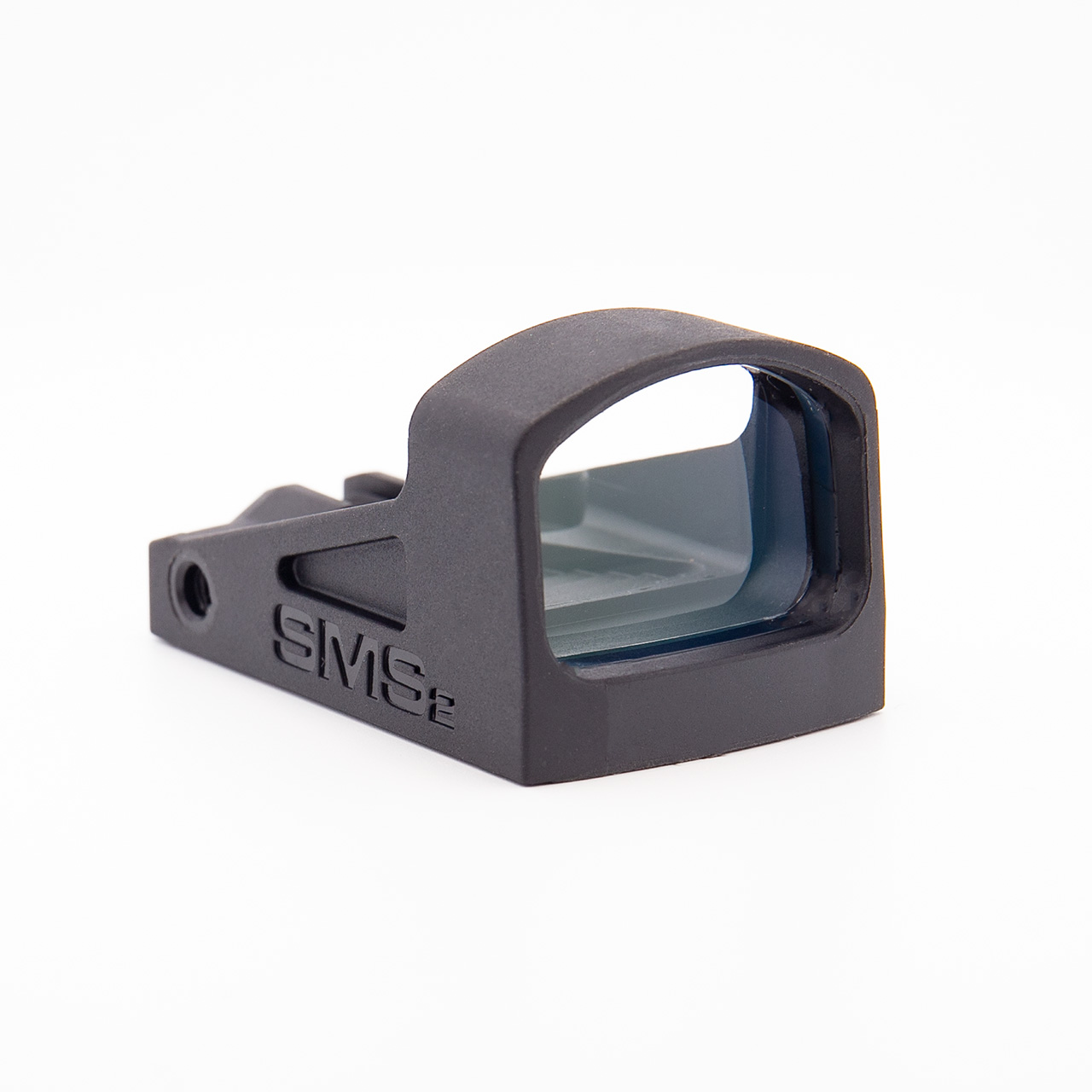

The Original Mini Sight, Remastered.

The SMS2 carries forward the 20-year legacy of the original Mini Red Dot, now re-engineered for the modern world.

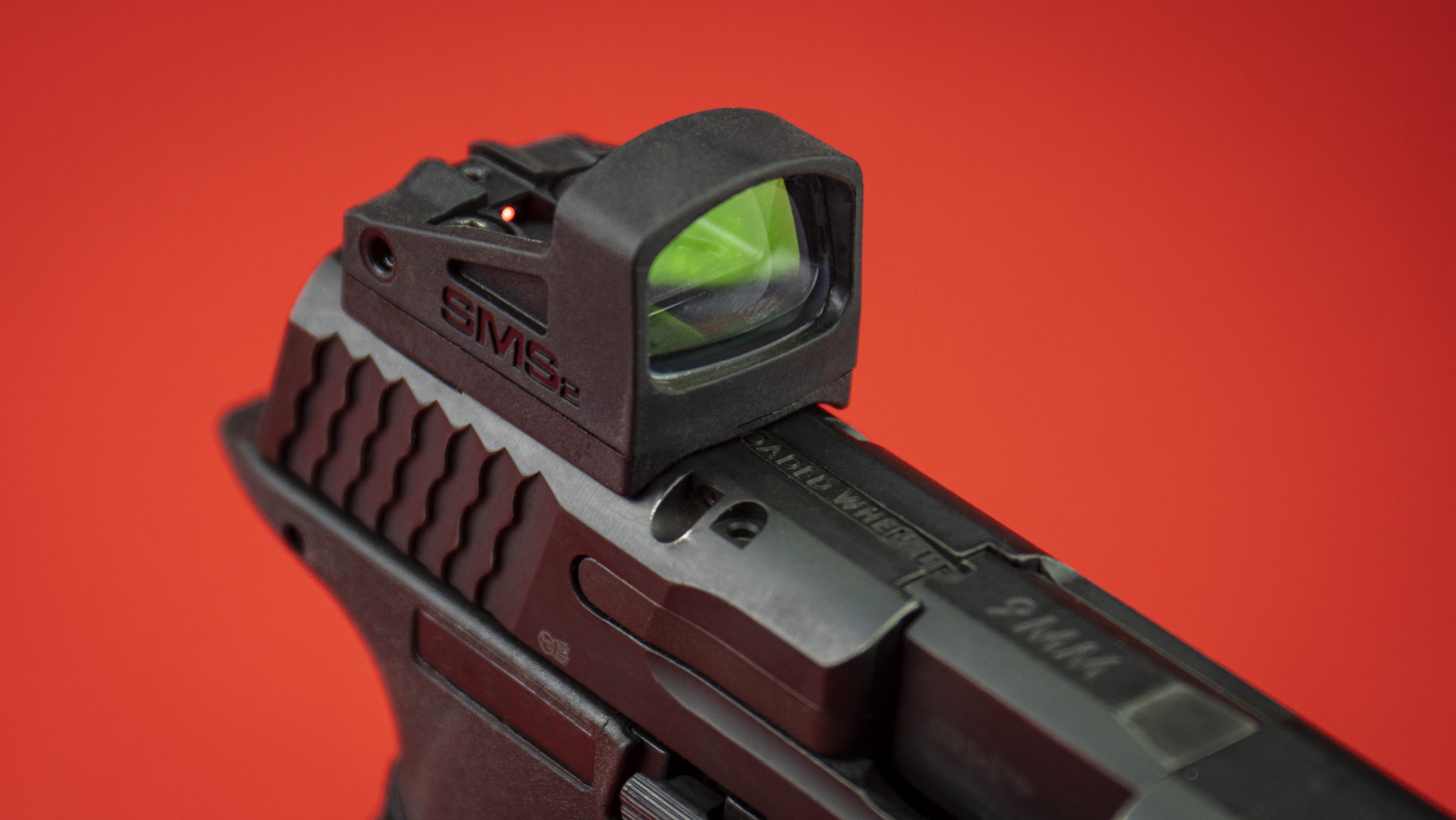

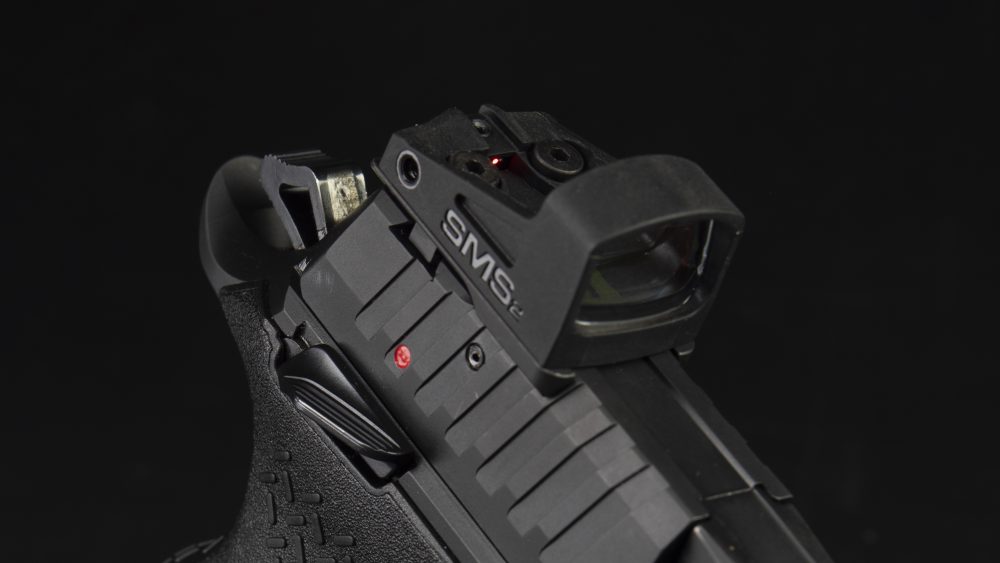

Crafted from nylon glass-filled polymer, the SMS2 offers the choice between a hard-dipped acrylic lens or a crystal-clear glass lens for enhanced scratch resistance, ensuring it stands up to the rigors of everyday shooting. Its iconic low-profile design allows shooters to co-witness with standard iron sights, thanks to the unobtrusive frame and rear iron sight notch.

Staying true to SHIELD’s philosophy, the SMS2 eliminates the unnecessary, giving shooters just one clear point of focus. There are no oversized sight housings obstructing your vision, no dimmed lenses, no distracting buttons, and no backup sights interfering with your line of sight. Designed to sit as close to the bore-line as possible, the SMS2 aligns naturally with how a trained shooter presents their pistol, ensuring a smooth transition and an enhanced, intuitive shooting experience.

Shield Sights – made by shooters, for shooters.

Do you have the right Optics Ready screw set?

Some optics ready guns require a different set of screws. Our sight retail packaging includes 2x M4x8mm & 2x M4x10mm screws. If you require any others please select below.

Description

SMS2 Sight 4MOA (3.25MOA) Poly

  • Mounts to SHIELD’s famous footprint.
  • Utilizes SHIELD’s patented mechanism, enabling co-witnessing with standard iron sights, considerably reducing training times and costs.
  • The mechanism uses no click adjustment, making it infinitely more accurate when zeroing.

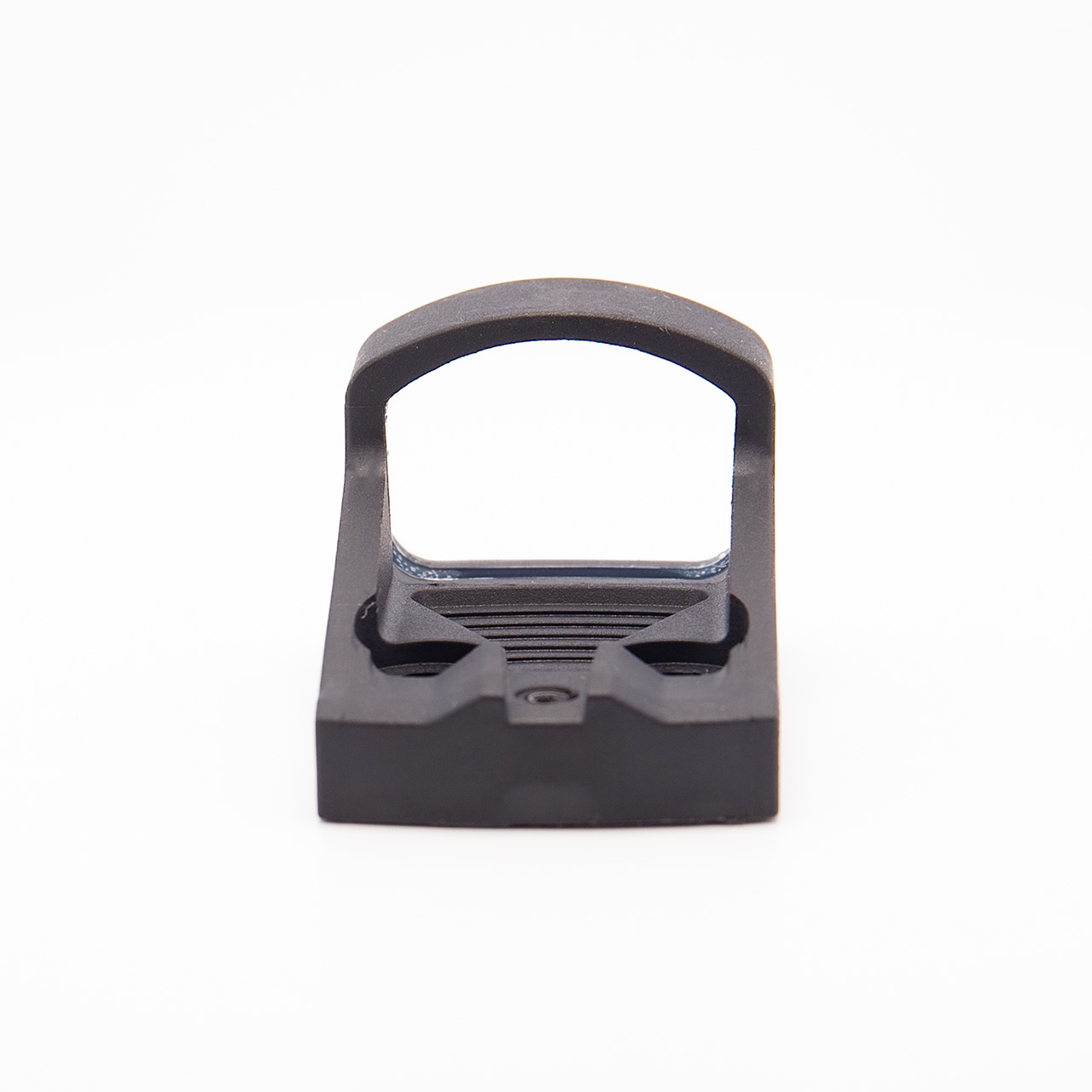

  • Available in a D-shaped hard-dipped acrylic lens or a crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Crafted from reinforced nylon glass-filled polymer
  • Weighing only 11.4g (battery excluded).
  • Auto brightness adjustment, so it can always be on and ready.
  • 20,000 hours in average daylight with a CR2032.

Support

   SMS2 Instruction Manual v1.2 – English

Technical Specification

Optical Characteristics

  • Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
  • Red Dot Size Options: 4 MOA and 8 MOA.
  • Lens: D-shaped, hard-dipped acrylic lens or a crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Lens Coating: Hard coating with anti-reflective, color-free coating that minimizes visible signature.

Electronics

  • Battery: One 3V lithium metal battery, CR2032.
  • Battery Life: 20,000 hours in average daylight with a CR2032.
  • Battery Fitting: Underneath.
  • Brightness Range:
    • Lowest: Compatible with Night Vision.
    • Highest: Visible against the sky in bright daylight.

Exterior

  • Housing Material: Nylon glass-filled polymer
  • Color: Matte Black
  • Dimensions: Sight only (L x W x H): 40.8 mm x 25.35 mm x 22.8 mm (1.6″ x 1.0″ x 0.89″).
  • Weight: 11.4 grams / 0.4 ounces (excluding battery).
  • Mount: The SHIELD footprint – 100+ mounting solutions.
  • Water Immersion: 3 feet for 30 minutes (IP67).

Accessories - What's in the box

SHIELD SMS2 Sight

  • 1 x Mini dial
  • 1 x CR2032 battery
  • 1 x 1° shim
  • 2 x Button head M4x8mm screws
  • 2 x Button head M4x10mm screws
  • 1 x 1.5 Hex wrench tools
  • 1 x 2.5 Hex wrench tools
  • 4 x 0.5mm Nylon washers
  • 1 x Reece’s Law Battery Cover
  • 2 x Battery stickers
  • 2 x Shield Target Stickers
  • 1 x SMS2 Cover
