Description

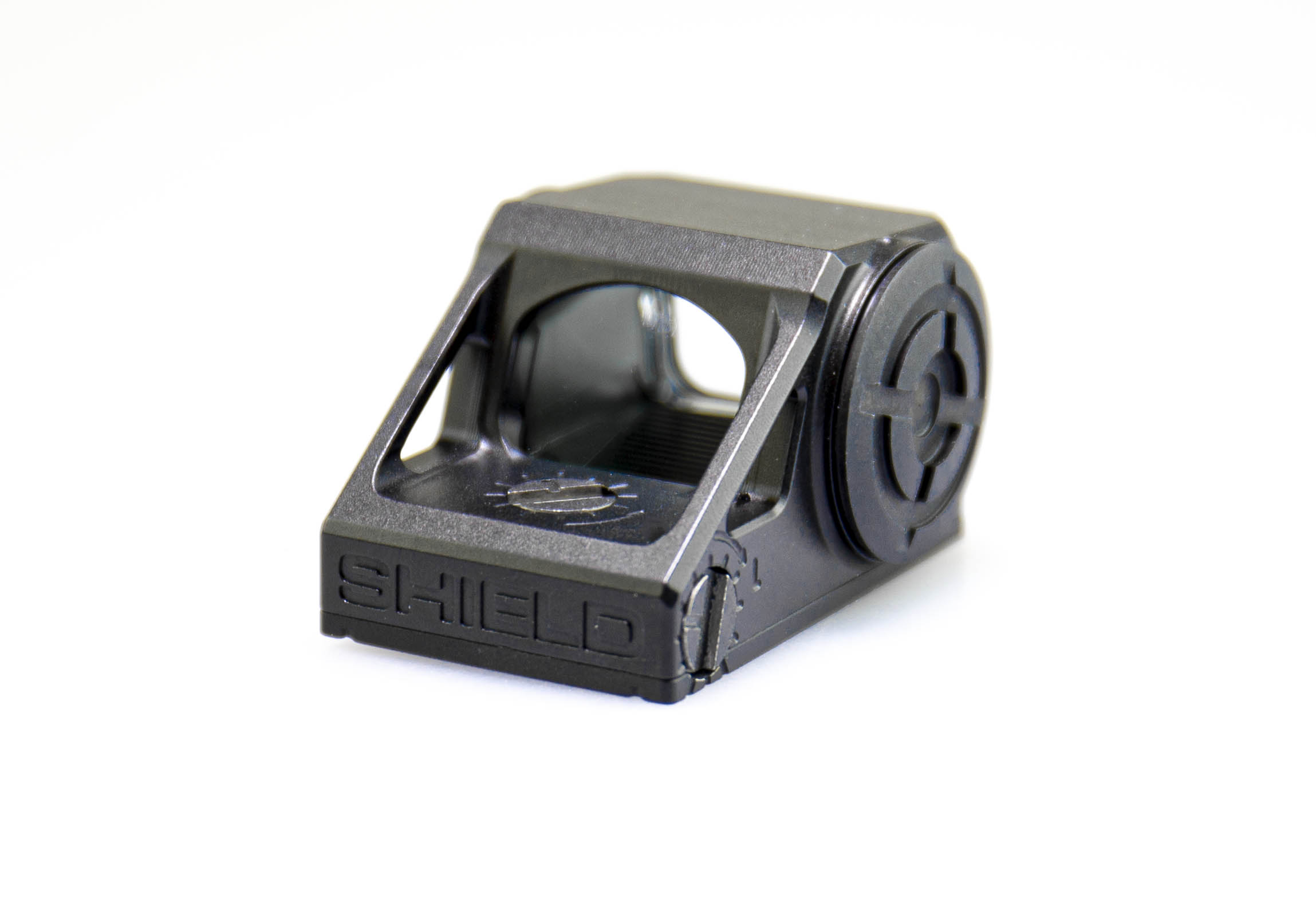

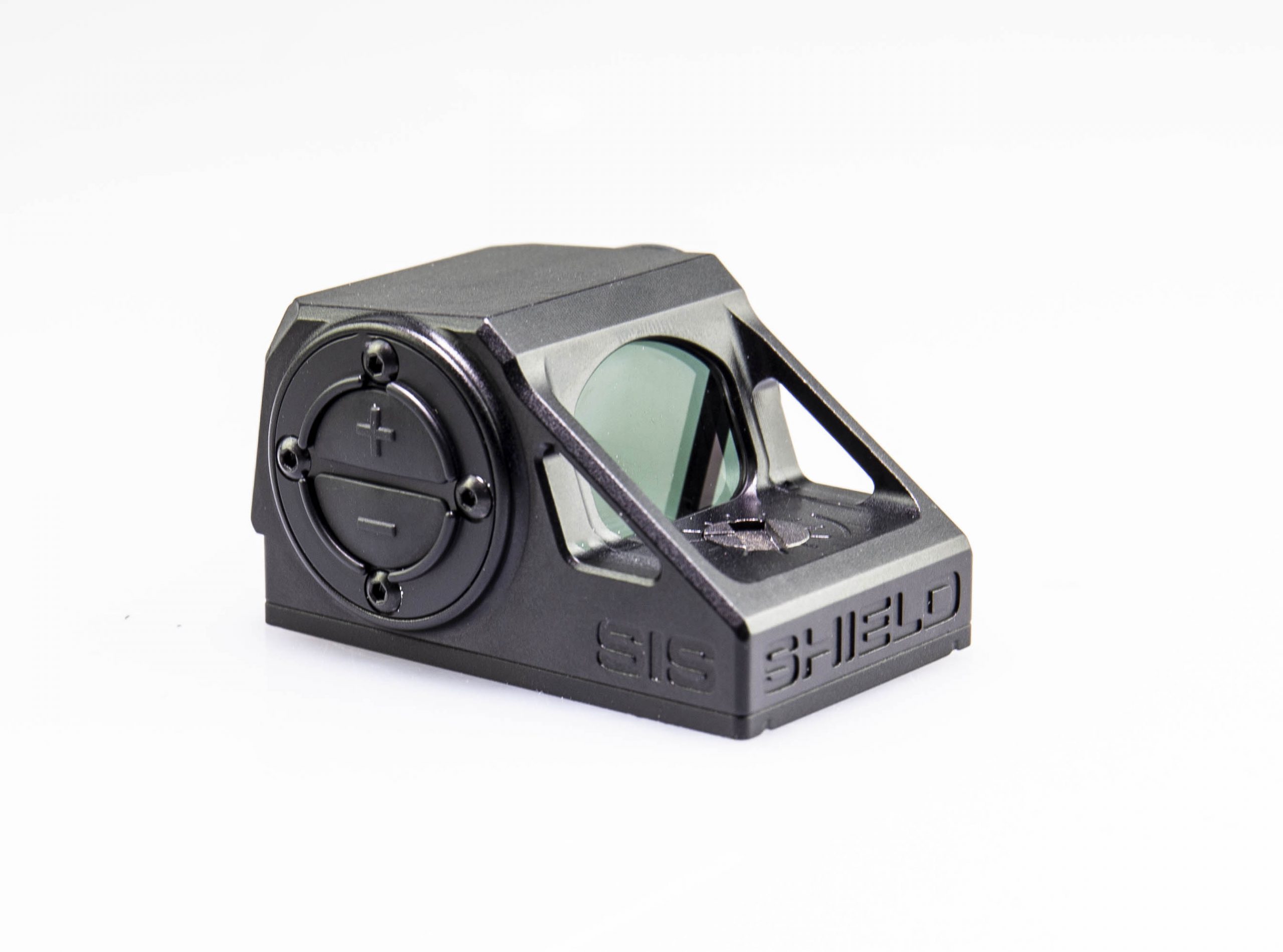

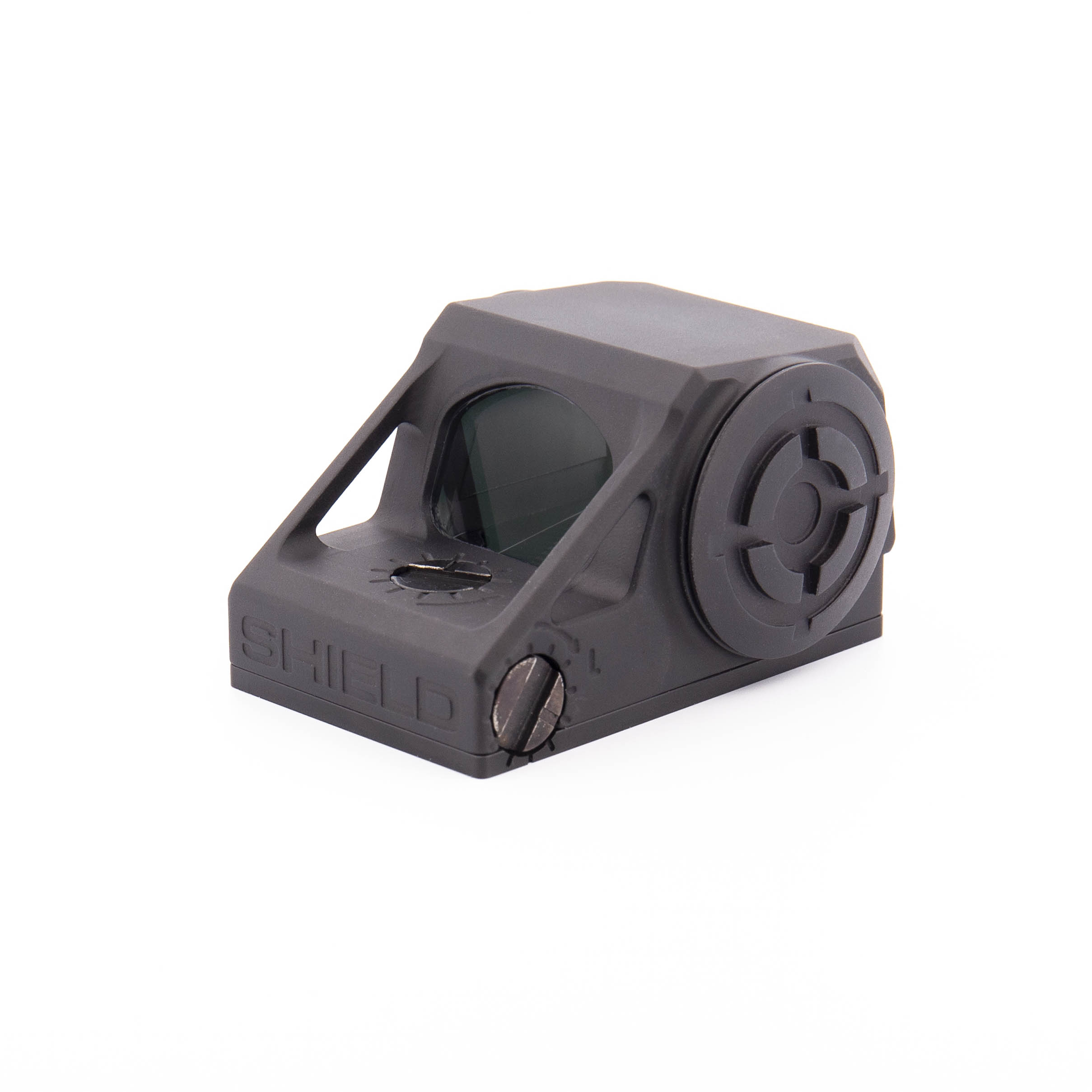

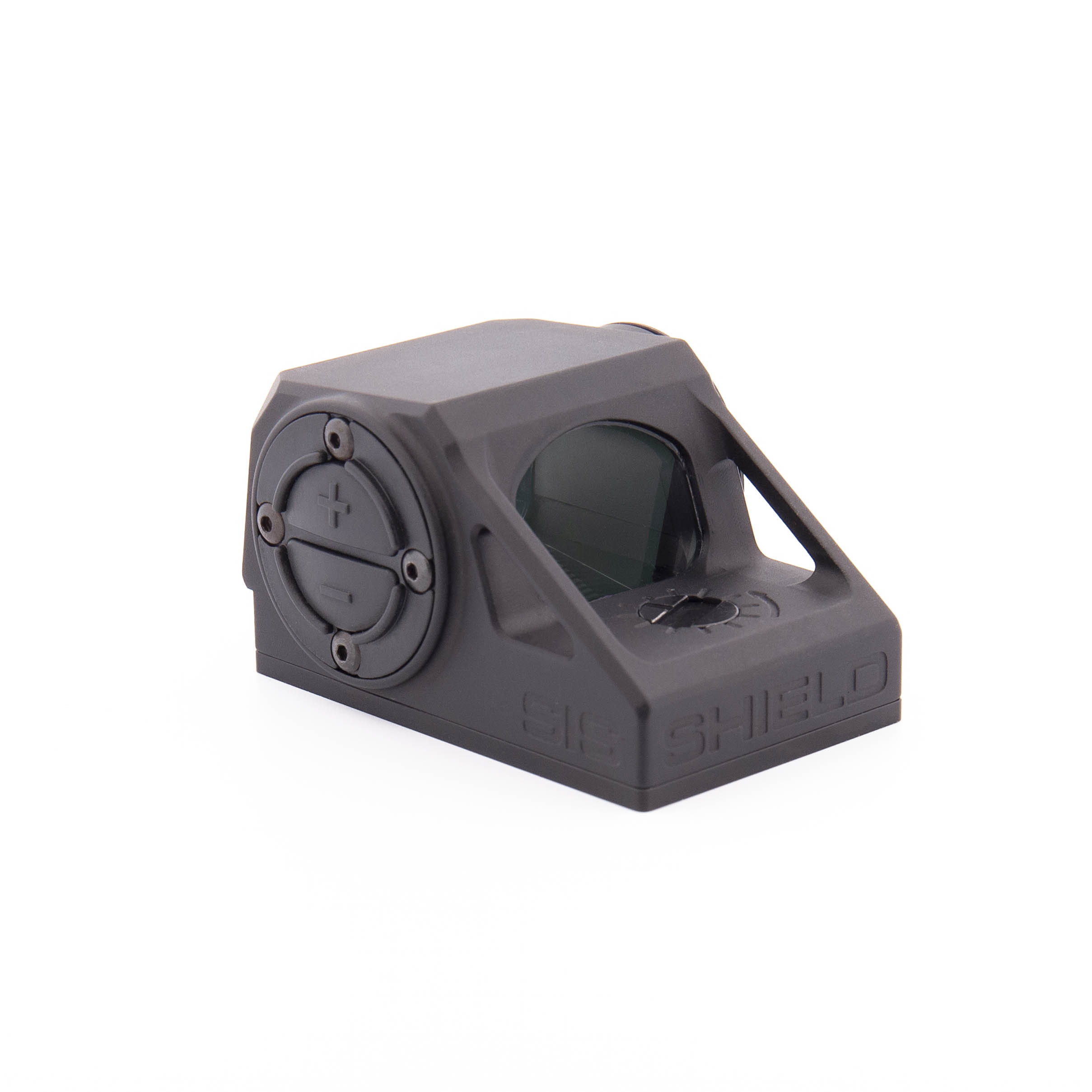

SIS2 Sight
The patented design features include:

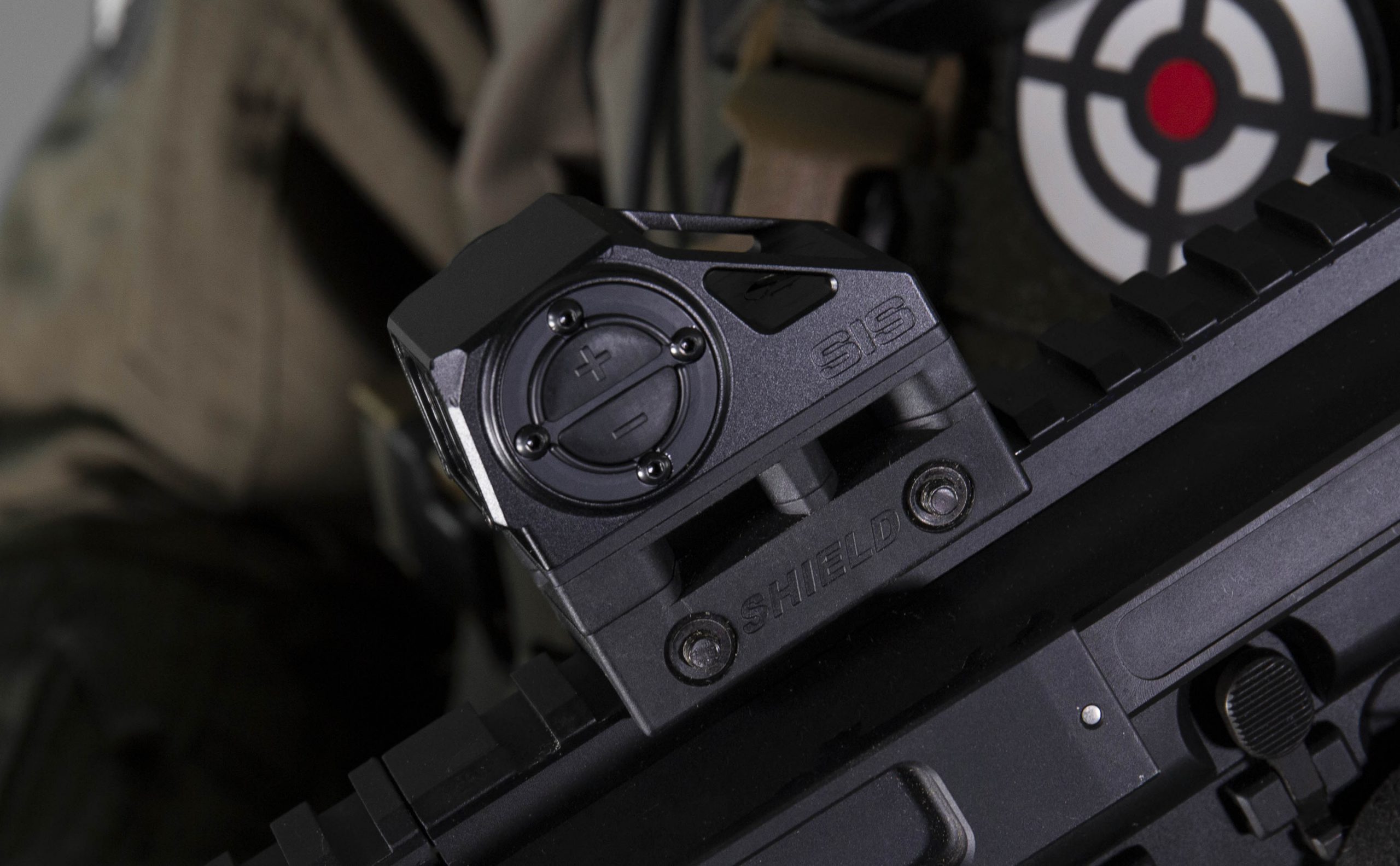

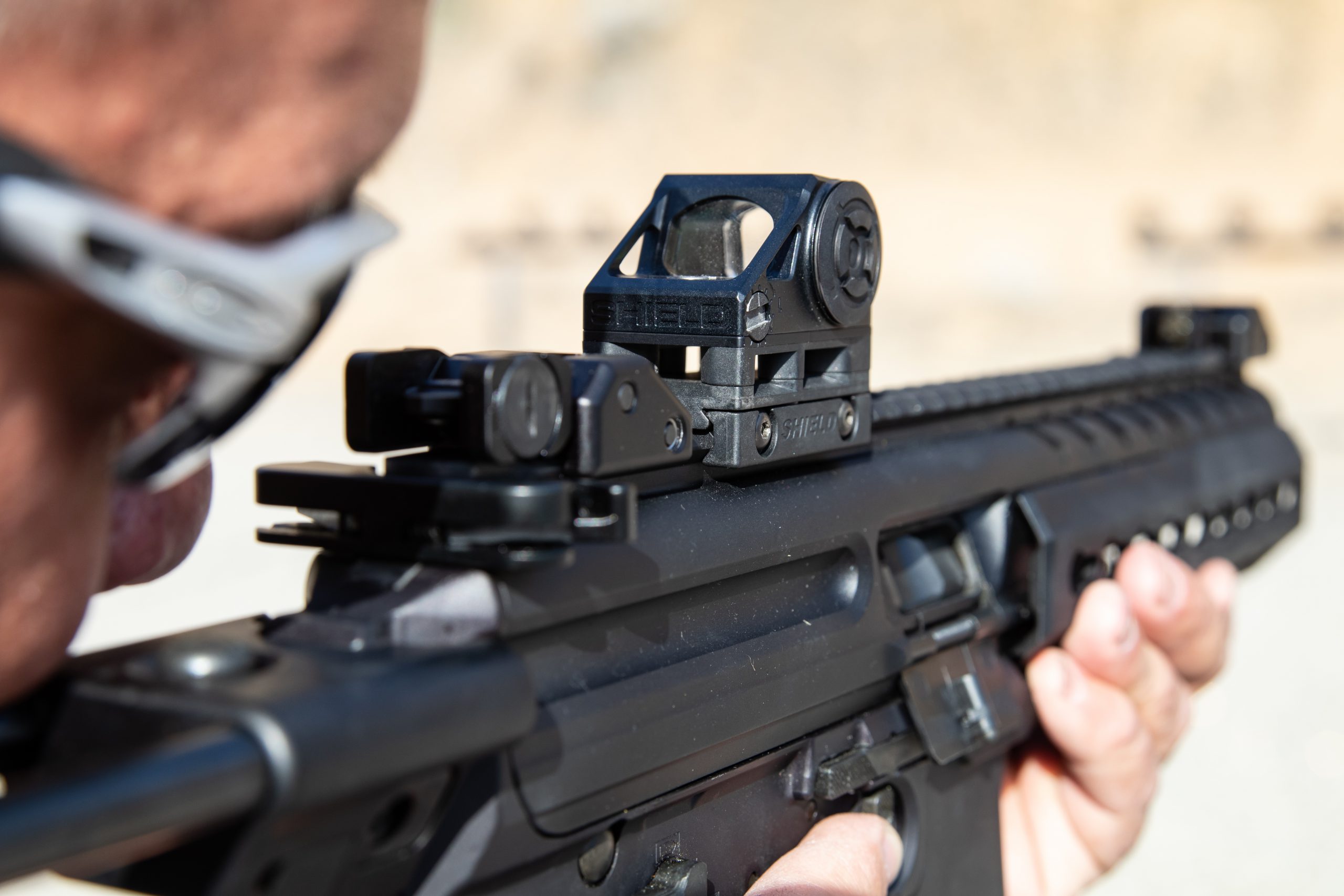

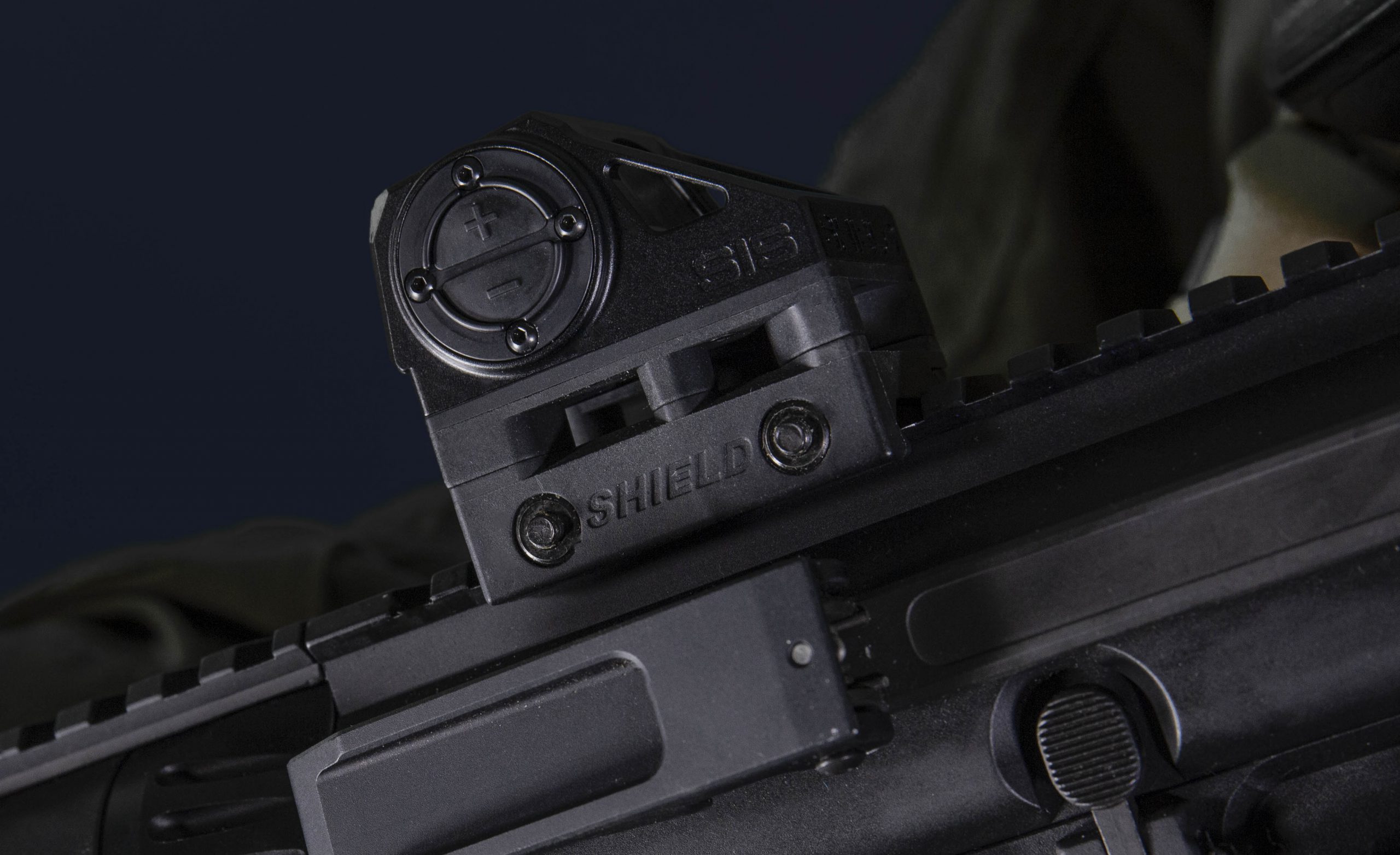

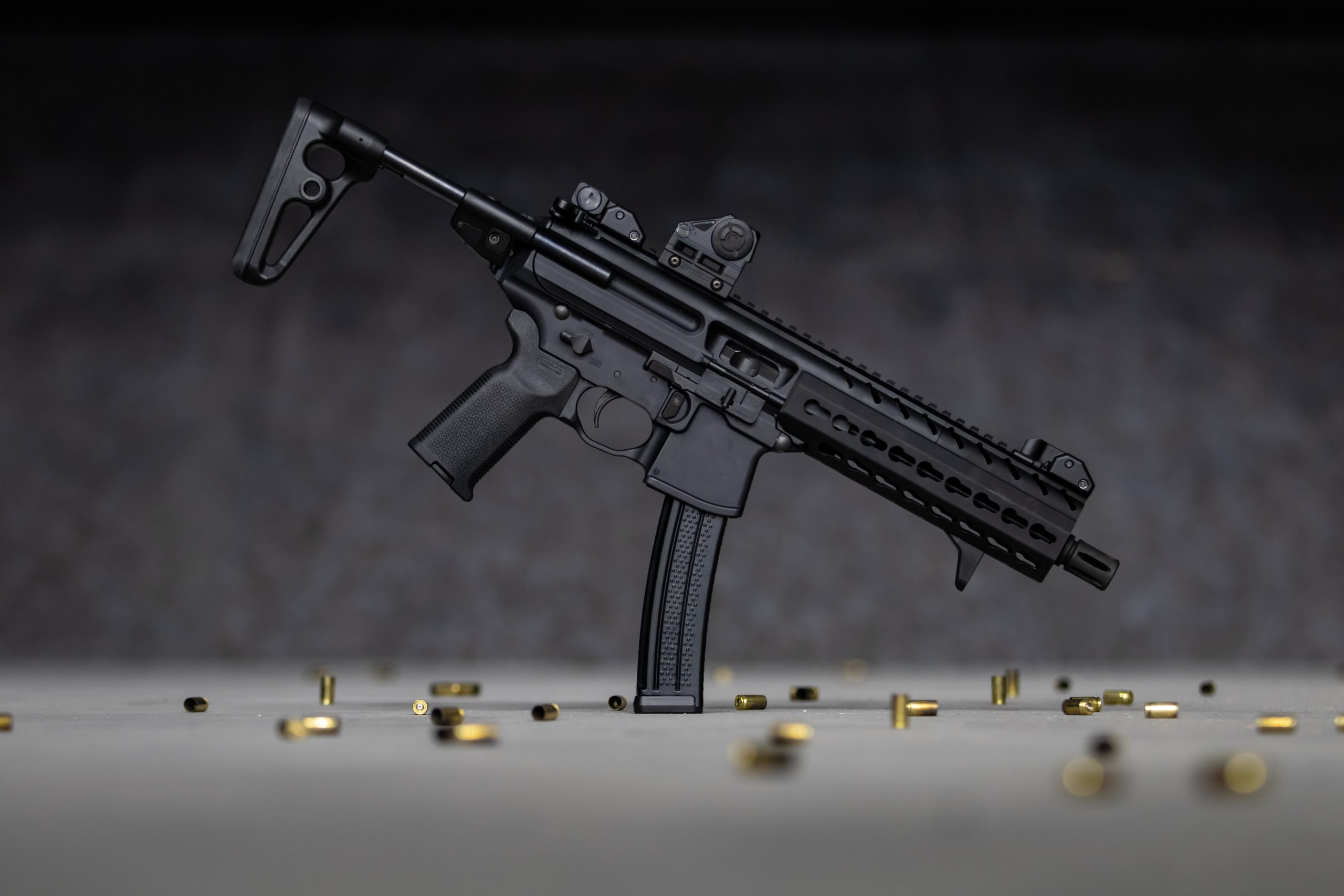

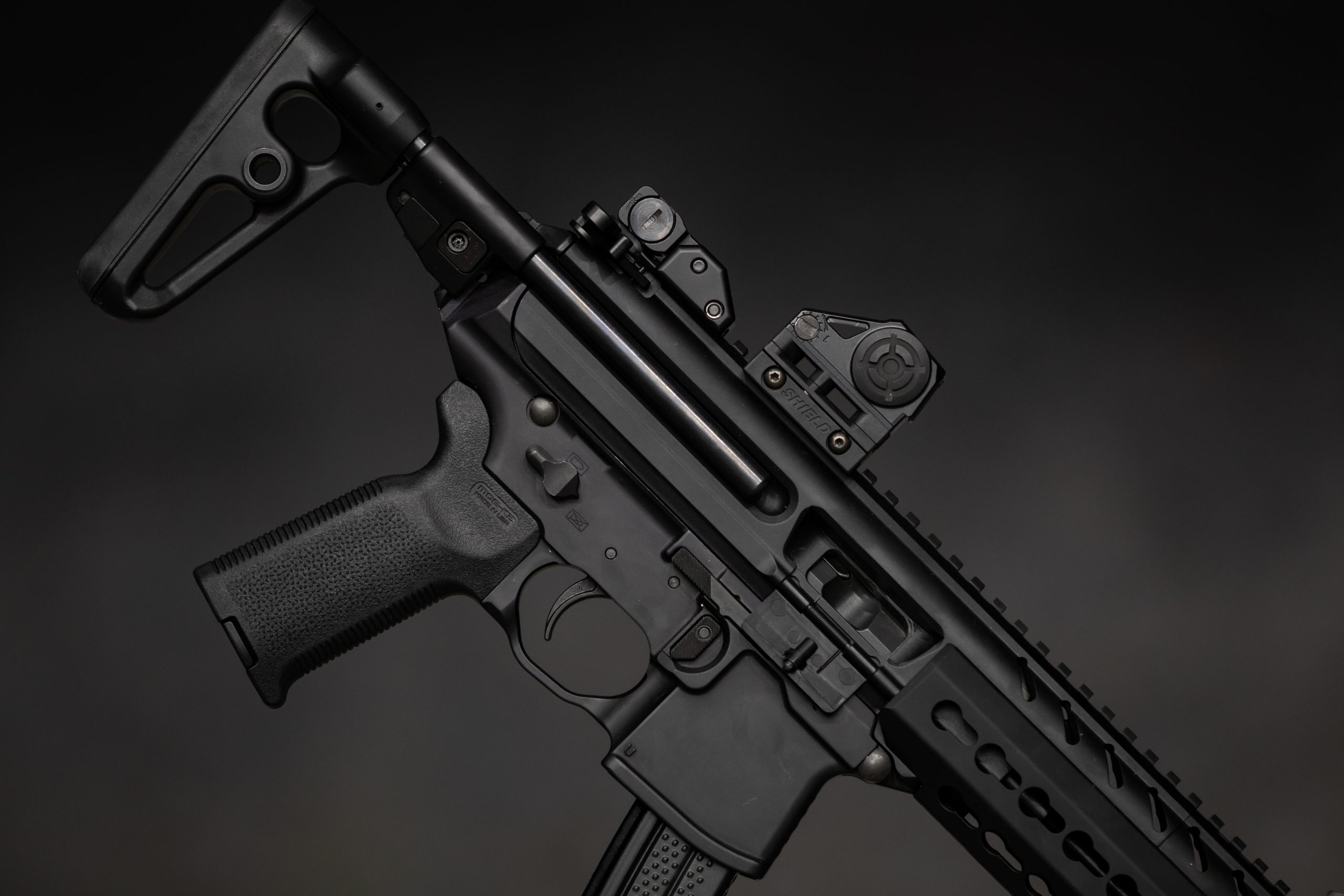

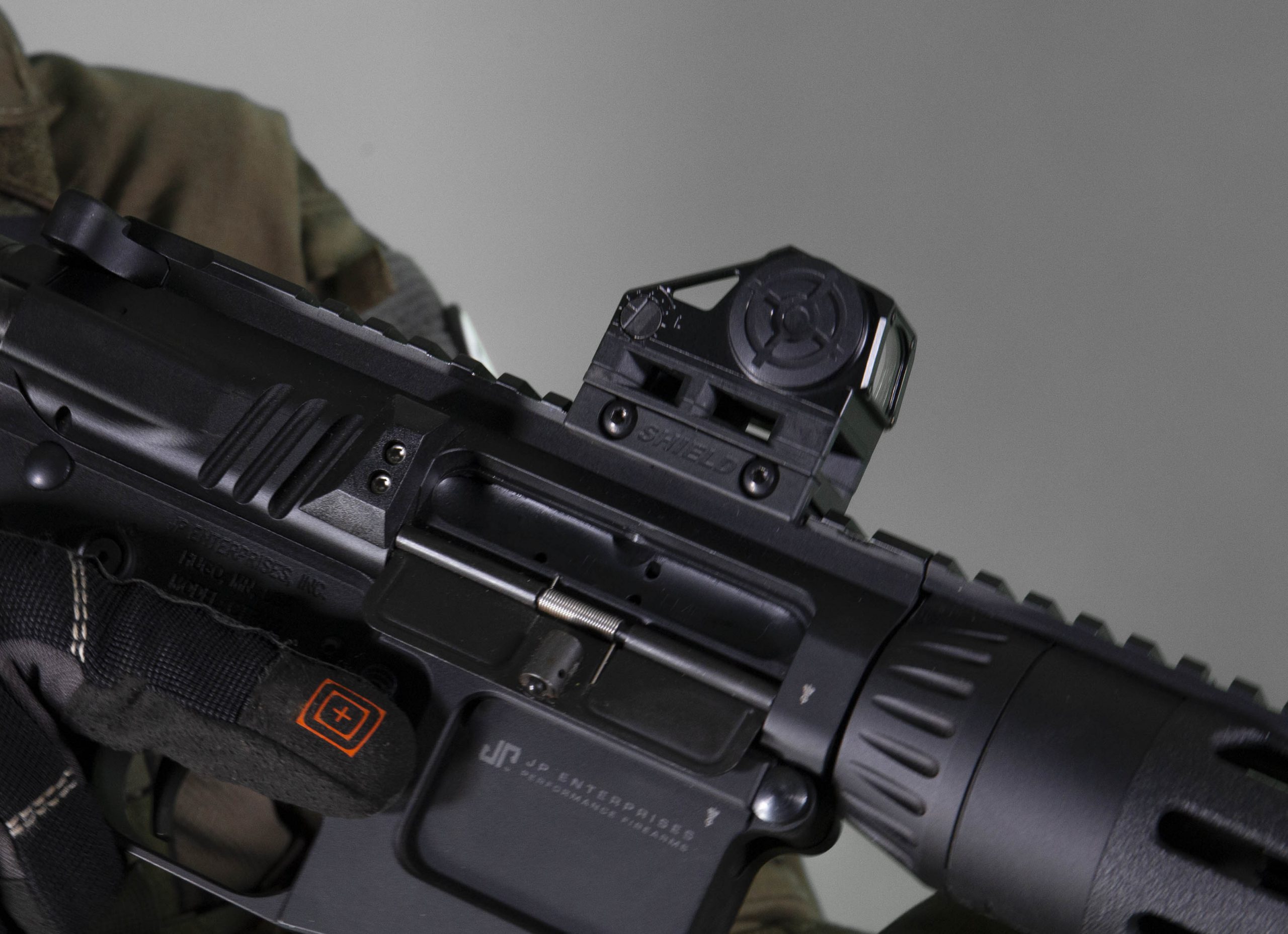

- Mounts to any Picatinny fitted weapon.
- The mechanism uses no click adjustment, making it infinitely more accurate when zeroing.
- Large, crystal-clear lens with no filters to disturb the image of the world through the sight.
- Machined from aerospace-grade aluminium to extremely precise tolerances while maintaining an attractive, modern-looking optic.
- Weighing only 61.2g(battery excluded).
- Intelligent on/off function, allowing the user to turn it back on at the previous setting.
- 12-stage manual brightness adjustment, including 3 NVG settings.
- SHIELD’s switchable interface LED, allowing the user to choose from 1 of 4 reticle options: (8MOA, 8MOA & 65MOA Ring, 2MOA, 2MOA and 65MOA Ring).
- 3-stage auto brightness adjustment, so it can always be on and ready.
- 20,000 hours in average daylight with a CR2032.

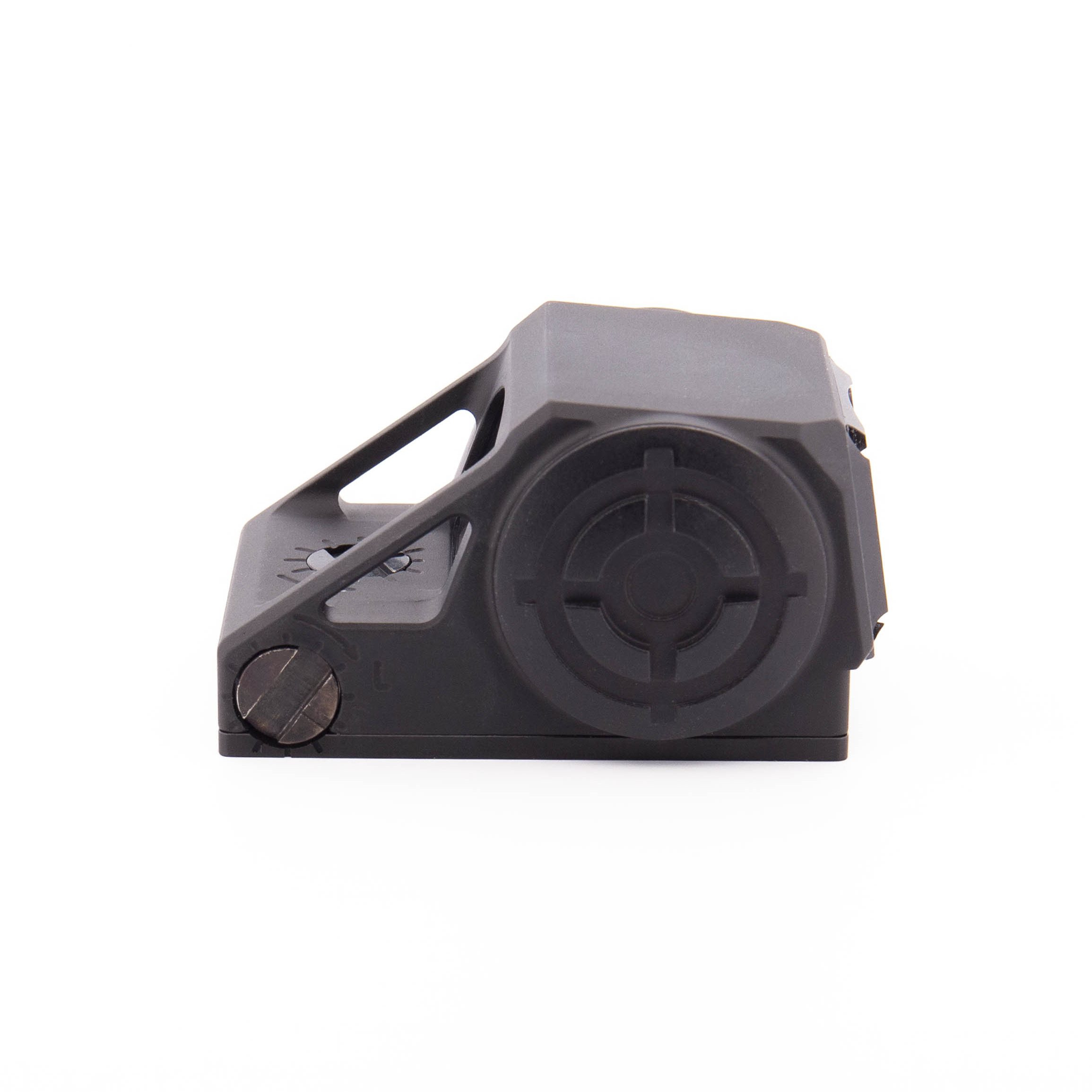

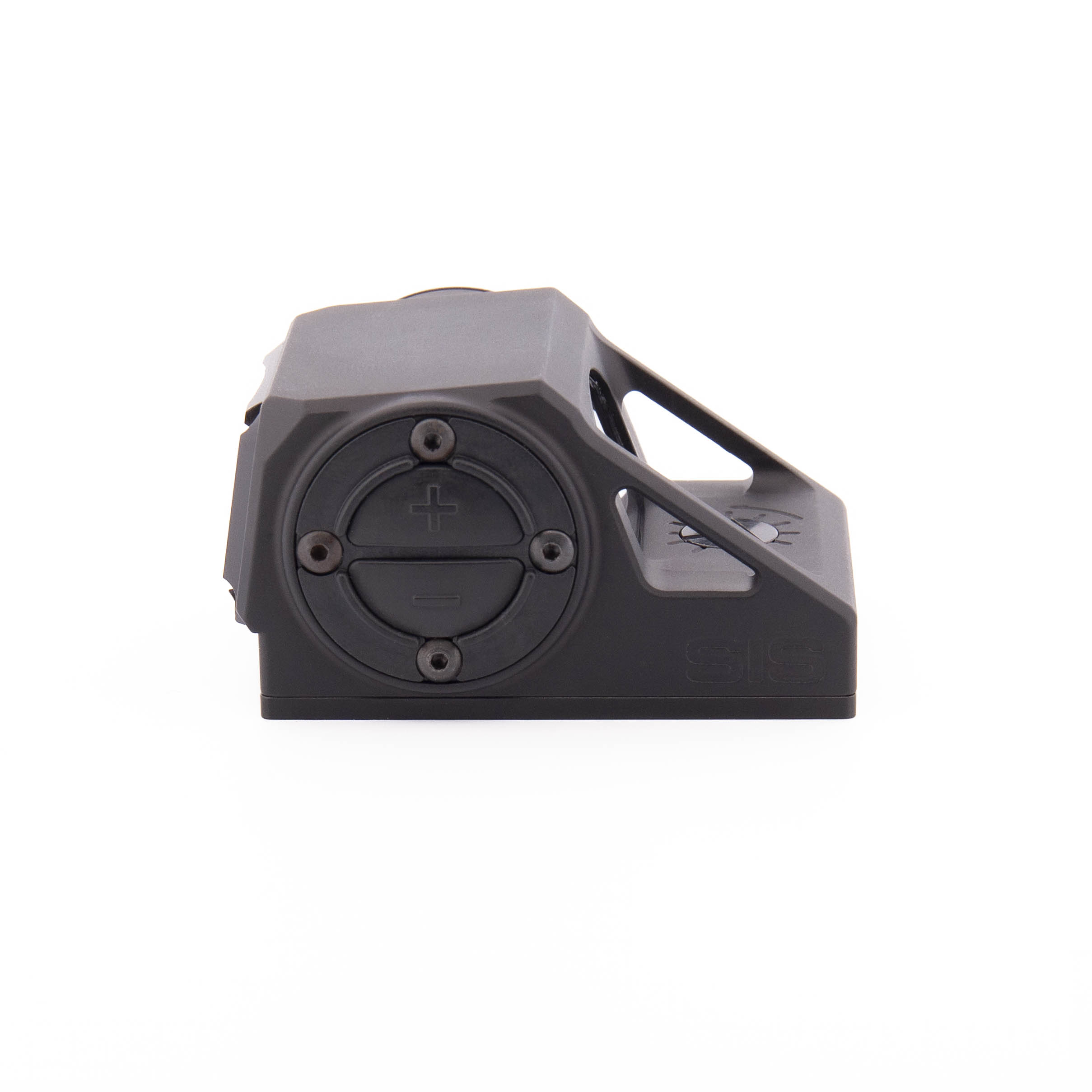

- Side accessible battery cap.
- Nitrogen-sealed housing, submersible to 30 feet for 30 minutes.

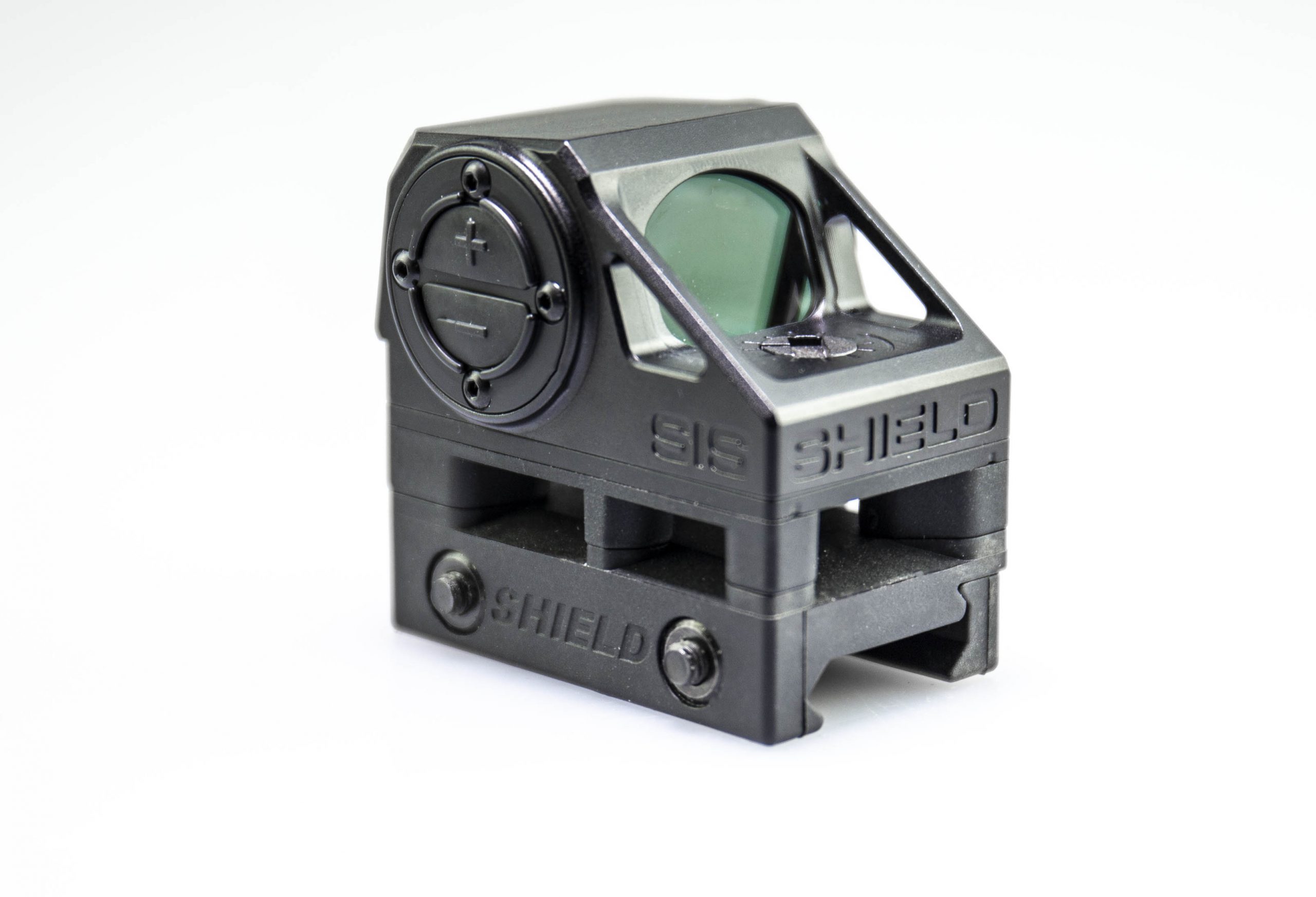

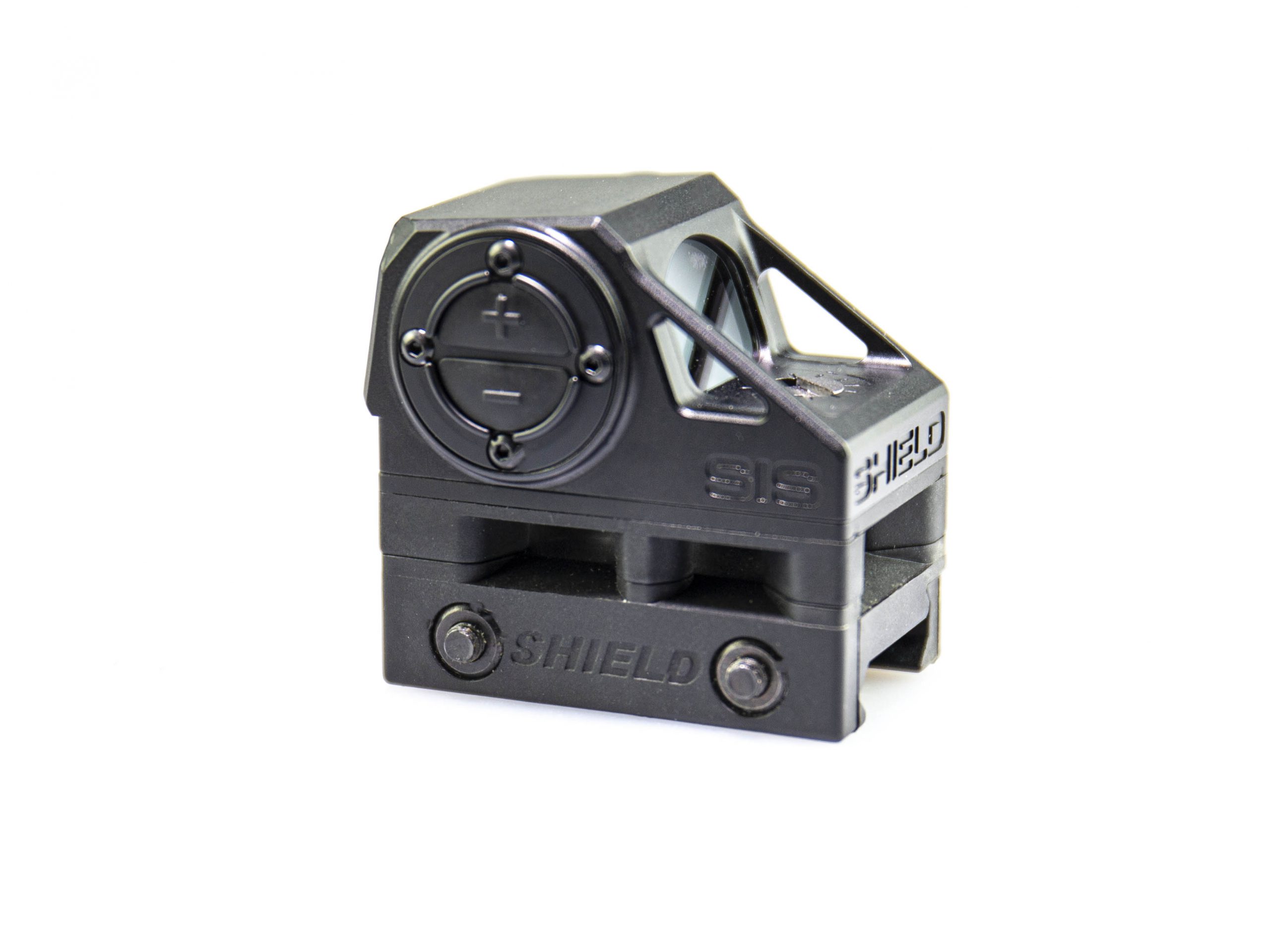

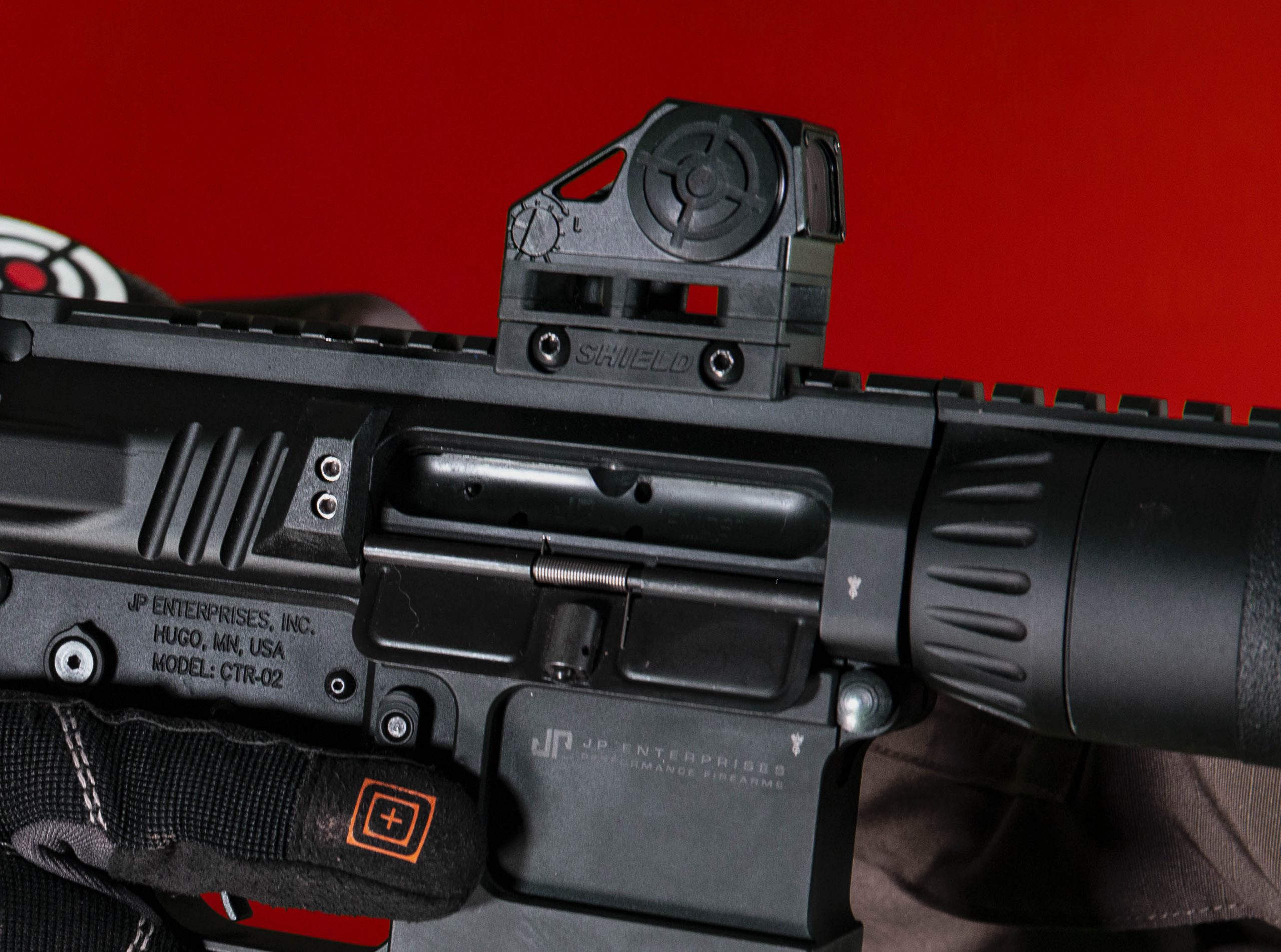

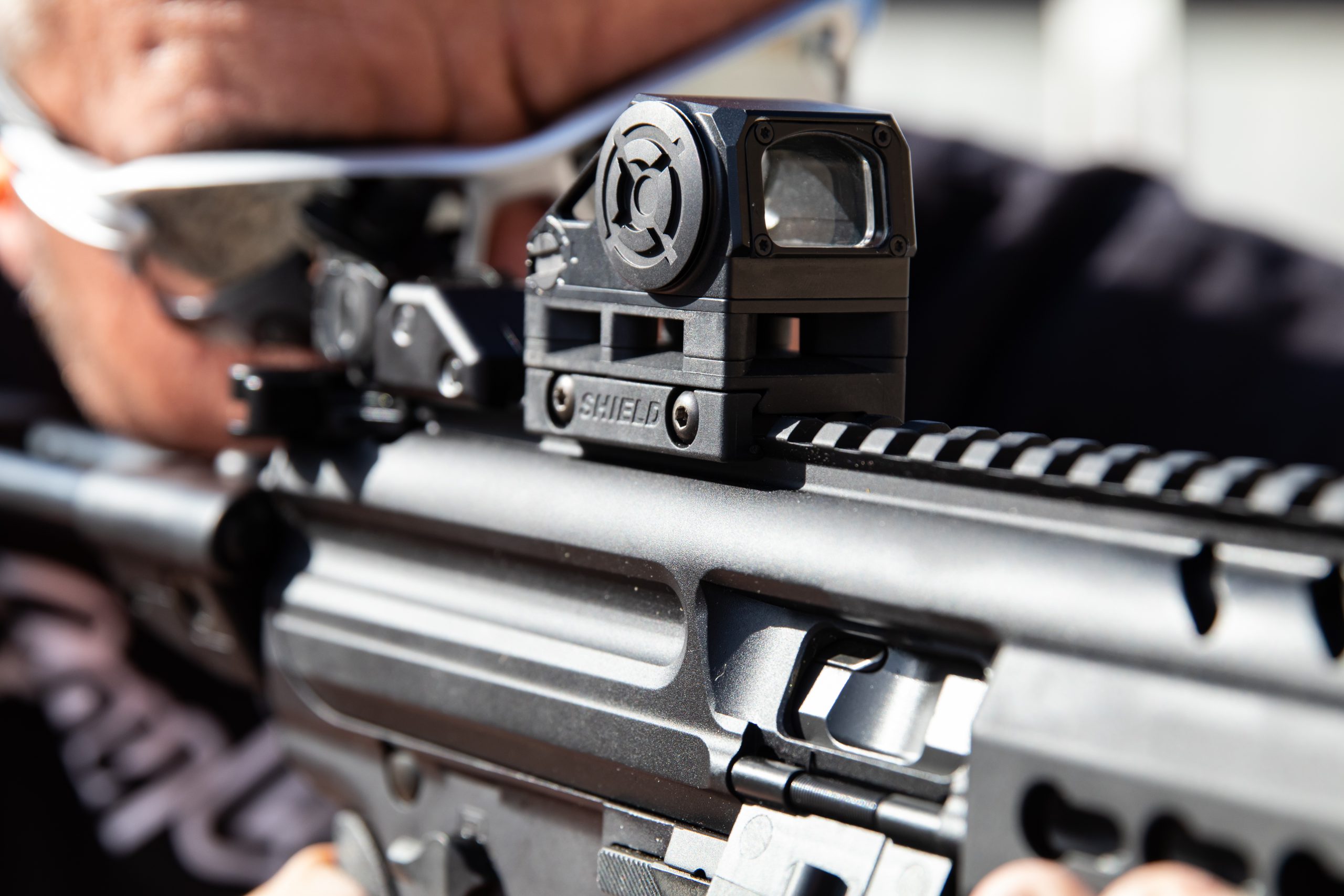

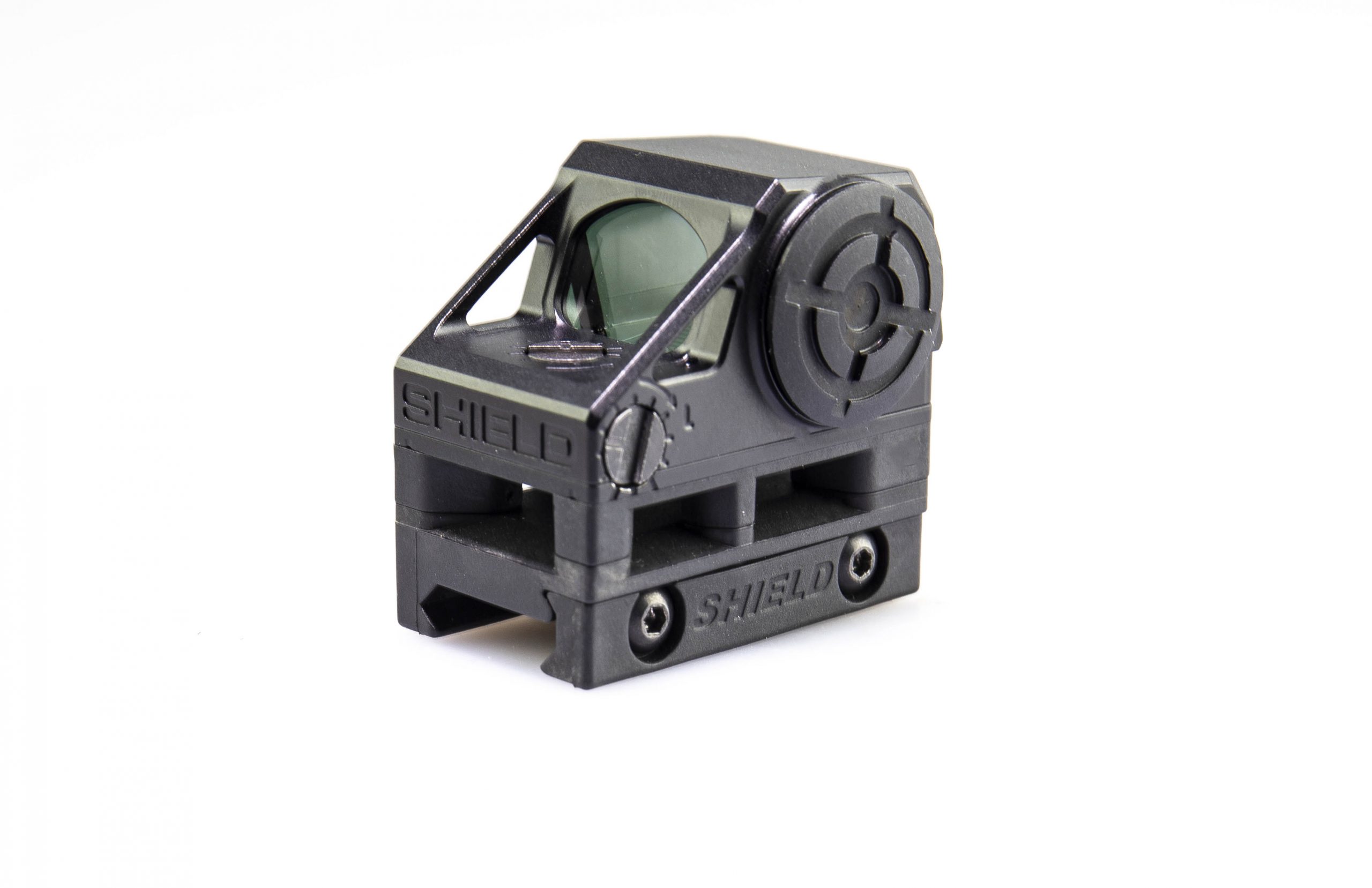

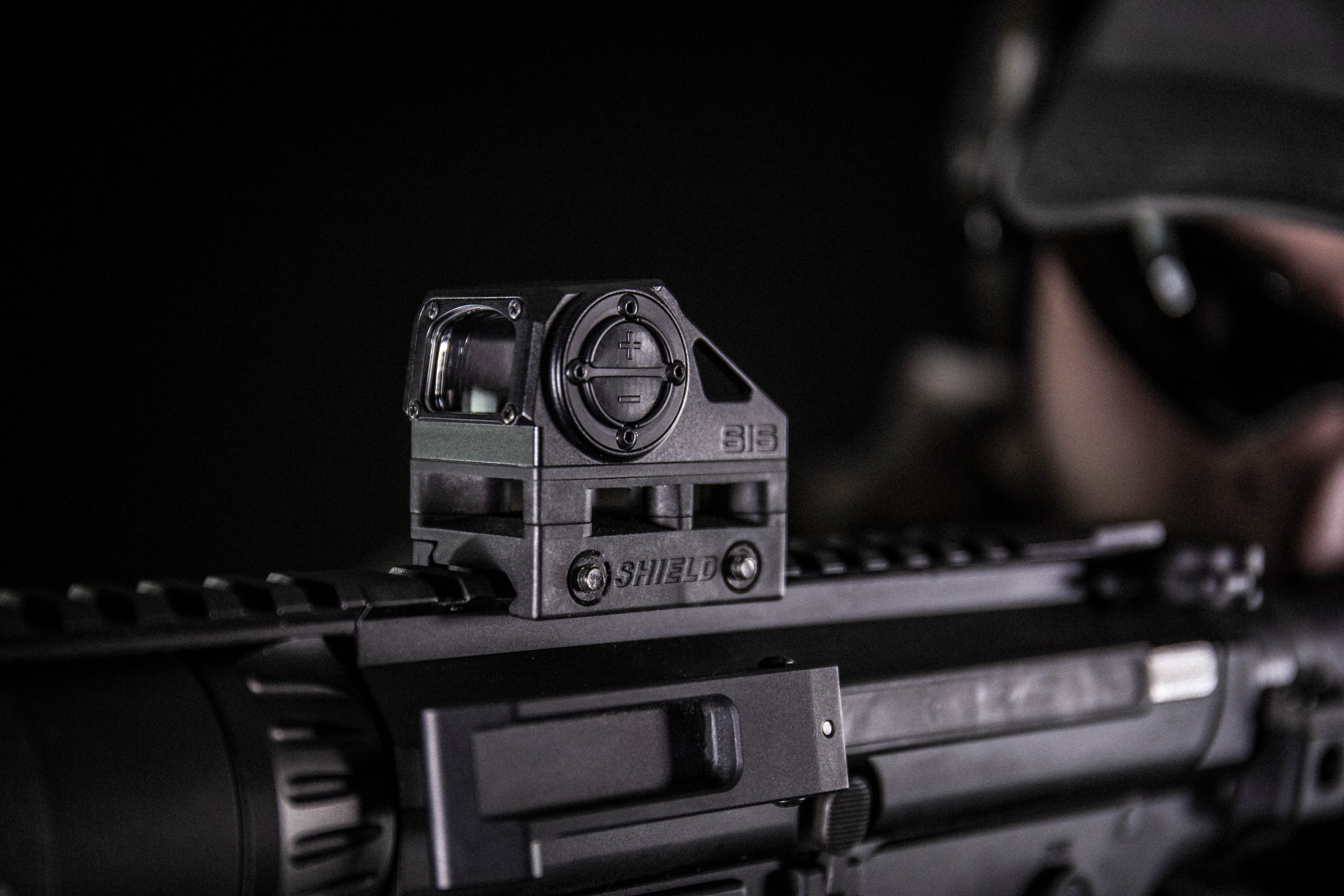

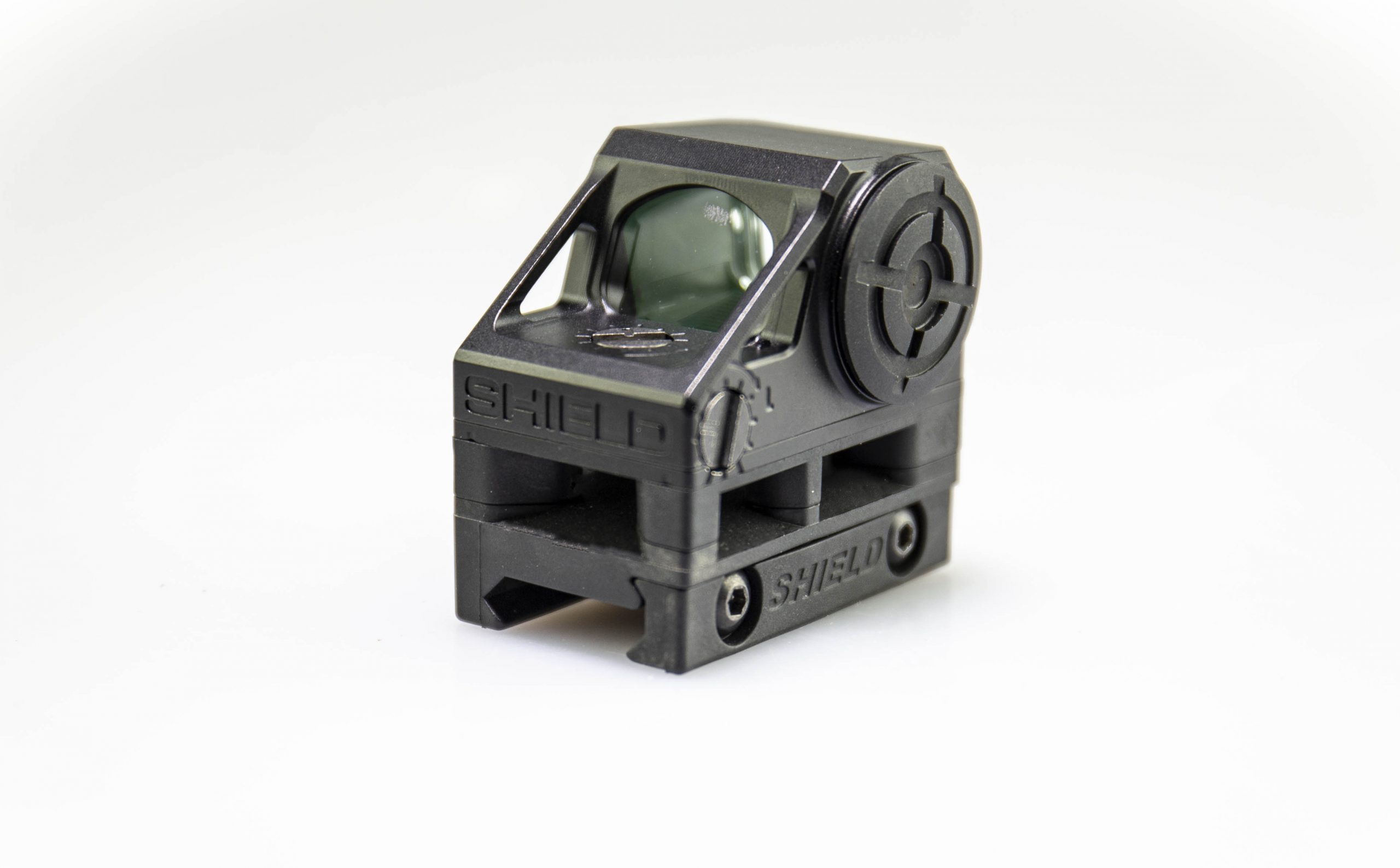

- 3 stage picatinny mount included for adjustable height mounting. Many more mounting options.

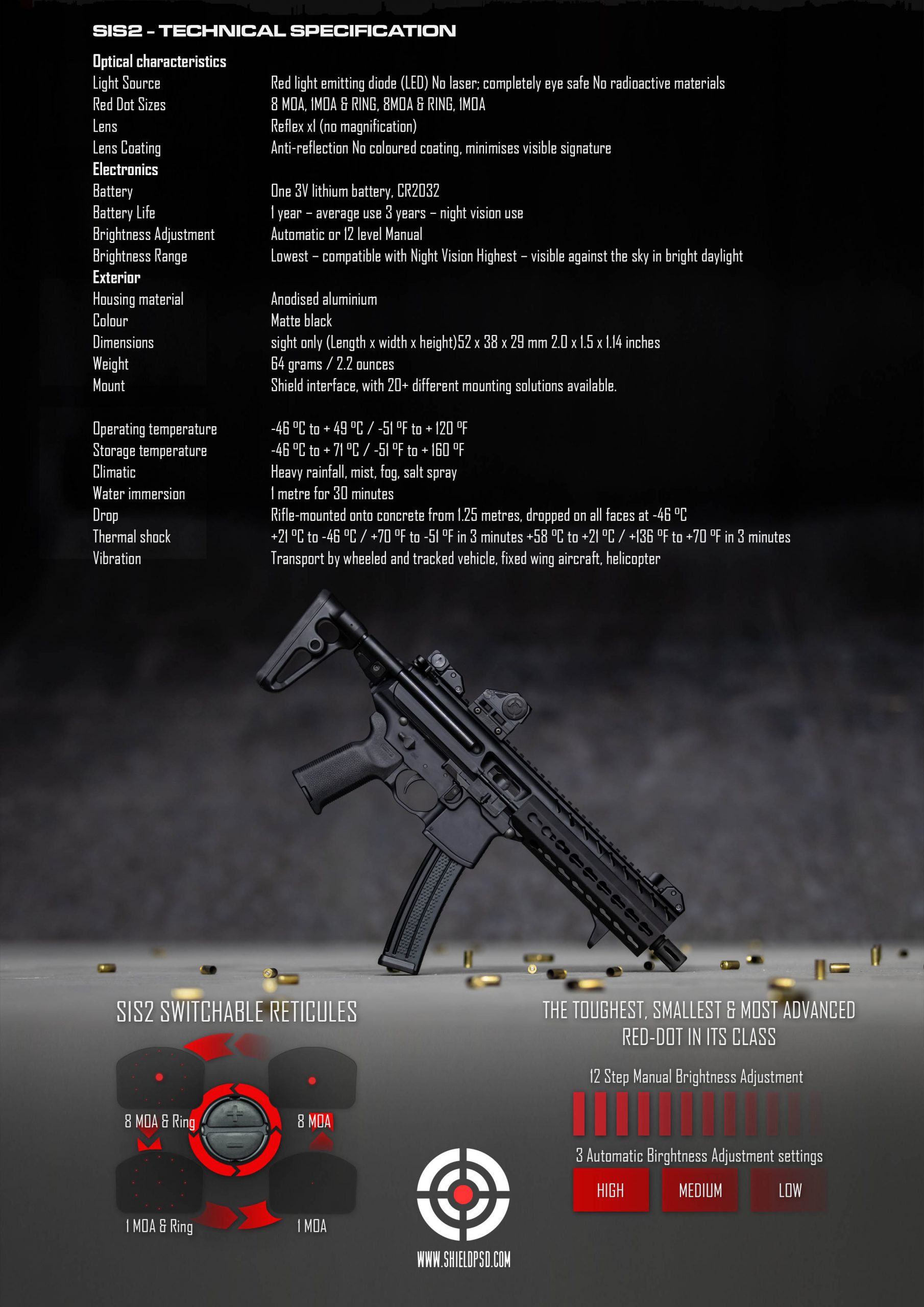

Technical Specification
Optical Characteristics
- Light Source: Red light emitting diode (LED). No laser; completely eye safe. No radioactive materials.
- Red Dot Size Options: SIS-CD (Multi-Reticle Version 2MOA, 2MOA + 65MOA Ring, 8MOA, 8MOA + 65MOA Ring).

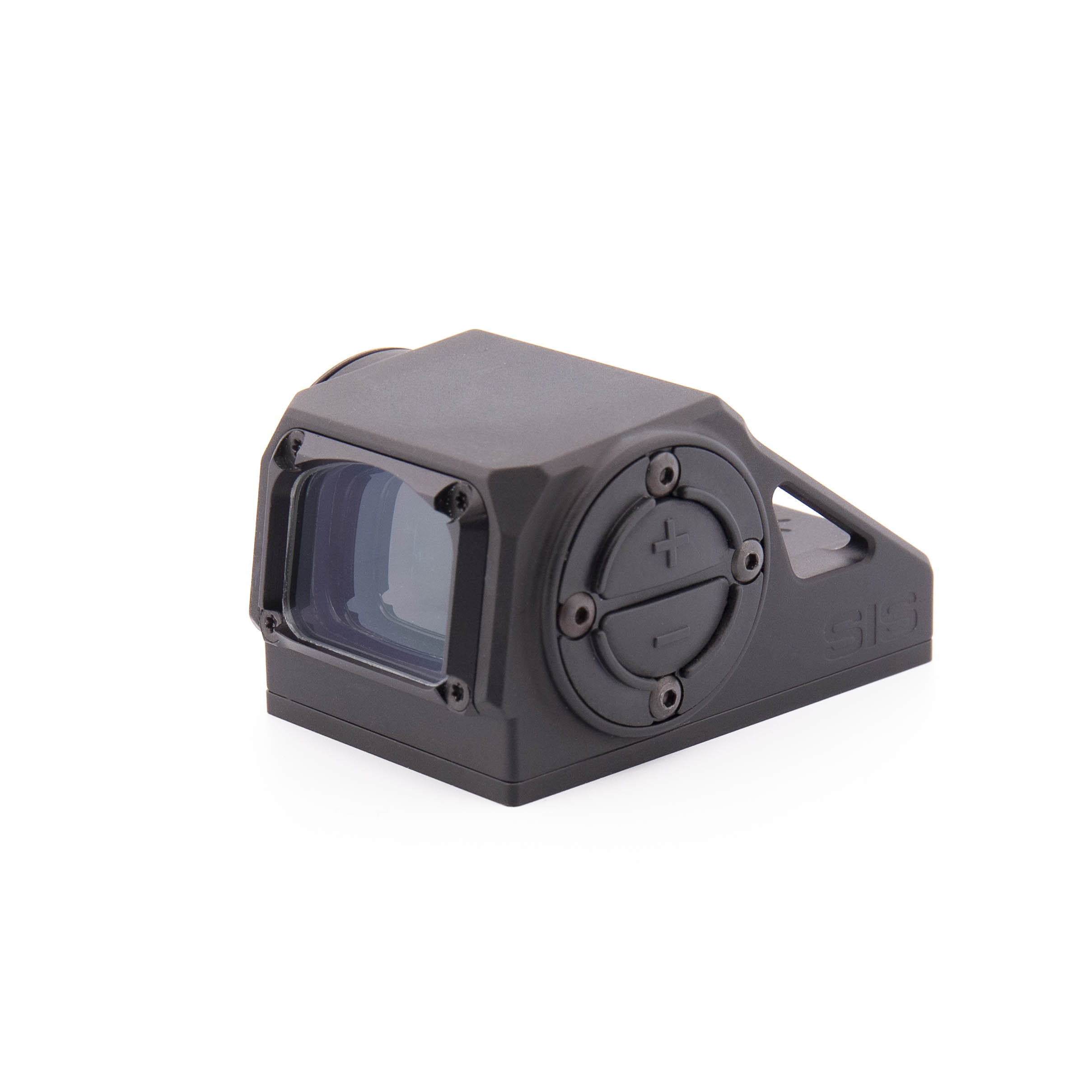

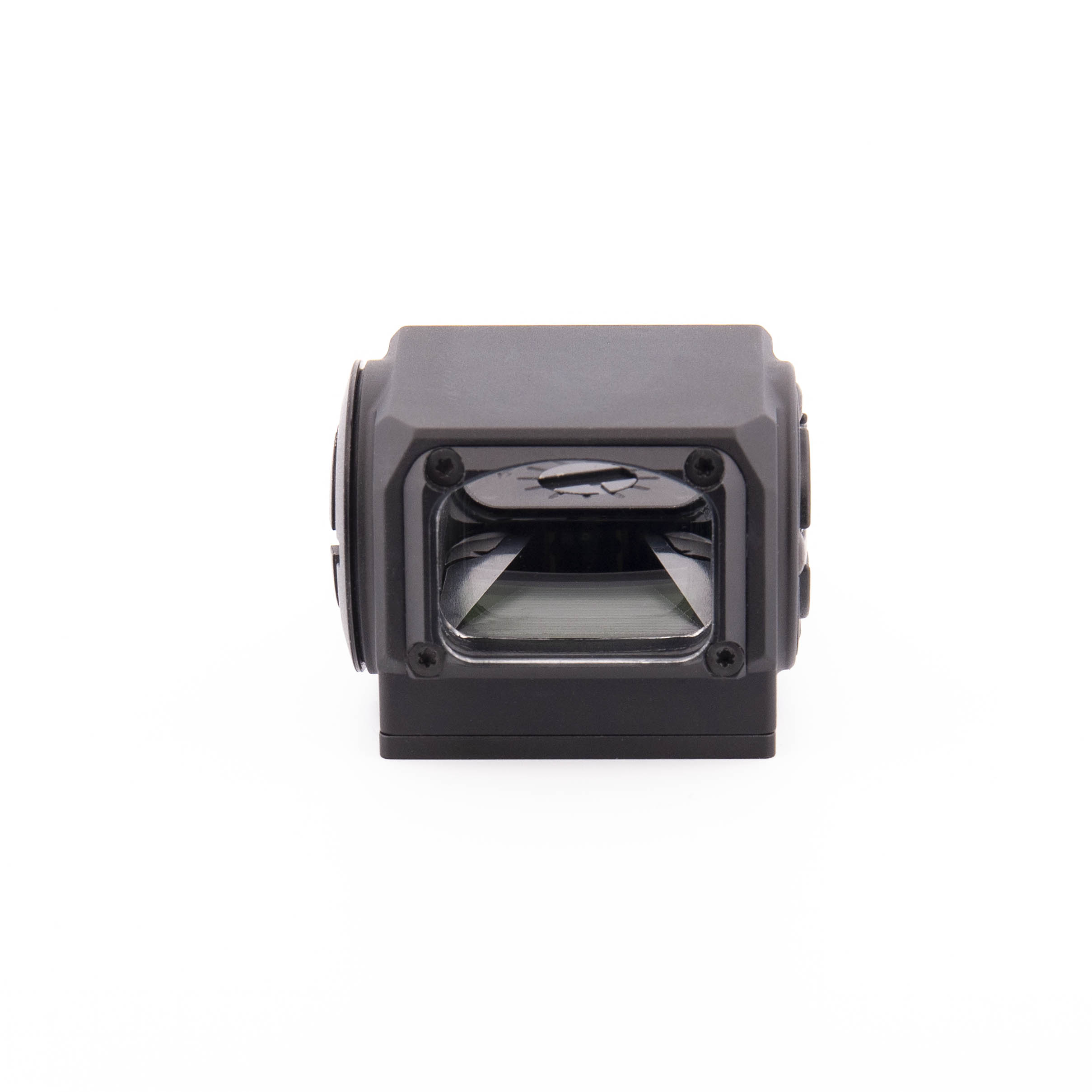

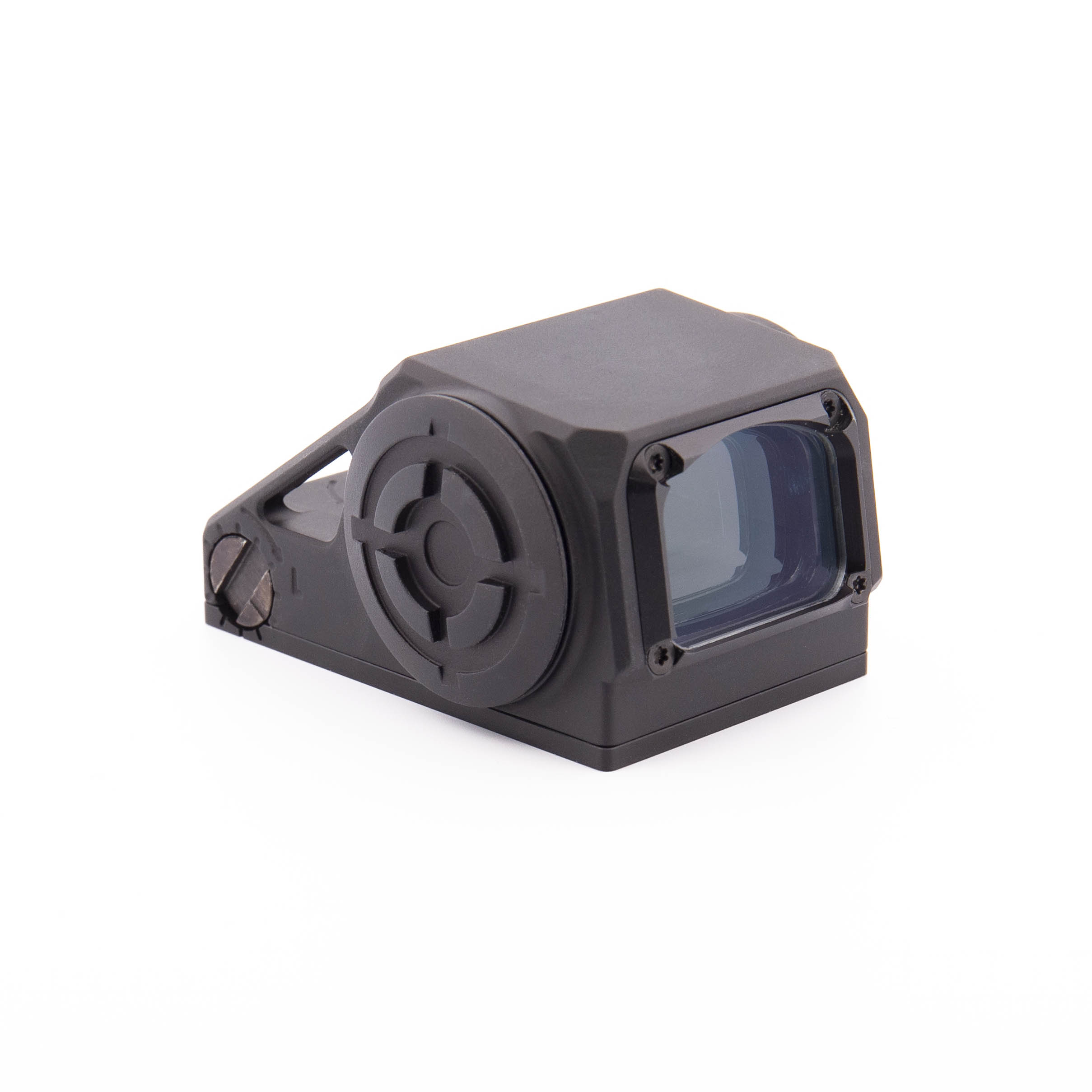

- Lens: Large, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
- Lens Coating: Anti-reflective, color-free coating minimizes visible signature.
Electronics
- Battery: One 3V lithium metal battery CR2032.
- Battery Life: 20,000 hours in average daylight with a CR2032.
- Battery Fitting: Side mounting battery.
- Brightness Adjustment: 3-stage automatic or 12-level manual.
- Brightness Range:
- Lowest: Compatible with Night Vision.
- Highest: Visible against the sky in bright daylight.
Exterior
- Housing Material: Anodized aerospace-grade aluminum (6082 T6).
- Color: Matte black.
- Dimensions:
- Sight with 2032 battery and cap (L x W x H): 49.3mm x 34.6 mm x 29.9 mm (1.65” x 1.35” x 1”).
- Weight: 61.2 grams / 2.15 ounces (excluding battery).
- Mount: Picatinny out the box.
- Water Immersion: 30 feet for 30 minutes (IP68).
The Advanced Mini Sight is the first enclosed emitter optic from SHIELD that retains our famous SHIELD footprint, offering co-witness capability with standard height iron sights. Its origins are born from two of our existing products, both tested in the military and carrying NSN numbers after meeting DEFSTAN International requirements: SIS (NSN-1240-99-176-8362) and RMSw (NSN-1240-99-490-5863).
