RMSw – Reflex Minisight Waterproof – 8 MOA

$529.99 ex VAT

SKU: RMSW-8MOA-GLASS Categories: , , , Tags: , , , , , , ,

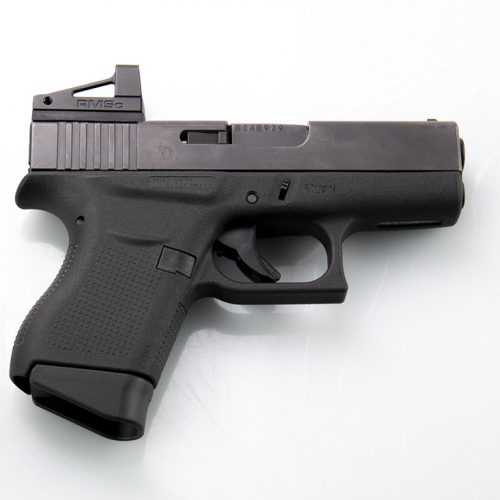

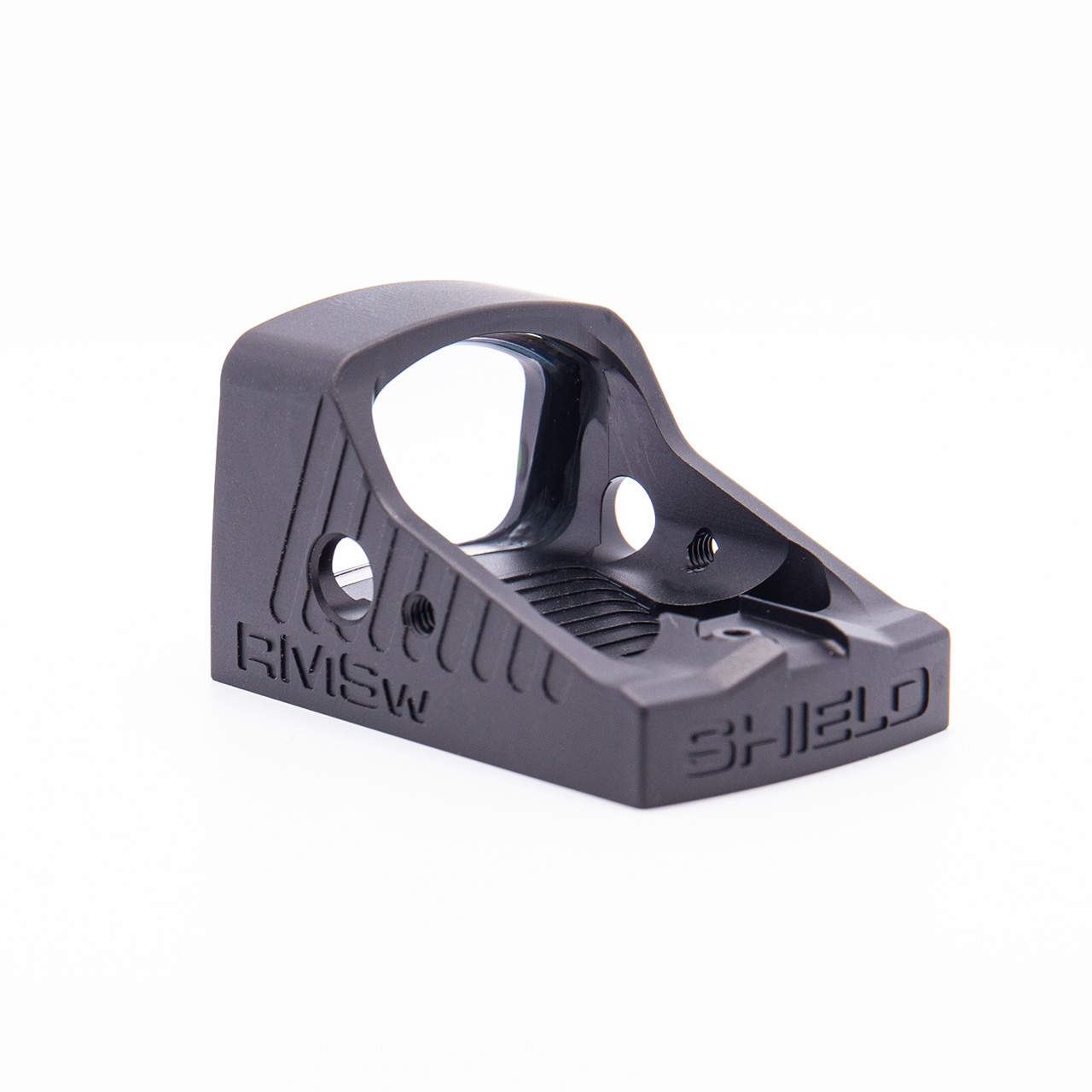

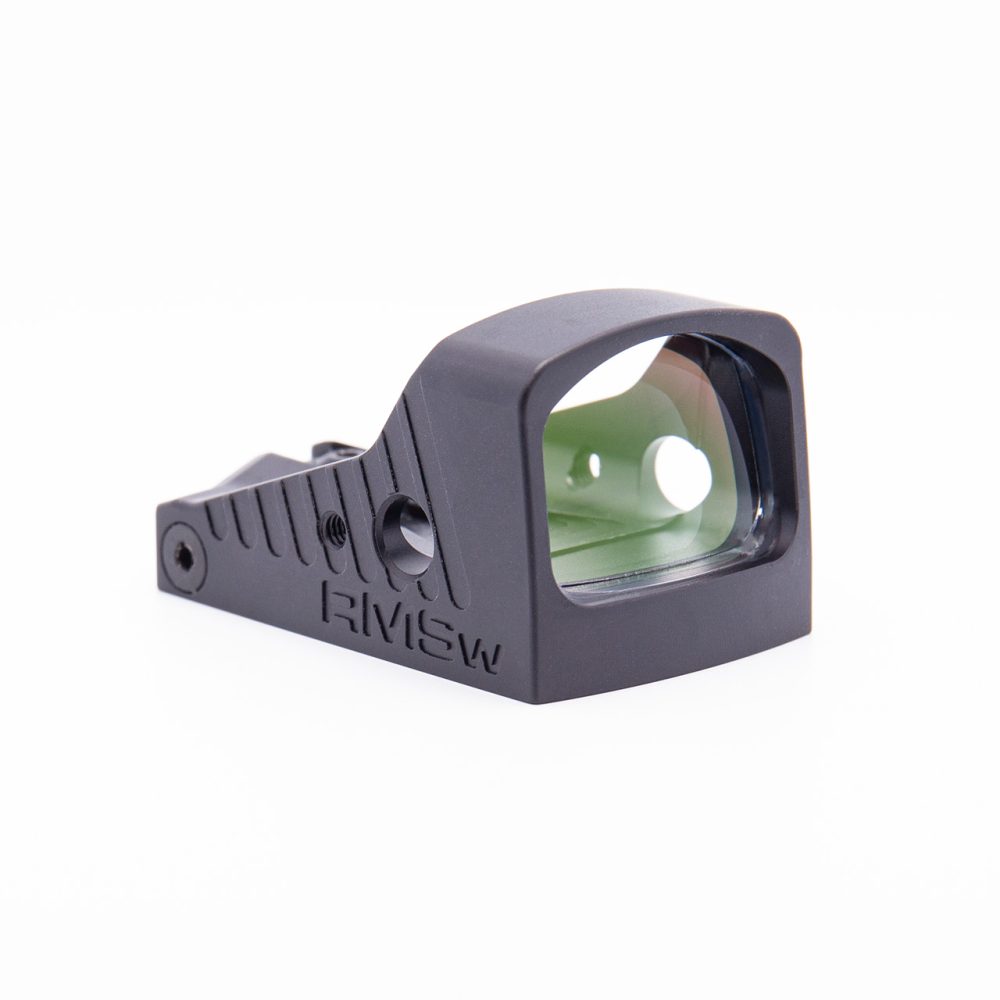

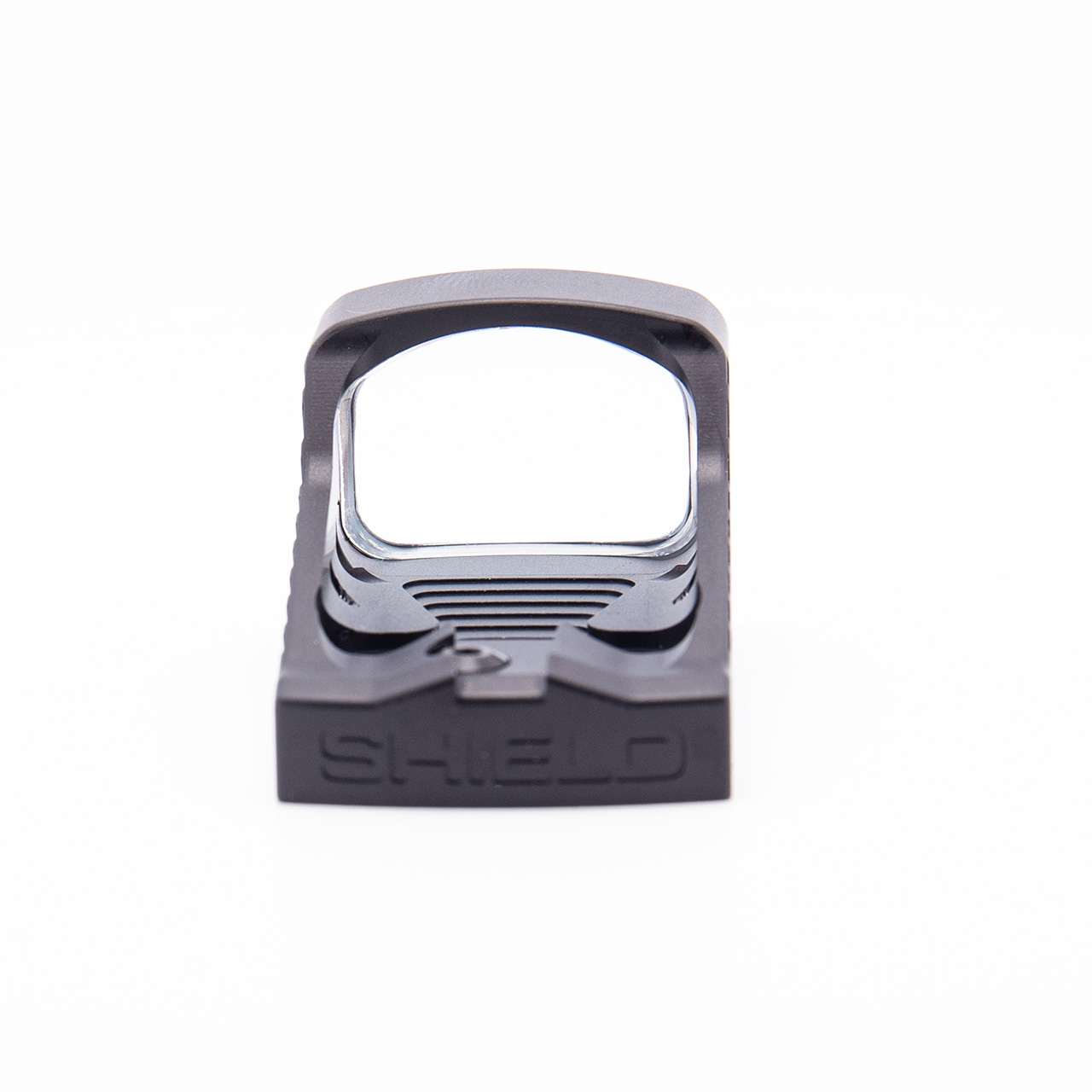

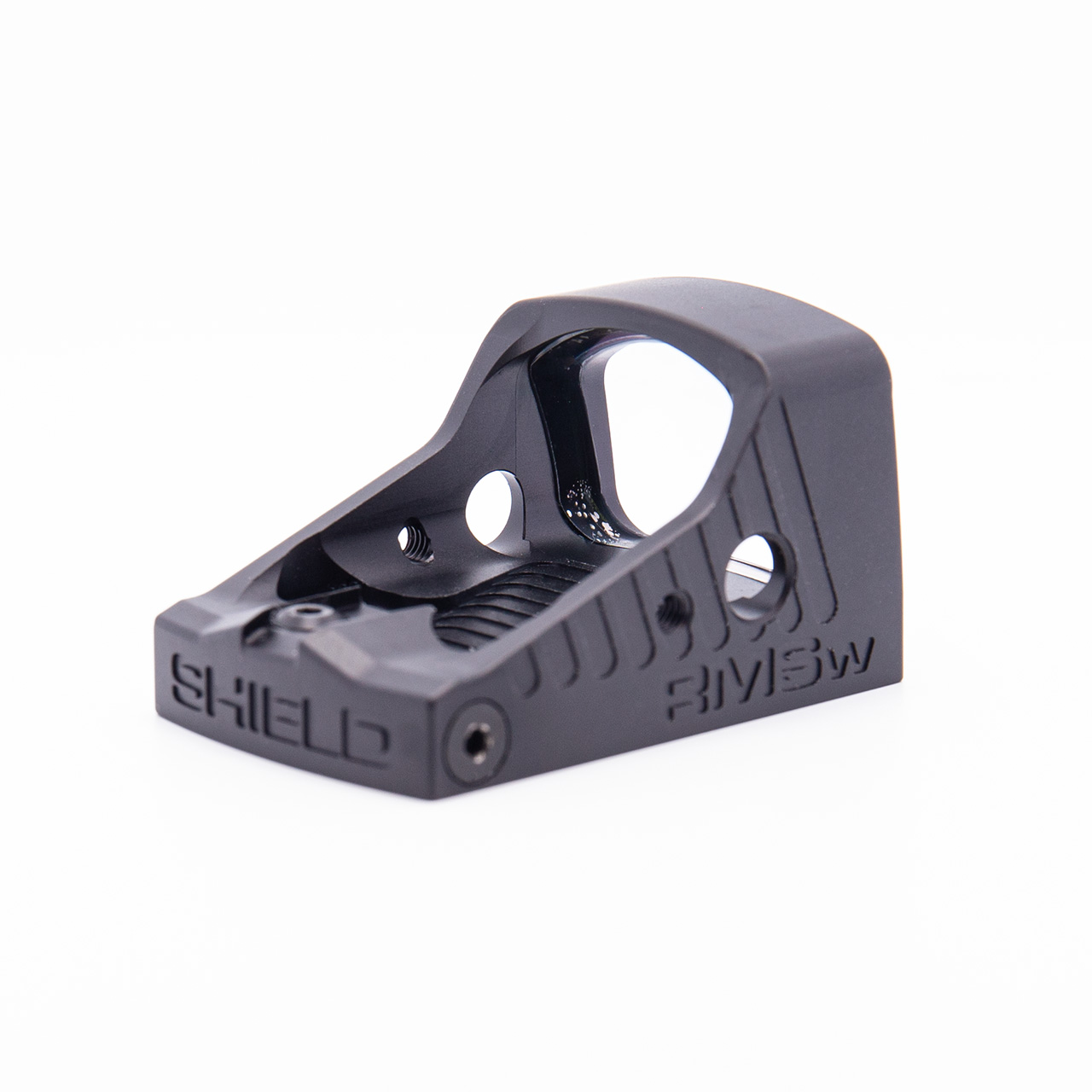

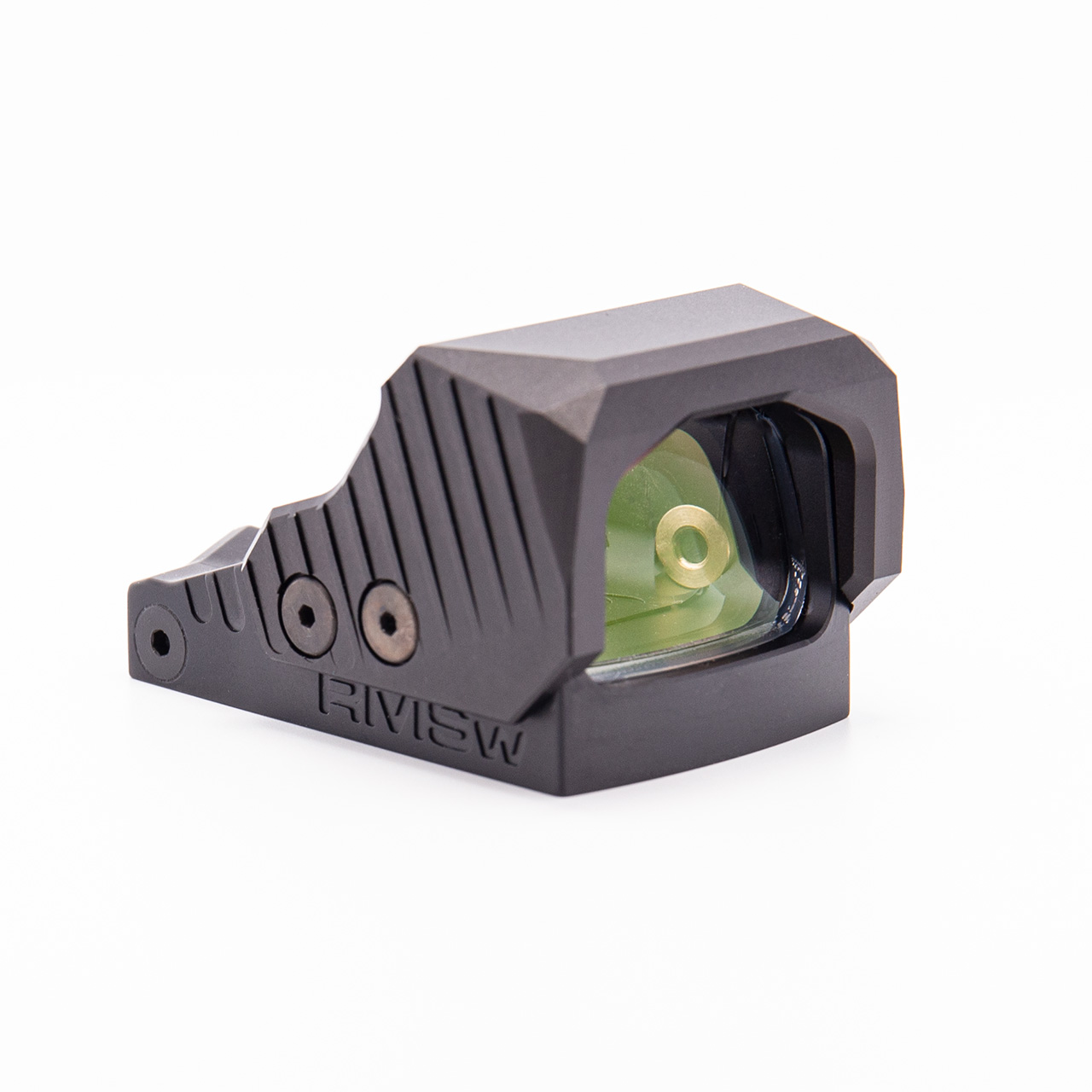

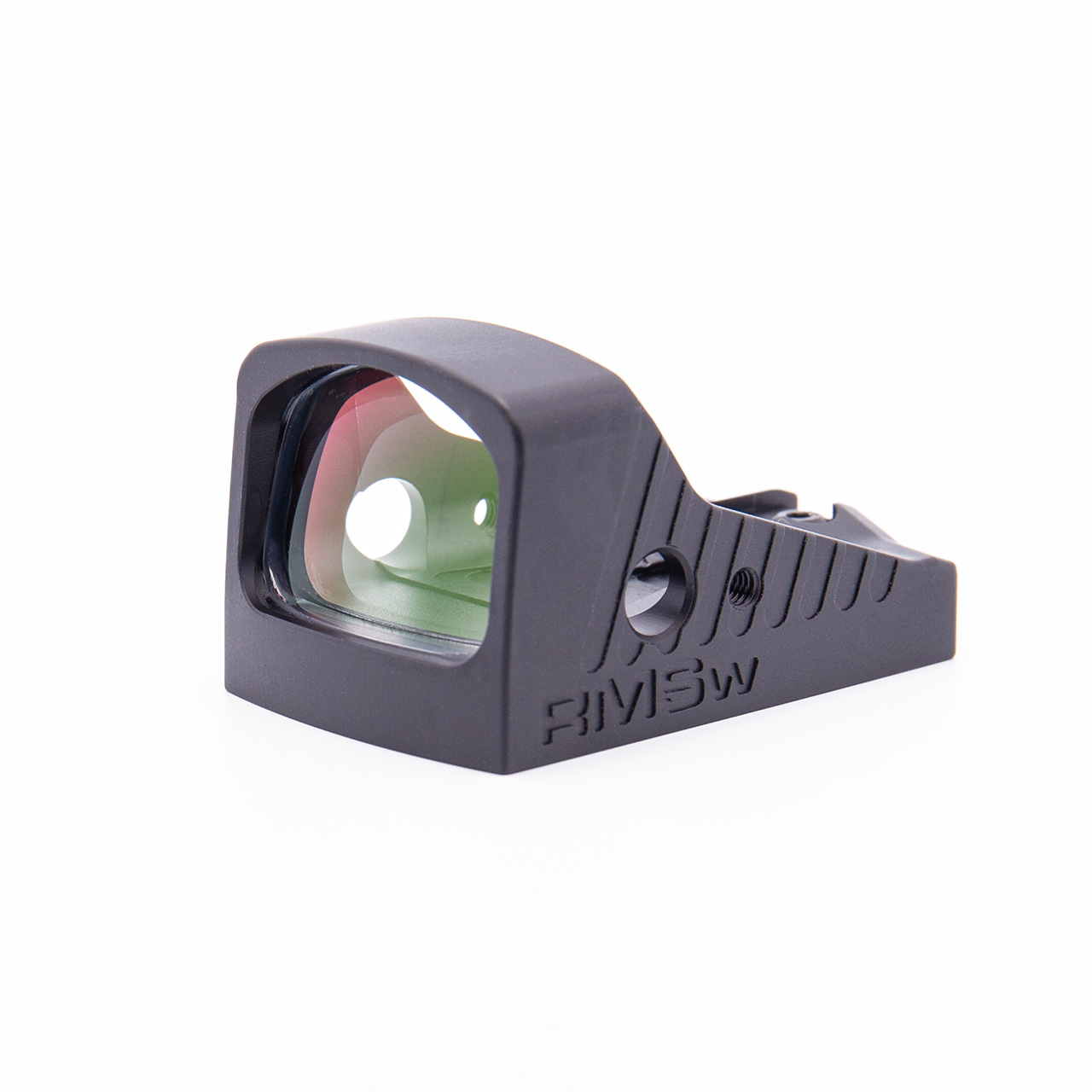

The RMSw is a robust, waterproof red dot sight built to withstand harsh environments.  It features a gasket-sealed design, enabling it to remain watertight at depths up to 20 meters for over 30 minutes without the need for additional mounting plates. A redesigned frame and reinforced housing enhance durability and boasts a crystal-clear glass lens for superior scratch resistance. The RMSw maintains the standard SHIELD footprint, ensuring compatibility with a wide range of firearm slides.  SHIELD also offers over 40 mounting solutions for versatile firearm integration.

Available on back-order

Do you have the right Optics Ready screw set?

Some optics ready guns require a different set of screws. Our sight retail packaging includes 2x M4x8mm & 2x M4x10mm screws. If you require any others please select below.

Description

RMSw Sight 8MOA (6.5MOA)

  • Mounts to SHIELD’s famous footprint.
  • Utilizes SHIELD’s patented mechanism, enabling co-witnessing with standard iron sights, considerably reducing training times and costs.
  • Gasket sealed battery compartment.
  • The mechanism uses no click adjustment, making it infinitely more accurate when zeroing.
  • D-shaped, crystal-clear lens with no filters to disturb the image of the world through the sight.
  • Machined from aerospace-grade aluminium to extremely precise tolerances while maintaining an attractive, modern-looking optic.
  • Weighing only 21g (battery excluded).
  • Auto brightness adjustment, so it can always be on and ready.
  • 20000 hours in average daylight with a CR2032.
  • Water immersion 20 meters for over 30 minutes (IP68).

Support

    RMSw Instruction Manual – English

Technical Specification

Optical Characteristics

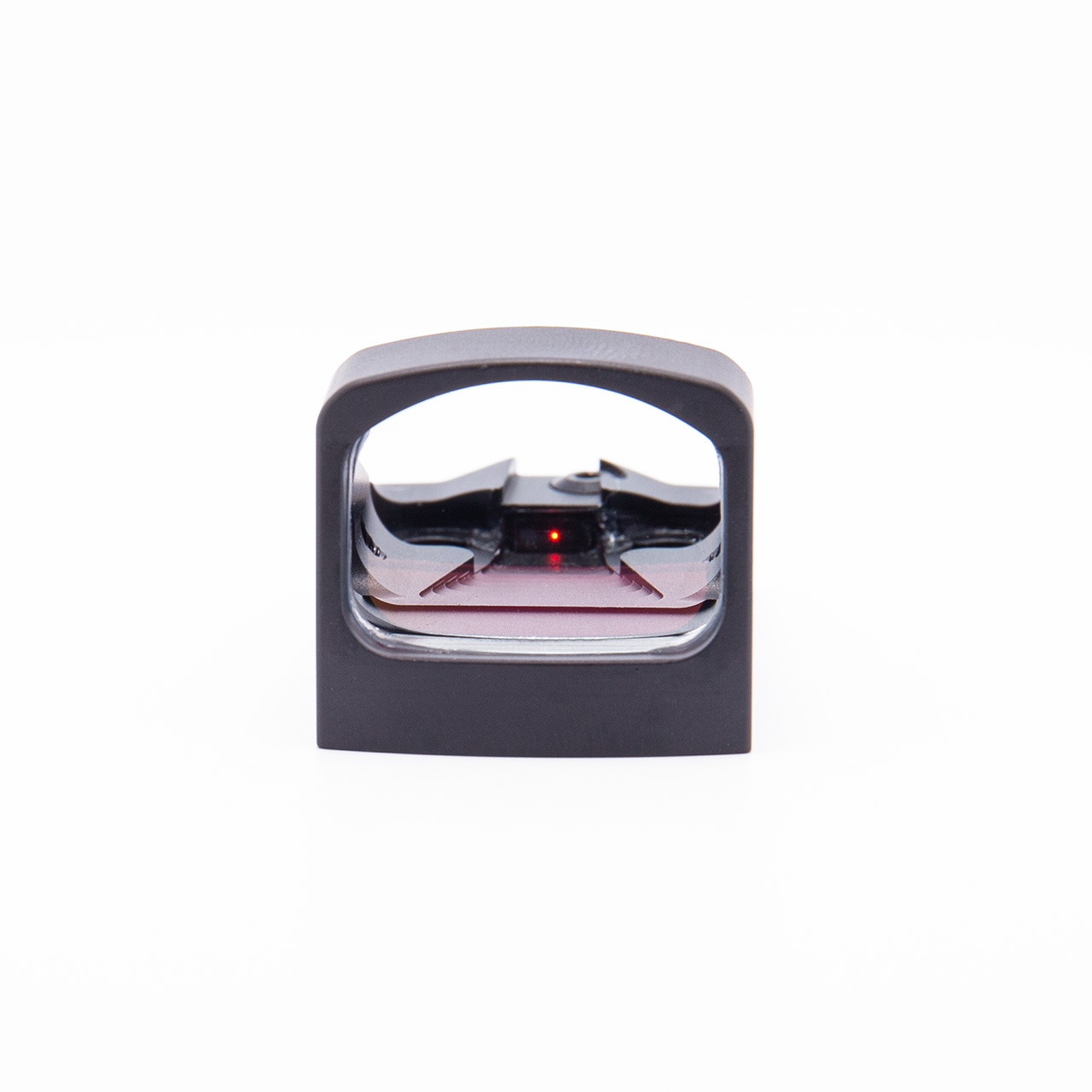

  • Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
  • Red Dot Size Options: 4 MOA and 8 MOA.
  • Lens: D-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Lens Coating: Hard coating with anti-reflective, color-free coating that minimizes visible signature.

Electronics

  • Battery: One 3V lithium metal battery, CR2032.
  • Battery Life: 20000 hours in average daylight with a CR2032.
  • Battery Fitting: Underneath gasket sealed.
  • Brightness Range:
  • Lowest: Compatible with Night Vision.
  • Highest: Visible against the sky in bright daylight.

Exterior

  • Housing Material: Aluminum.
  • Color: Matte black.
  • Dimensions: Sight only (L x W x H): 40.8 mm x 25.35 mm x 22.8 mm (1.61″ x 1.0″ x 0.89″).
  • Weight: 21 grams / 0.75 ounces (excluding battery).
  • Mount: The SHIELD footprint – 100+ mounting solutions.
  • Water Immersion: 20 meters for over 30 minutes (IP68).

Accessories - What's in the Box

SHIELD RMSw Sight

  • 1 x Mini dial
  • 1 x CR2032 battery
  • 1 x 1° shim
  • 1 x RMSw Gasket Seal
  • 2 x Button head M4x8mm screws
  • 2 x Button head M4x10mm screws
  • 1 x 1.5 Hex wrench tools
  • 1 x 2.5 Hex wrench tools
  • 4 x 0.5mm Nylon washers
  • 1 x Reece’s Law Battery Cover
  • 2 x Battery stickers
  • 2 x Shield Target Stickers
  • 1 x RMSwCover
