Description

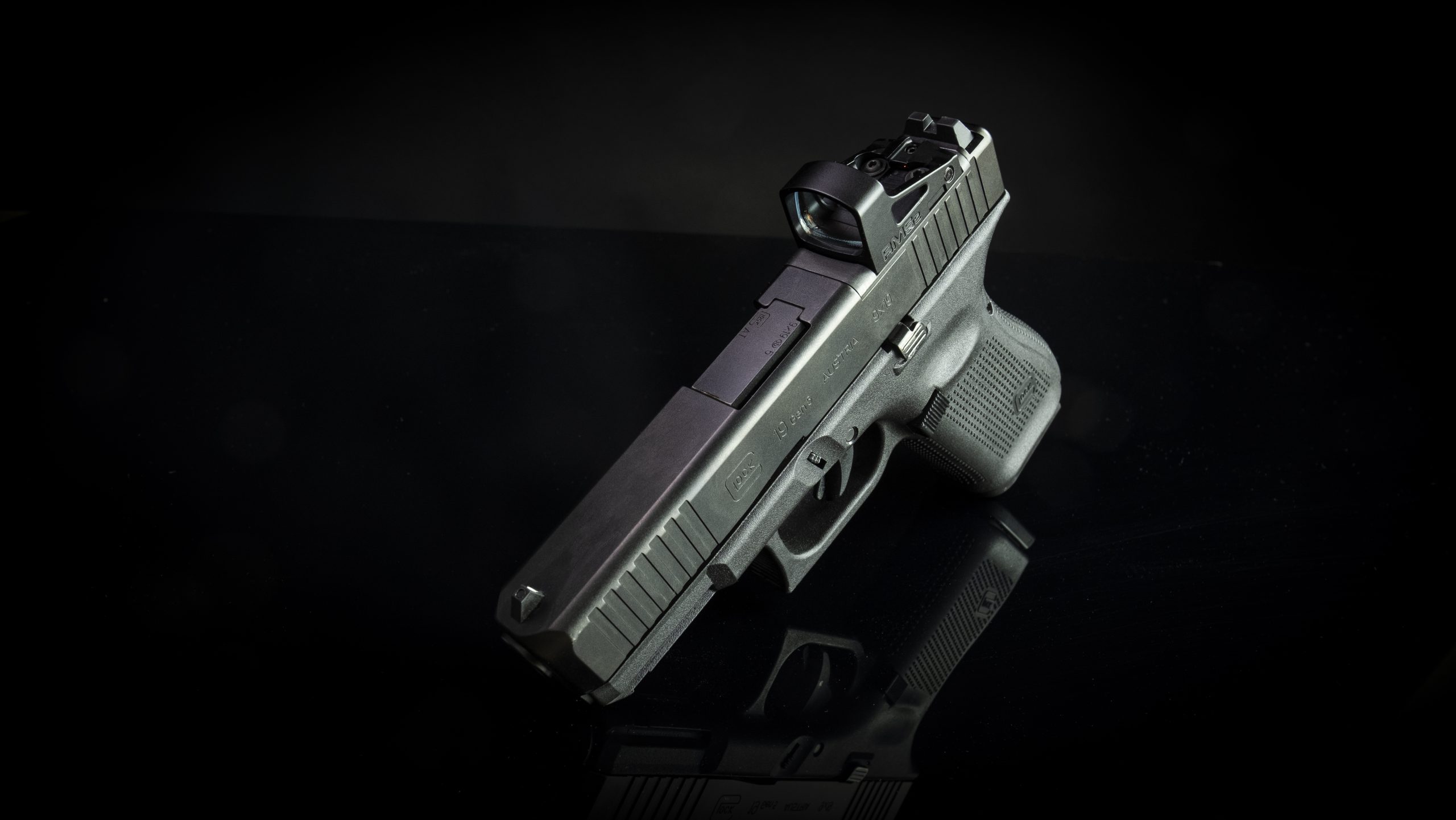

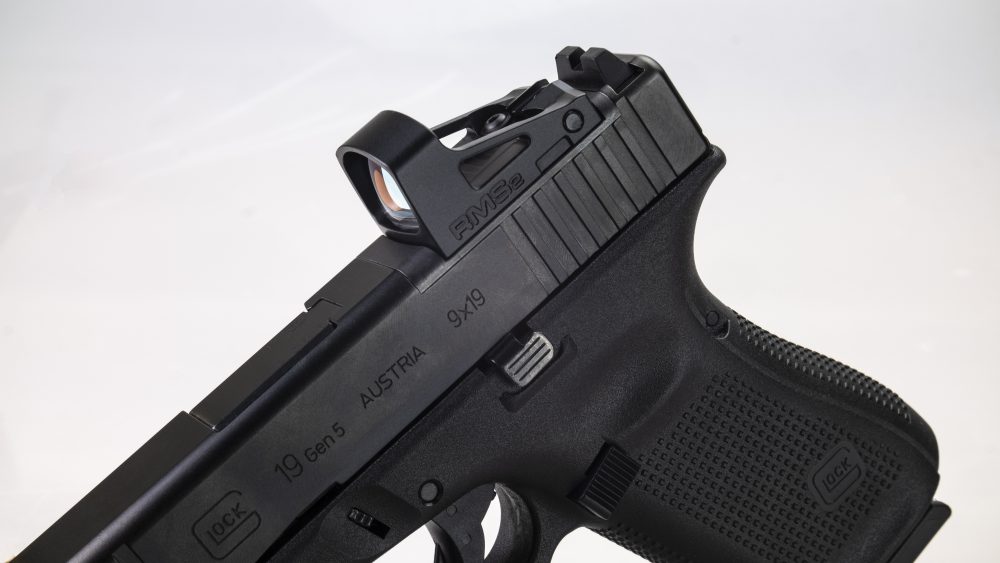

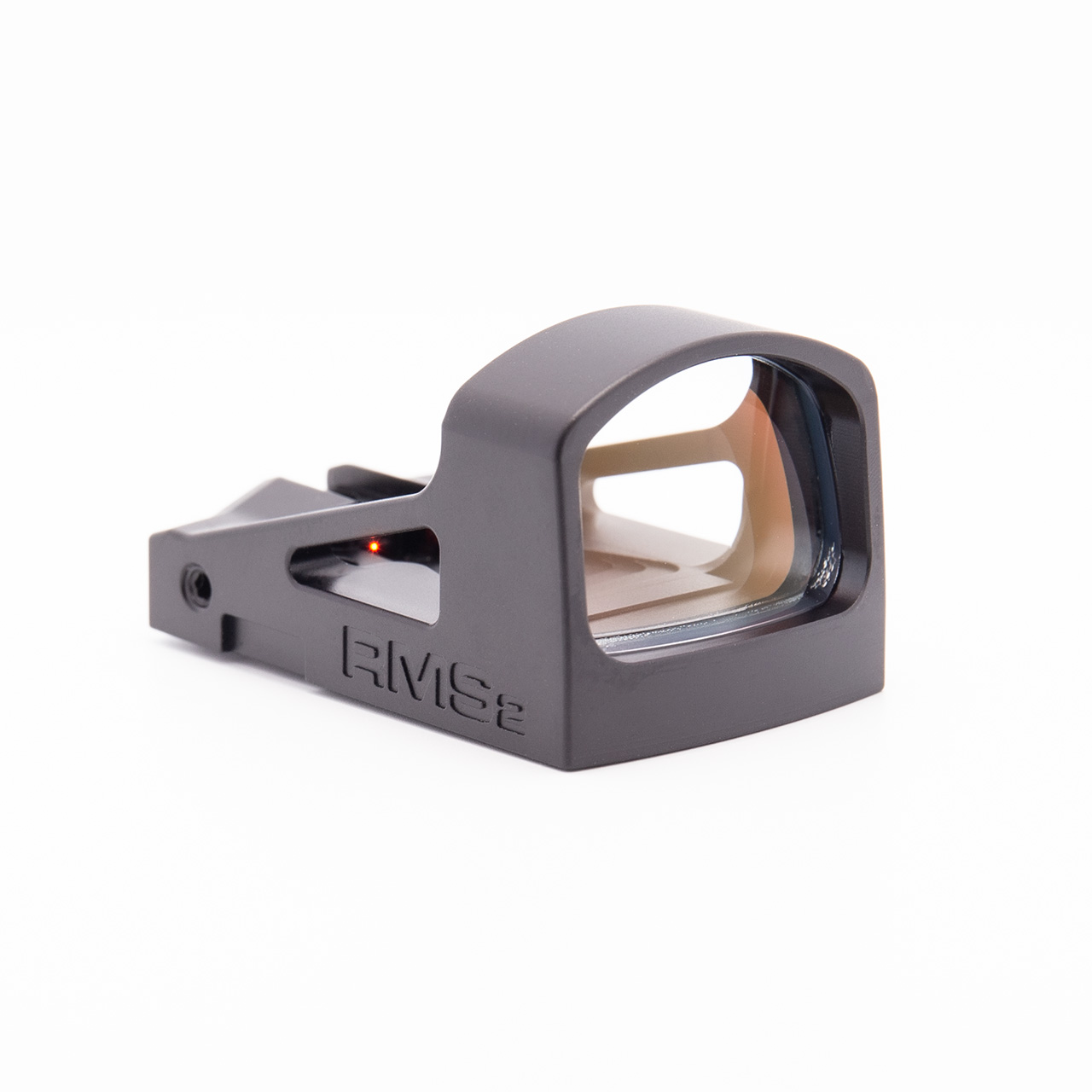

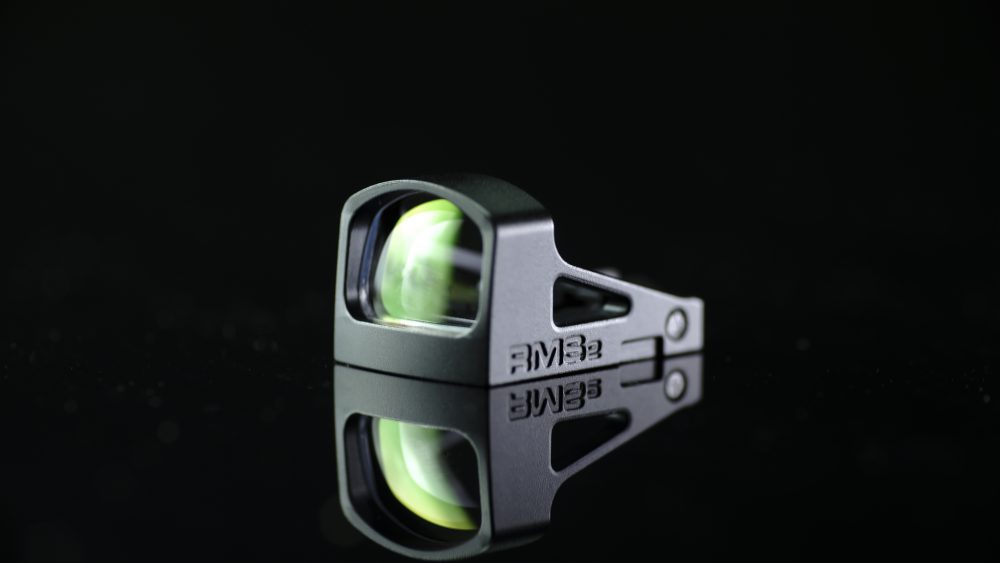

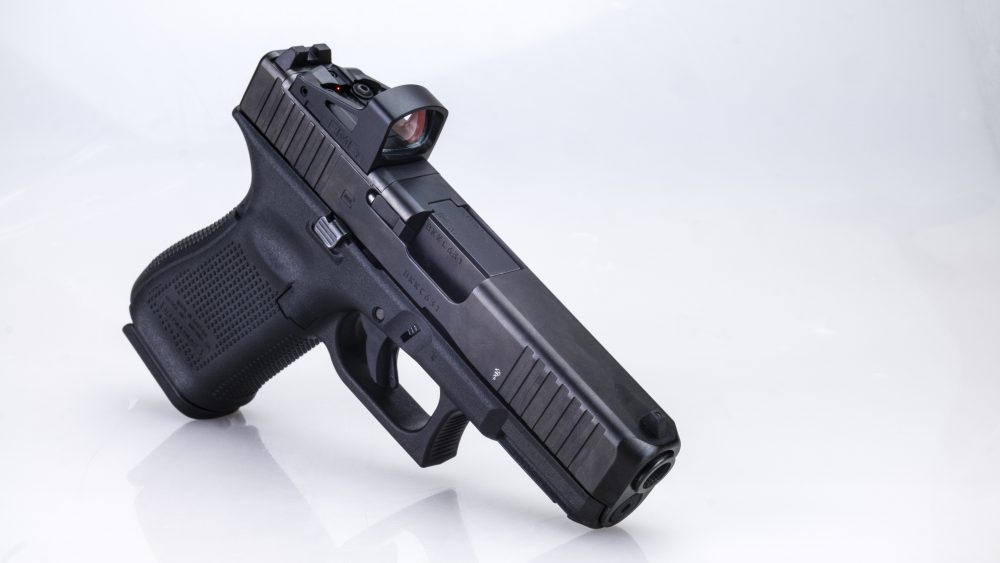

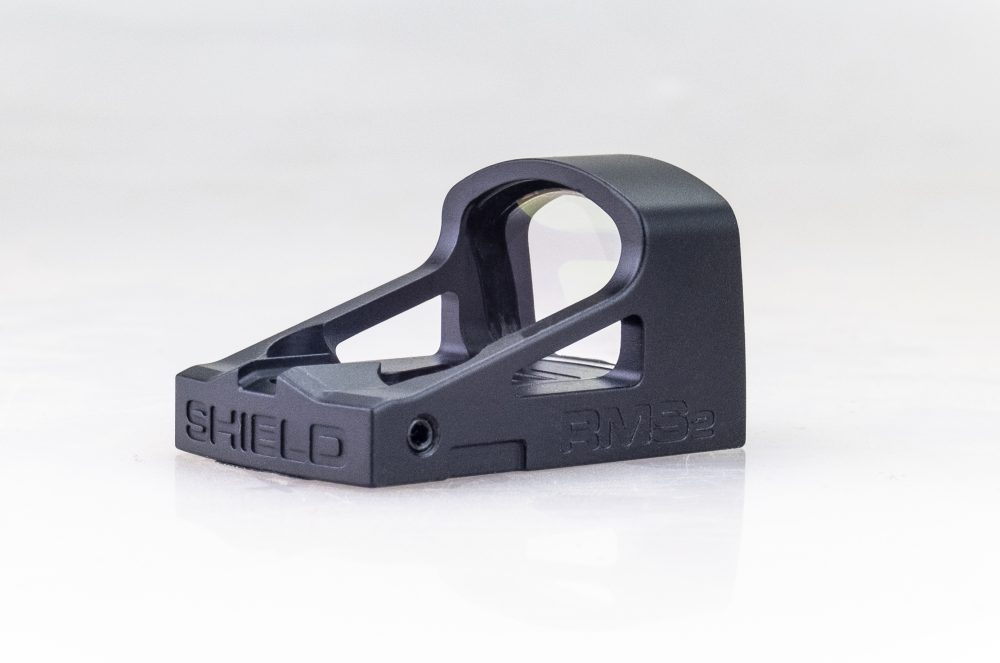

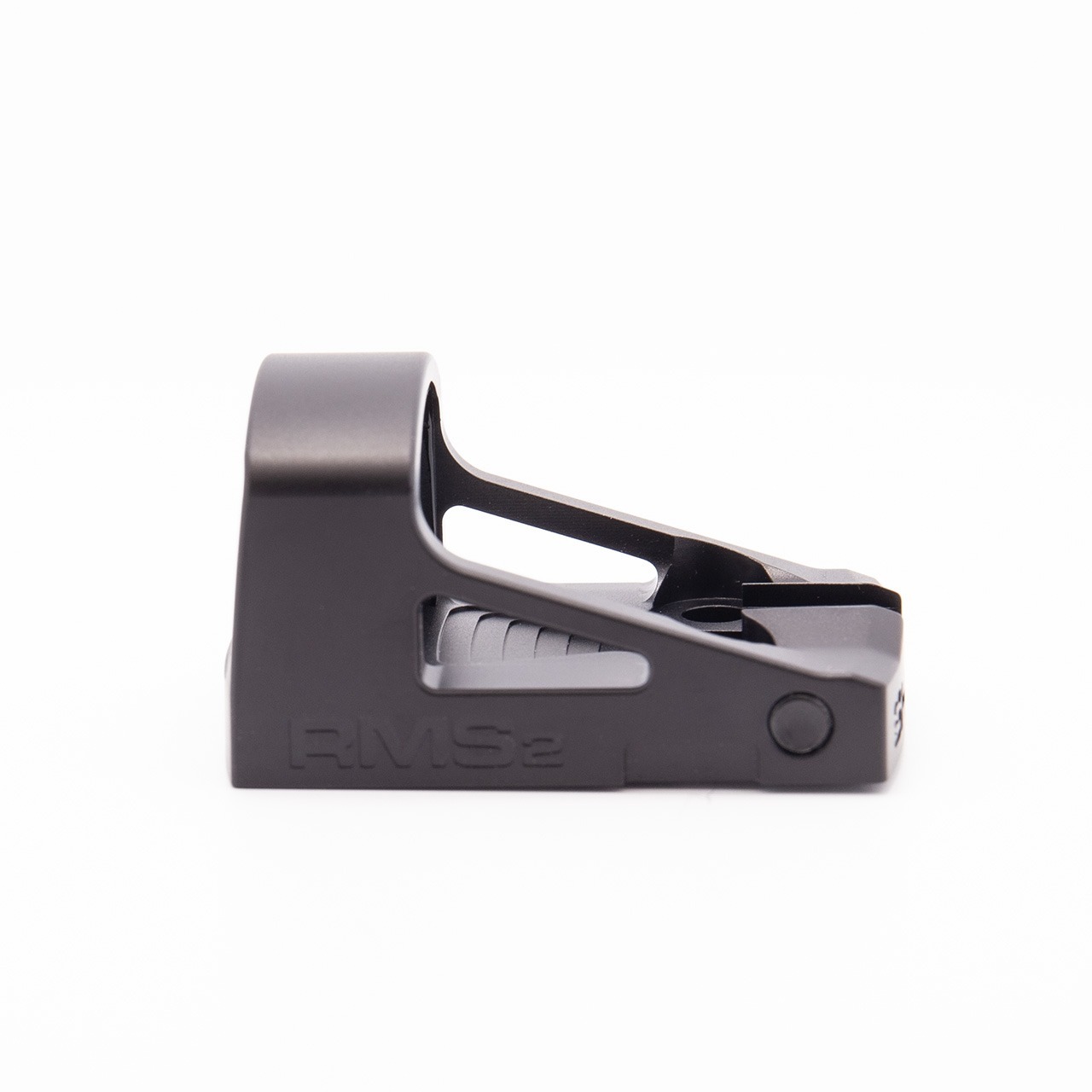

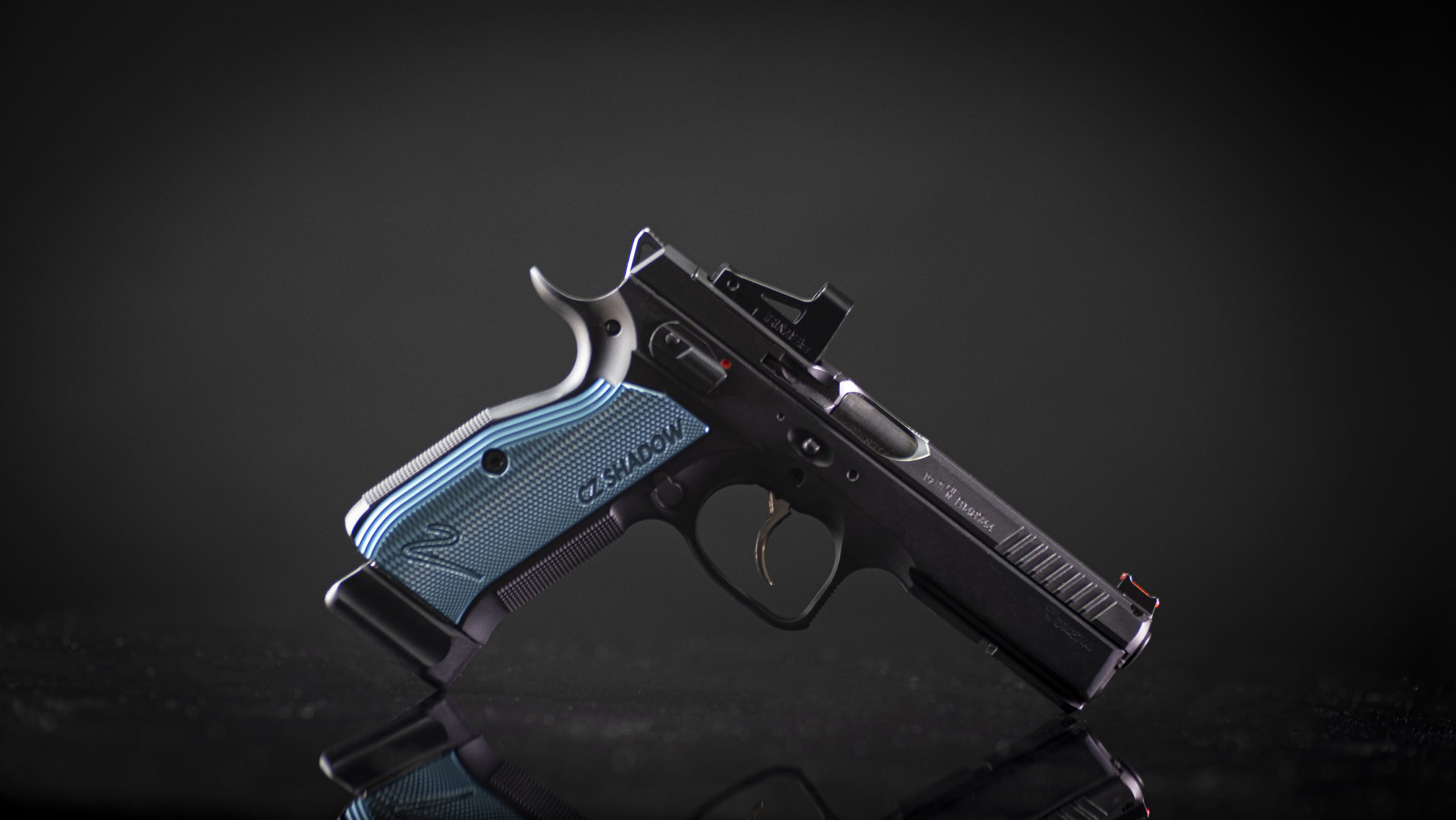

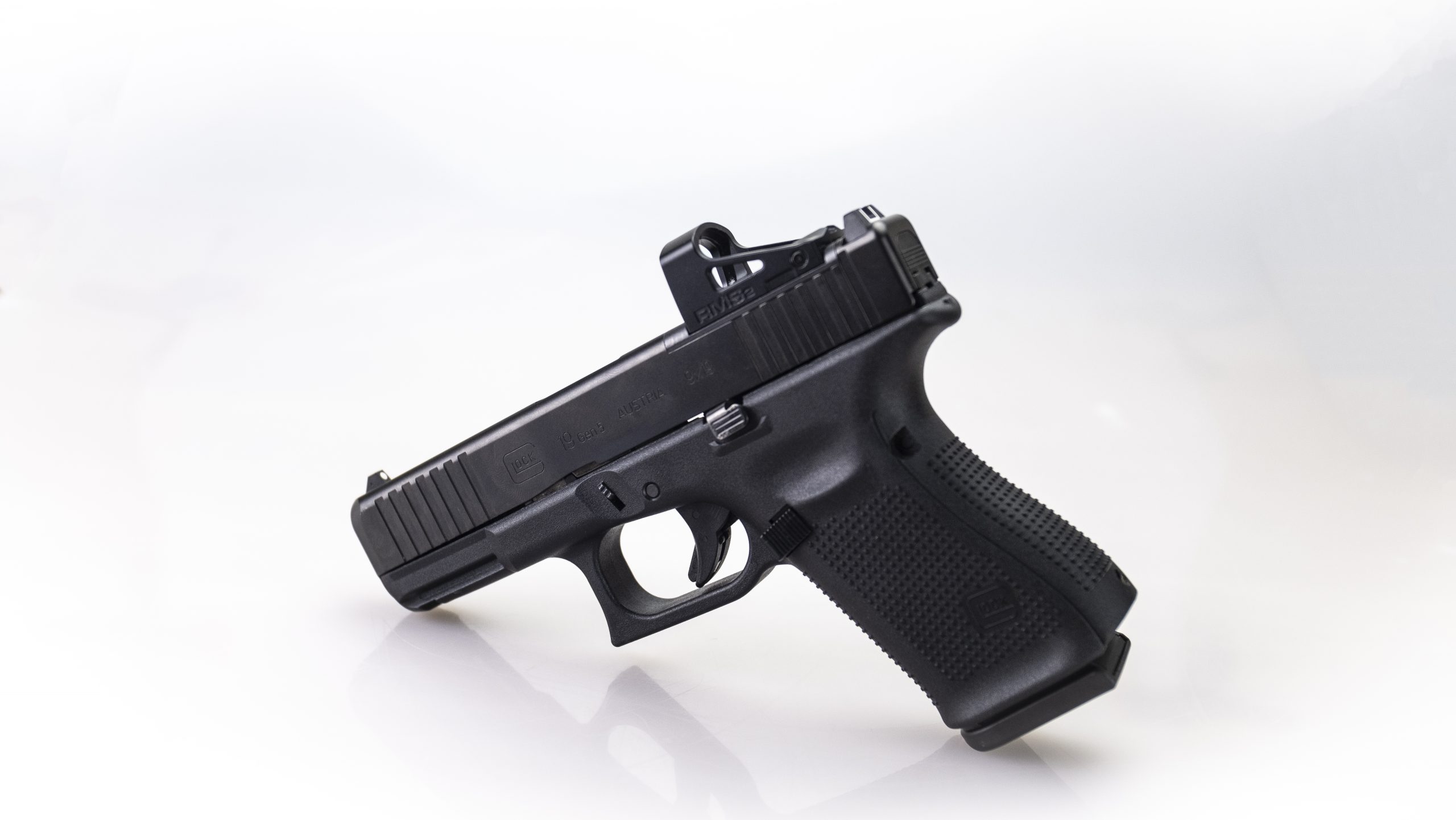

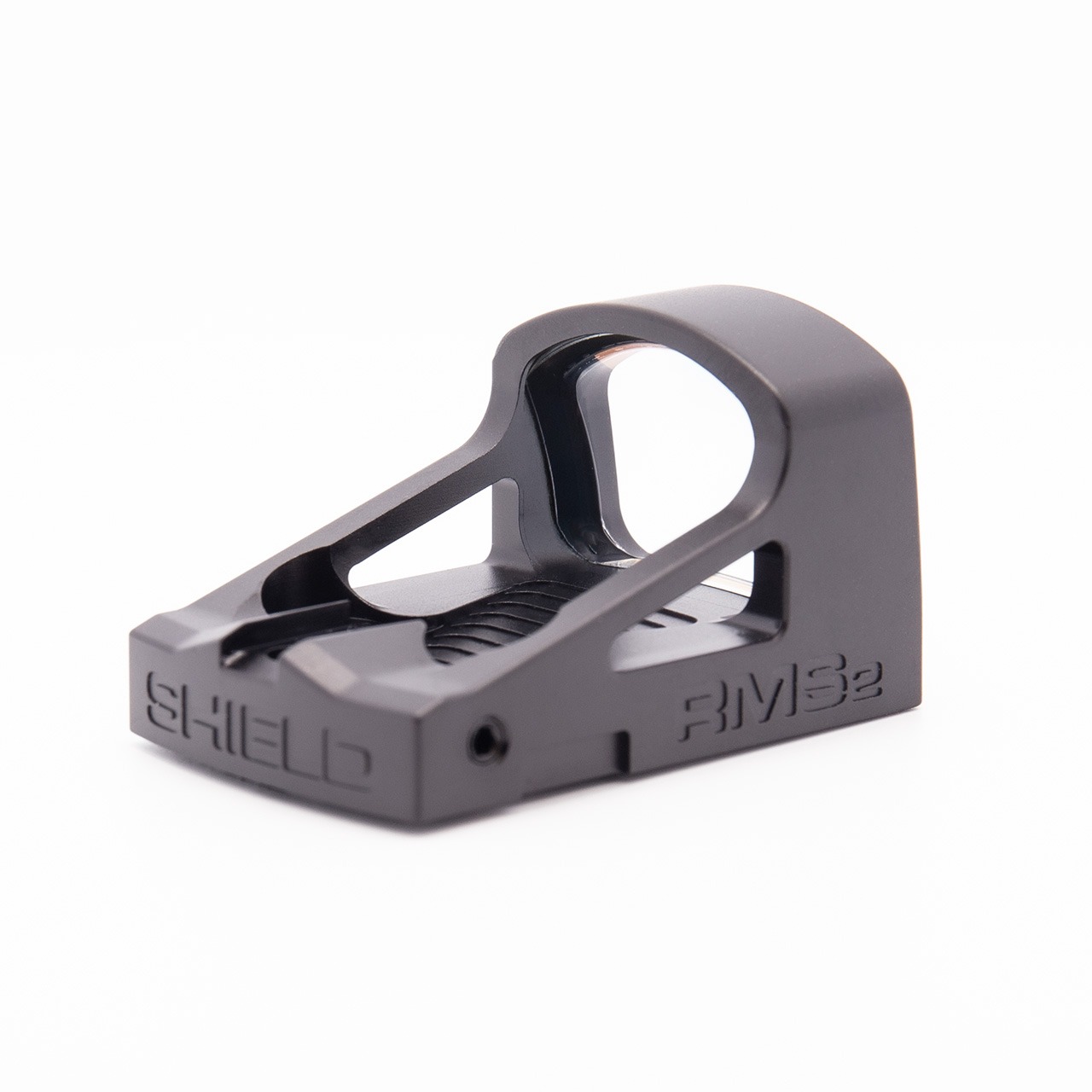

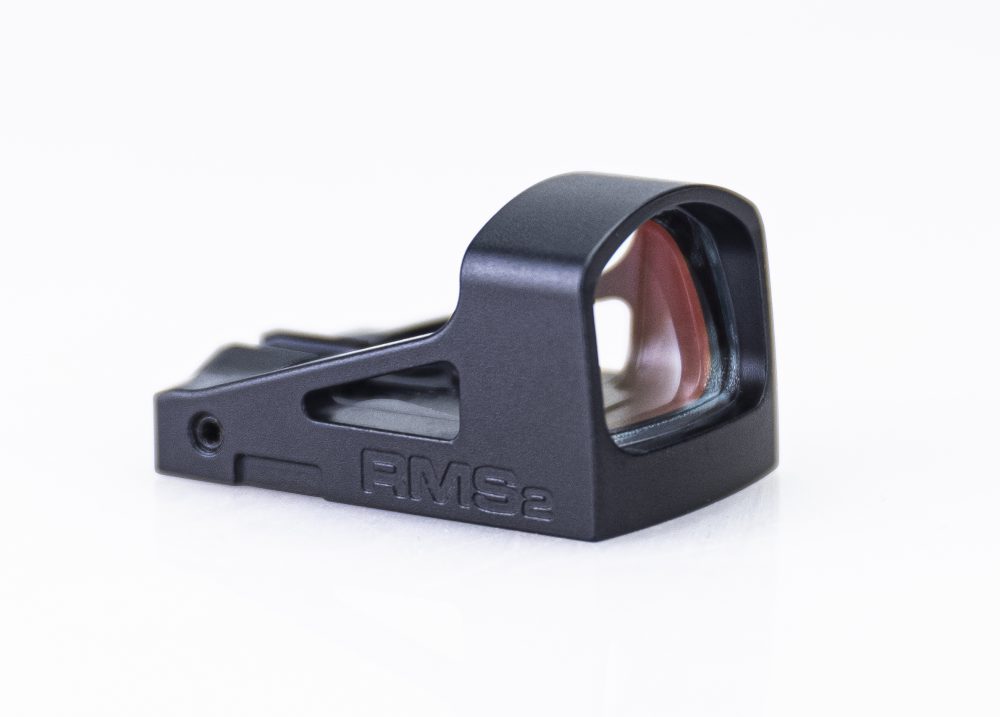

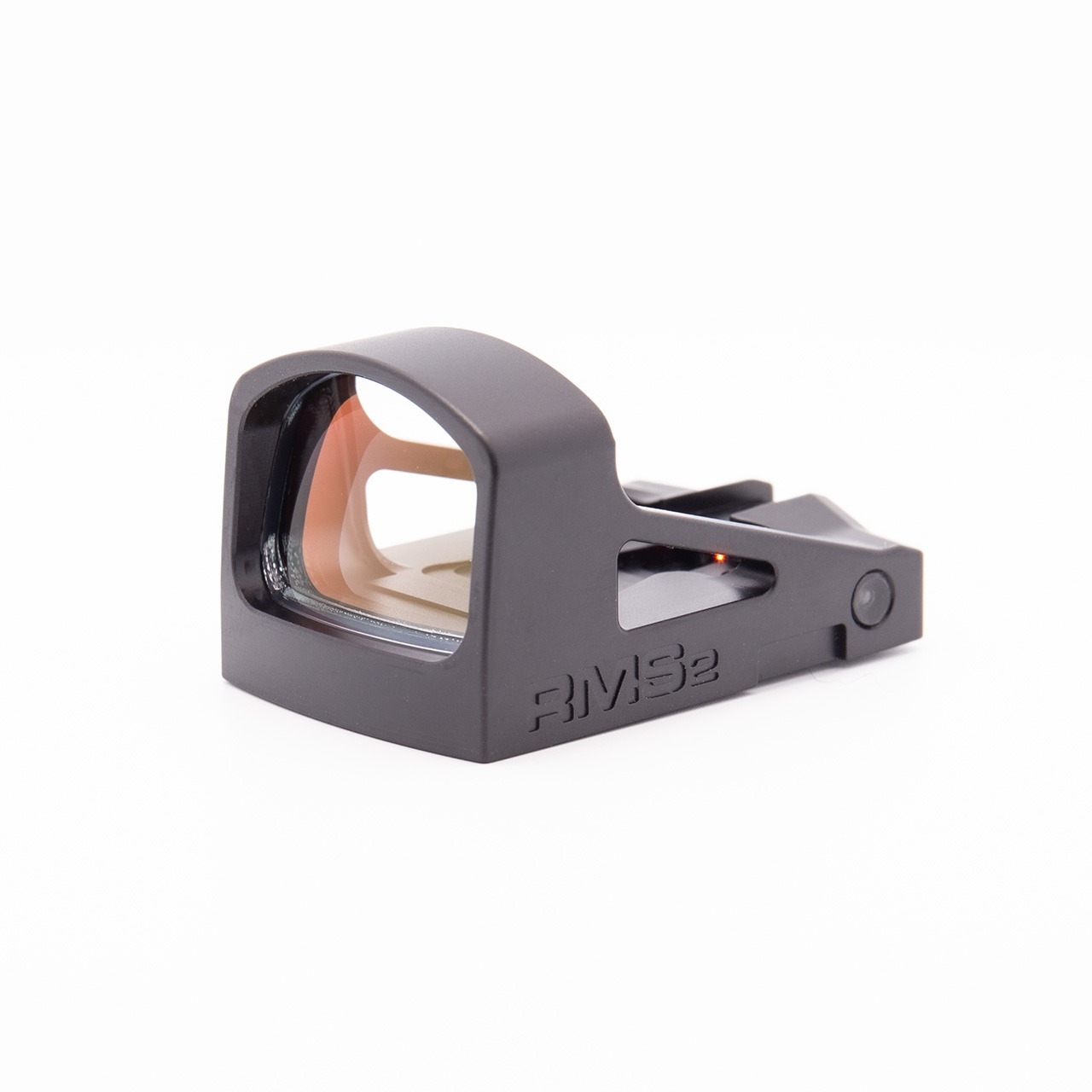

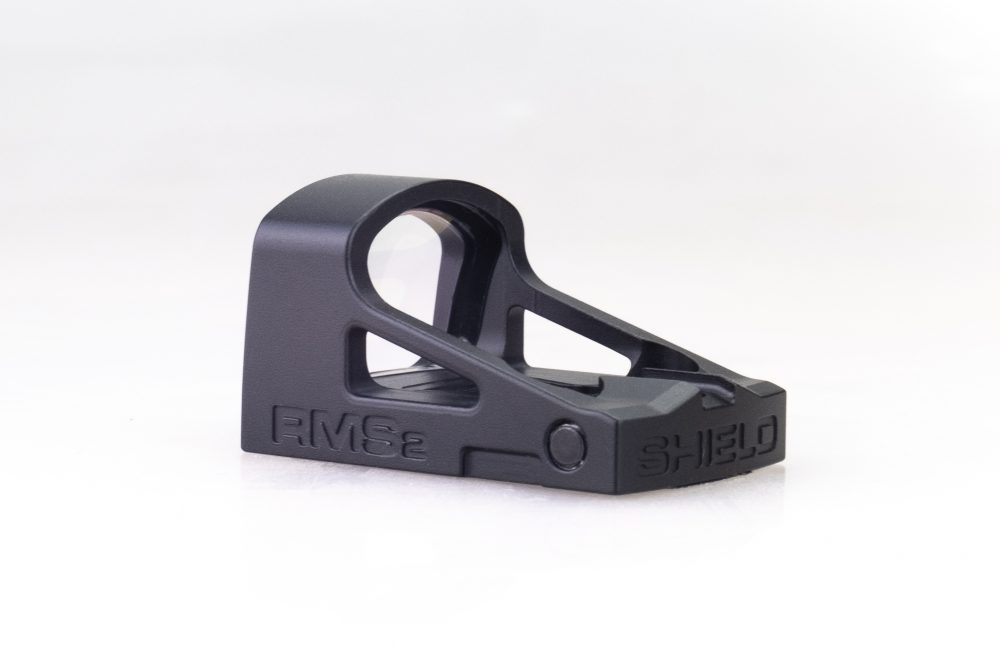

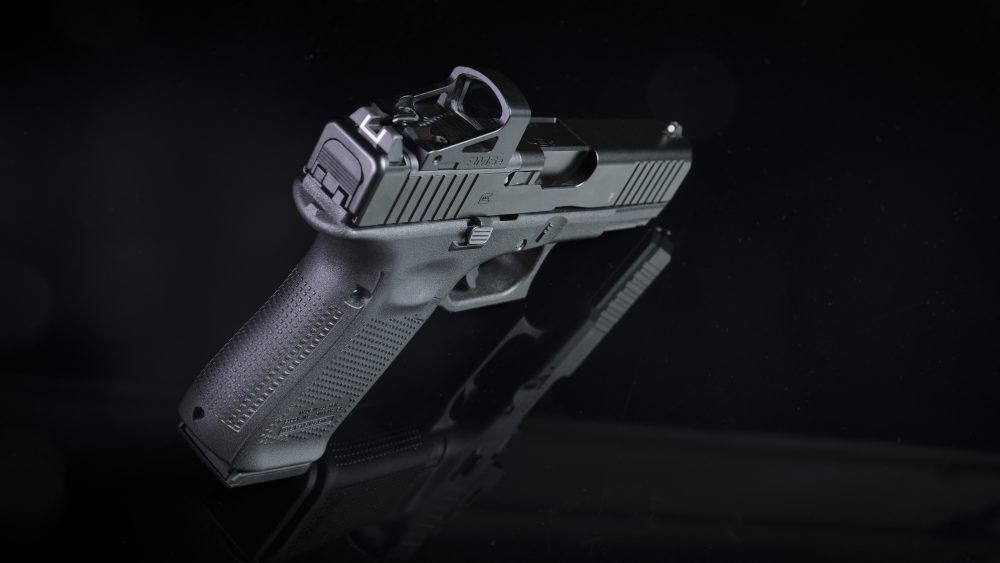

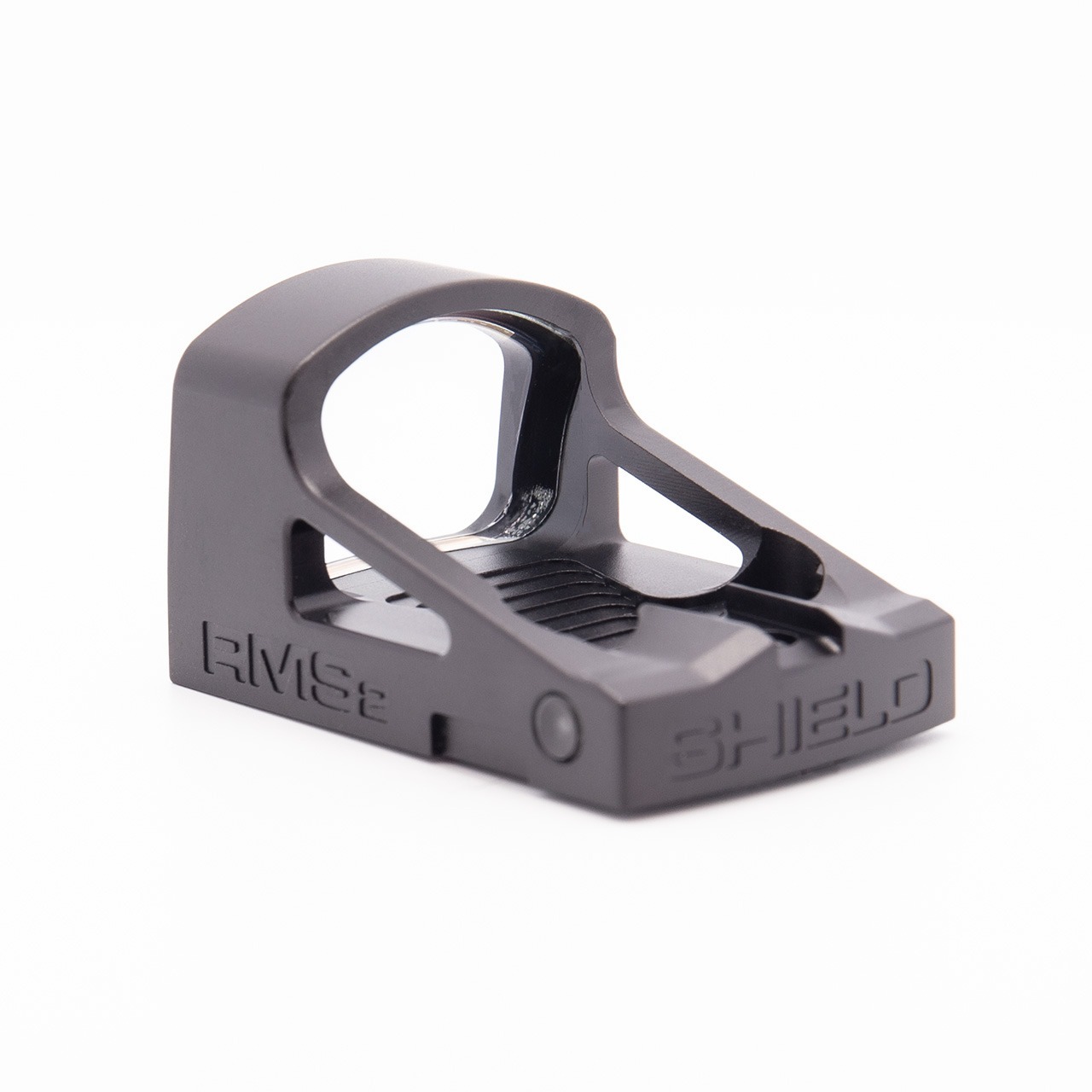

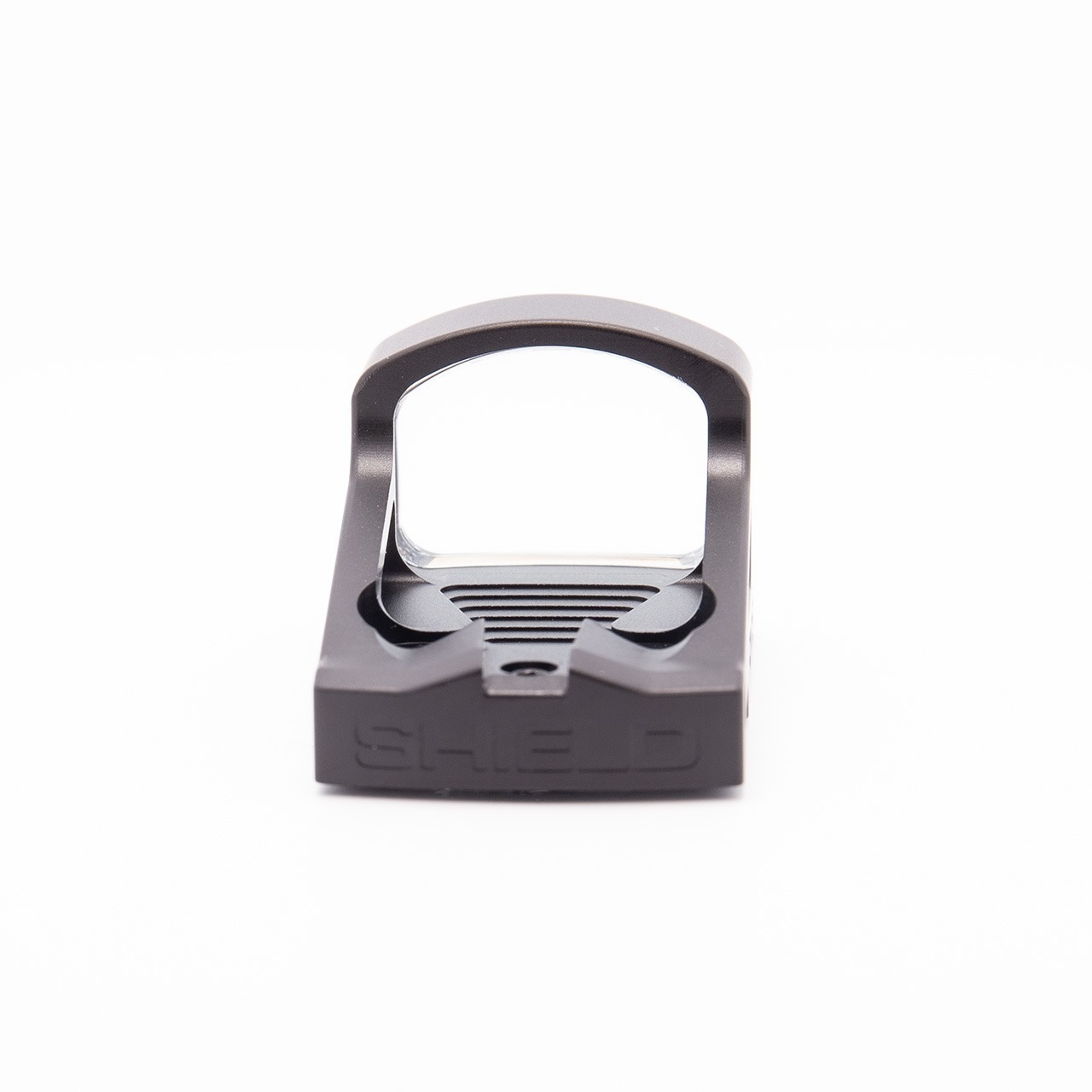

The RMS2 is. Small enough to fit discreetly on any gun, tough enough to withstand the harshest recoil and light enough that you won’t even feel it’s there. The RMS2 is machined from strong aerospace-grade aluminum. It has super-fast automatic brightness adjustment to adapt to your environment allowing you to concentrate on the target. By removing the battery drawer from the original RMS we’ve improved the overall strength of the sight and allows us to fit all new electronics to provide a clear, best in class shooting picture. Its stunning, low profile design makes it an ideal optic for any custom pistol build, and our matching low profile Glock MOS plate has the RMS sitting so low that the sight will co-witness without the need for suppressor sights. And all this at a highly competitive price.
Technical Specification
RMS – TECHNICAL SPECIFICATION
Optical characteristics

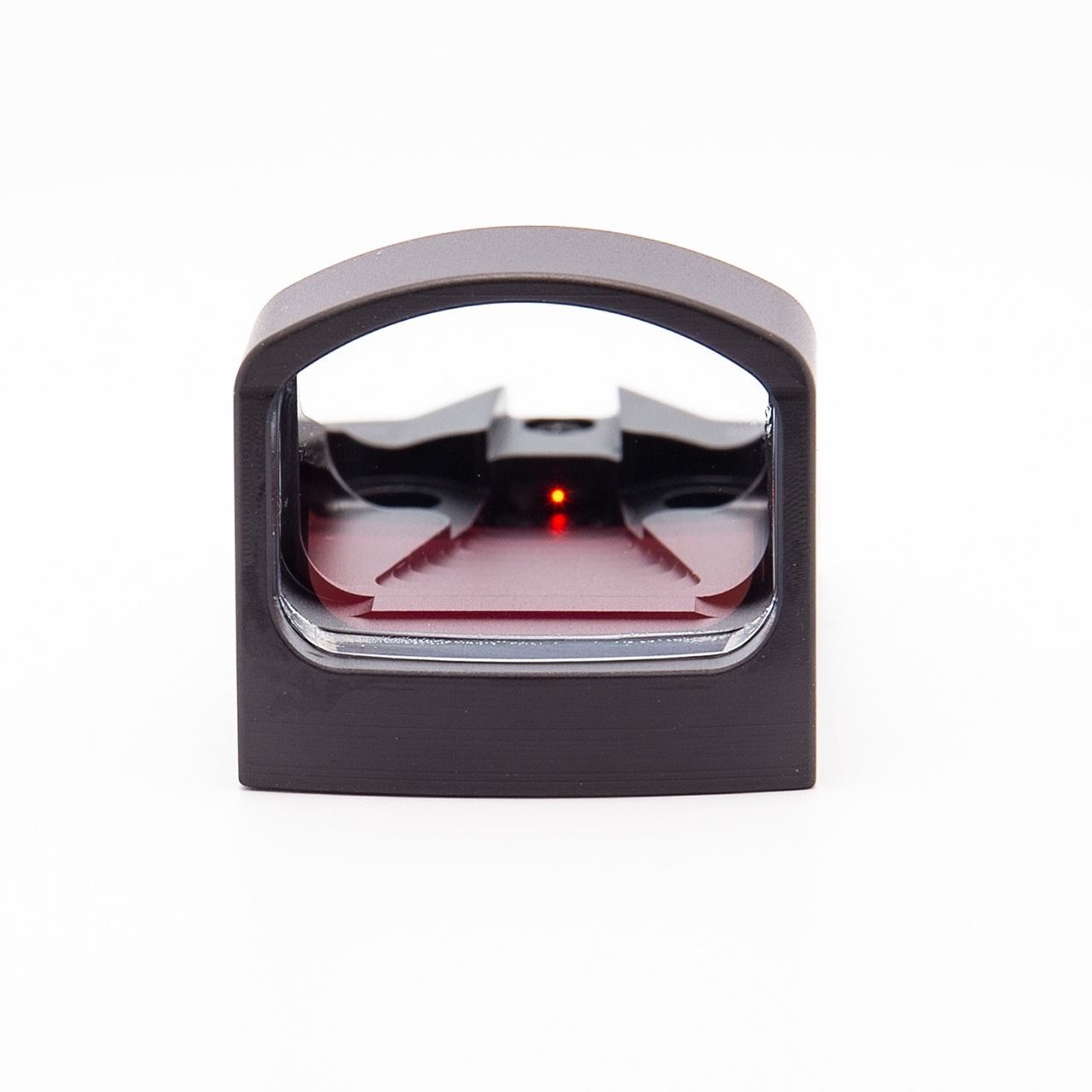

Light Source – Red light emitting diode (LED) No laser; completely eye safe No radioactive materials
Red Dot Size Options – 4 MOA dot 8 MOA dot
Lens – Reflex x1 (no magnification) Low Parallax Lens Coating Si02 Quartz and Anti-reflection No coloured coating, minimises visible signature
Electronics – Battery One 3V lithium battery, CR2032 Battery Life 1 to 3 years – average use >4 years – dark storage
Brightness Adjustment – Fast Automatic Brightness Range Lowest – Compatible with Night Vision Highest – Visible against the sky in bright daylight
Exterior Housing Material – Areospace grade aluminum
Colour – Matte black
Dimensions – Sight only (Length x width x height) 42 x 25 x 23 mm 1.7 x 1.0 x 0.9 inches
Weight – 17.5 grams / 0.61 ounces
Mount – A wide range of mounts are available.
Lens Cleaning
Lens Cleaning Instructions
When cleaning your Shield Sight, the lens needs to be prepared and cleared of any debris before the cleaning process can begin in order to avoid scratching the lens.
We recommend using compressed air to blow away debris rather than wiping the lens. This can be in a form of an aerosol-can, that can be purchased online.
Once you are happy that your lens is clear of debris, hot soapy water is the most effective solution to clean the lens. Household washing up liquid is sufficient. Using a Q-tip, dip the end in the solution and gently start wiping the lens discarding the Q-tip after each full rotation to ensure residue is not spread across the lens. We recommend starting around the edges of the lens working the way in to the centre.
This process can be used for both glass and polymer lenses
Accessories
Accessories included with the RMS2
Accessories: Minidial
CR2032 Battery
RMS2 Cover
1° shim
2 x Button head M4x8mm screws
2 x Button head M4x10mm screws
2 x Hex Wrench tools 1.5mm, 2.5mm
RMS 2 Instruction Manual 2021 pdf
