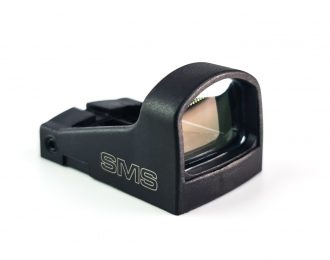

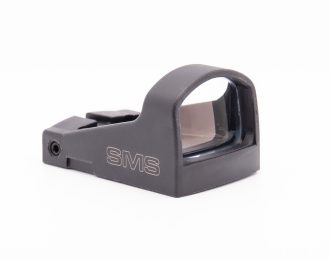

SHIELD MINISIGHT
SMS – JPOINT (US)
The Original
World’s original, smallest, lightest, toughest mini day / night sight for all military, law enforcement and sporting small arms. With over 100,000 delivered to date, Shield’s Mini Sight has a proven track record.
Shoot early with both eyes open, hit early whilst providing large peripheral vision. It continues to excel in competition shooting and self defence and is a great choice for any and all aiming needs.
The SMS was designed originally for use with pistols and has since evolved into an all round combat optic, used intensively in war zones all over the globe.
Over 15,000 units are in use by the British regular army and Special Forces, as well as US, Australian, New Zealand Special Forces and other NATO forces. Also used by competitive sports men and women across the globe.
SHIELD Mini Sight
- Mounts to SHIELD’s famous footprint.
- Utilizes SHIELD’s patented mechanism, enabling co-witnessing with standard iron sights, considerably reducing training times and costs.
- The mechanism uses no click adjustment, making it infinitely more accurate when zeroing.
- D-shaped hard-dipped acrylic lens with no filters to disturb the image of the world through the sight.
- Crafted from reinforced nylon glass-filled polymer
- Weighing only 10.8g (battery excluded).
- Auto brightness adjustment, so it can always be on and ready.
- 20,000 hours in average daylight with a CR2032.
Technical Specifications
Optical characteristics
- Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
- Red Dot Size Options: 2 MOA, 2 MOA + 65 MOA Ring, 4 MOA and 8 MOA.
- Lens: D-shaped, hard-dipped acrylic lens with no filters to disturb the image of the world through the sight.
- Lens Coating: Hard coating with anti-reflective, color-free coating that minimizes visible signature.
Electronics
- Battery: One 3V lithium metal battery, CR2032.
- Battery Life: 20,000 hours in average daylight with a CR2032.
- Battery Fitting: Underneath.
- Brightness Range:
- Lowest: Compatible with Night Vision.
- Highest: Visible against the sky in bright daylight.
Exterior
- Housing material: Glass filled Polymer, Optional Rain Cover
- Colour: Matte black
- Dimensions: Sight only (Length x width x height) 42 x 25 x 23 mm 1.7 x 1.0 x 0.9 inches
- Weight: 14 grams / 0.5 ounces
- Mount: A wide range of mounts are available.
