REFLEX MINI SIGHT WATERPROOF

rmswlogo
Order Now

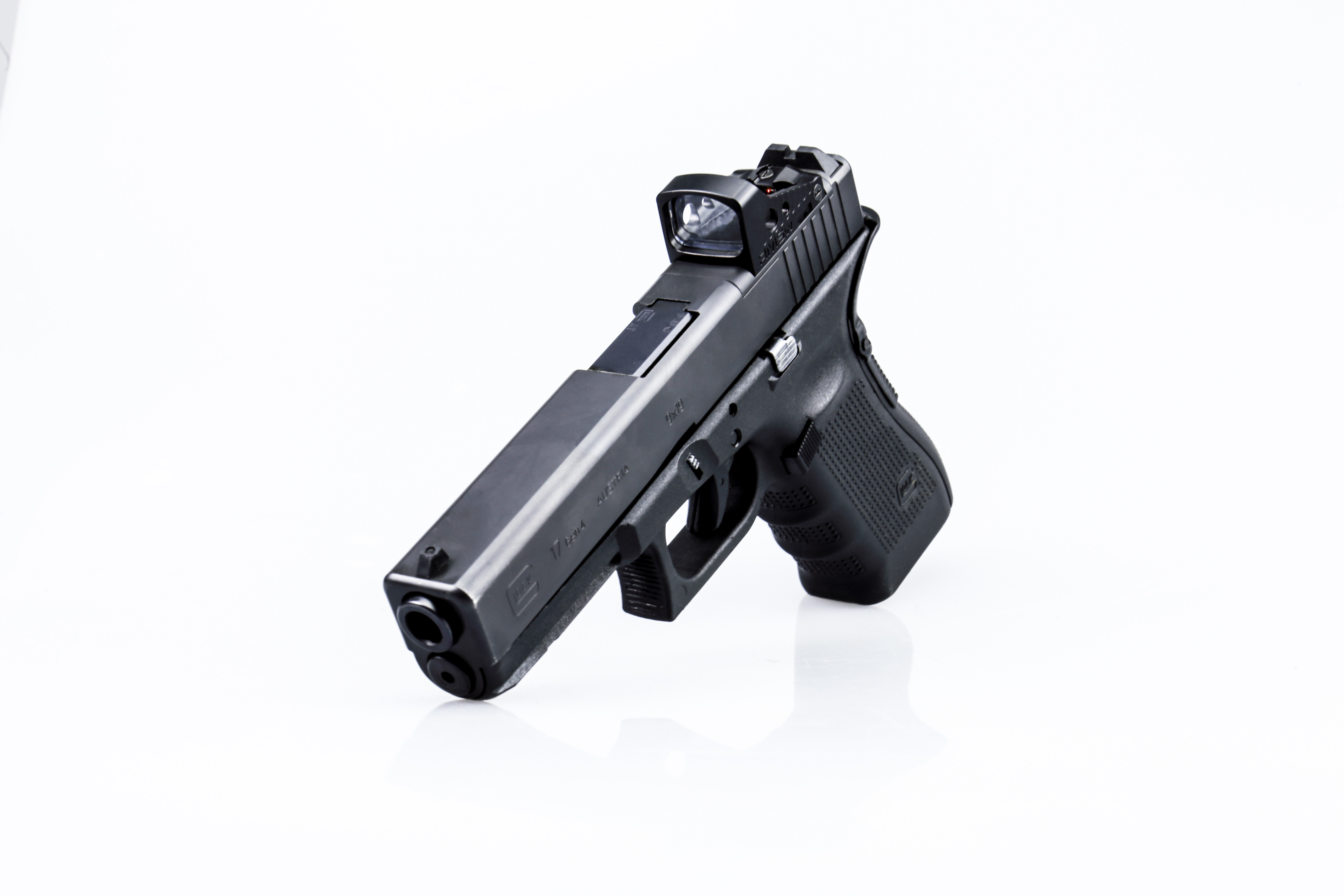

The RMSw is a robust, waterproof red dot sight built to withstand harsh environments.  It features a gasket-sealed design, enabling it to remain watertight at depths up to 30 feet for over 30 minutes without the need for additional mounting plates. A redesigned frame and reinforced housing enhance durability and boasts a crystal-clear glass lens for superior scratch resistance. The RMSw maintains the standard SHIELD footprint, ensuring compatibility with a wide range of firearm slides.  SHIELD also offers over 40 mounting solutions for versatile firearm integration.

rmsw-glass

Technical Specifications

Optical characteristics

  • Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
  • Red Dot Size Options: 4 MOA and 8 MOA.
  • Lens: D-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Lens Coating: Hard coating with anti-reflective, color-free coating that minimizes visible signature.

Electronics

  • Battery: One 3V lithium metal battery, CR2032.
  • Battery Life: 20000 hours in average daylight with a CR2032.
  • Battery Fitting: Underneath.
  • Brightness Range:
    • Lowest: Compatible with Night Vision.
    • Highest: Visible against the sky in bright daylight.

Exterior

  • Housing Material: Aluminum.
  • Color: Matte black.
  • Dimensions: Sight only (L x W x H): 40.8 mm x 25.35 mm x 22.8 mm (1.61″ x 1.0″ x 0.89″).
  • Weight: 21 grams / 0.75 ounces (excluding battery).
  • Mount: The SHIELD footprint – 100+ mounting solutions.
  • Water Immersion: 30 feet for over 30 minutes (IP68).

Perfect for demanding weather condidtions.

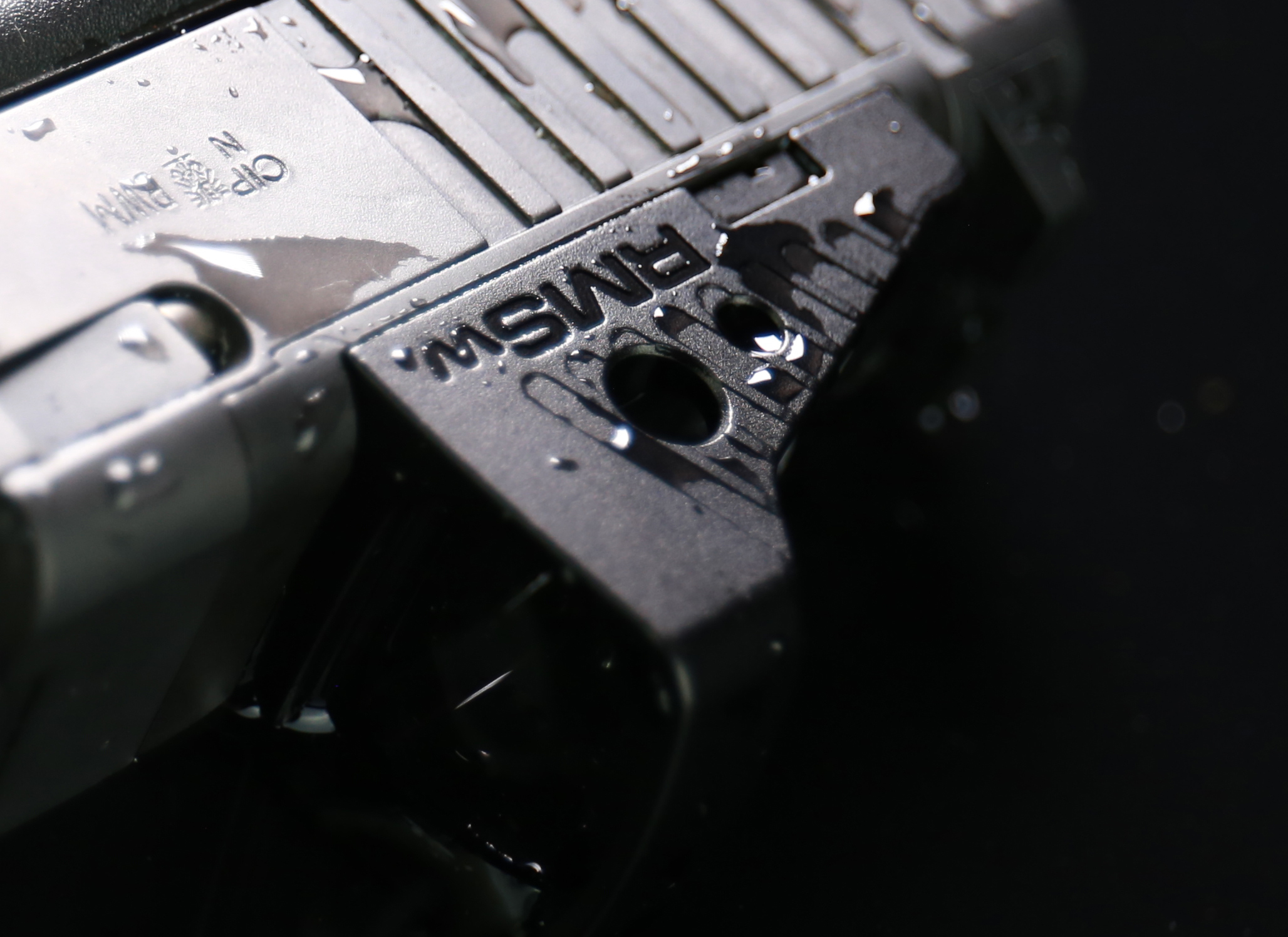

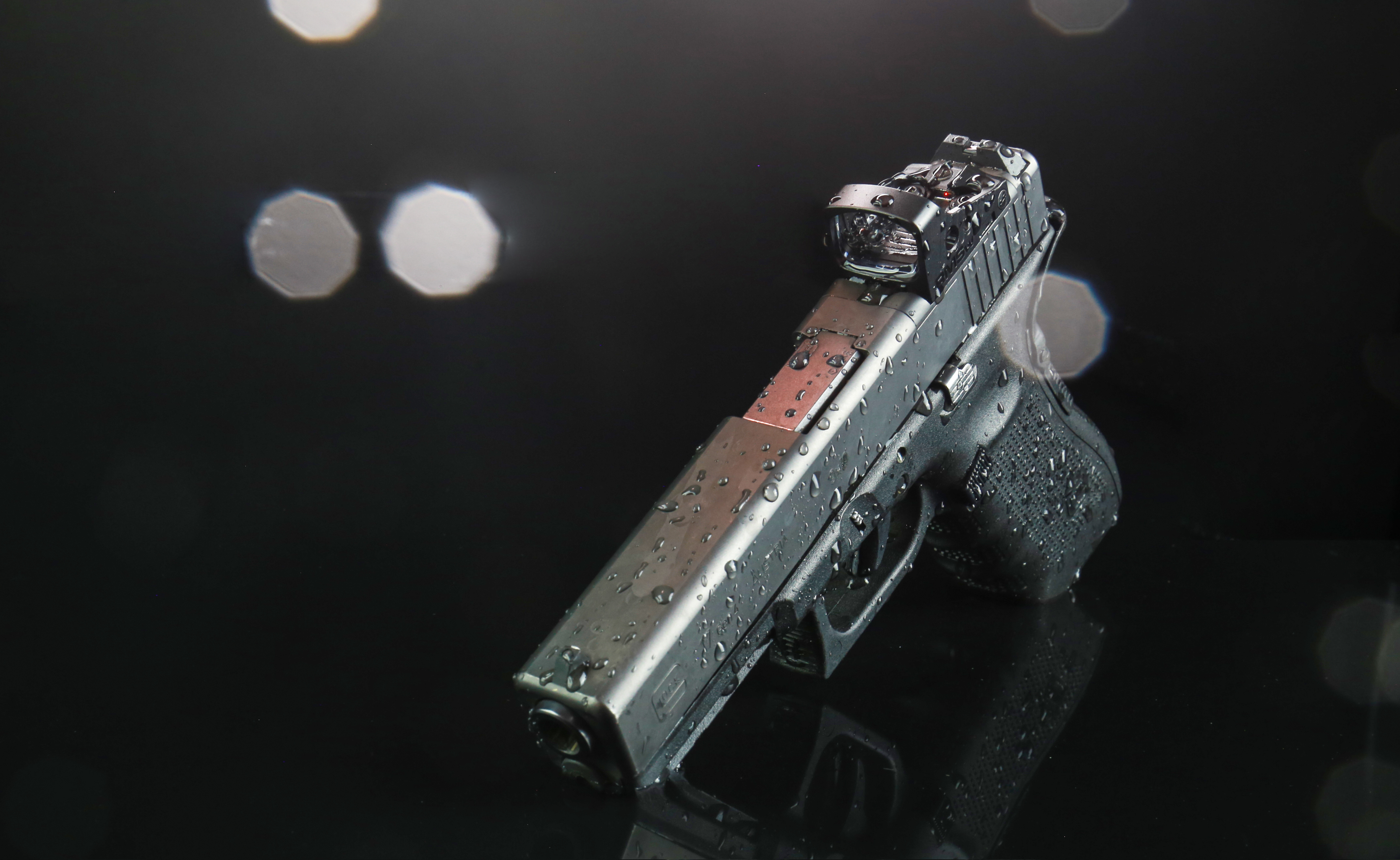

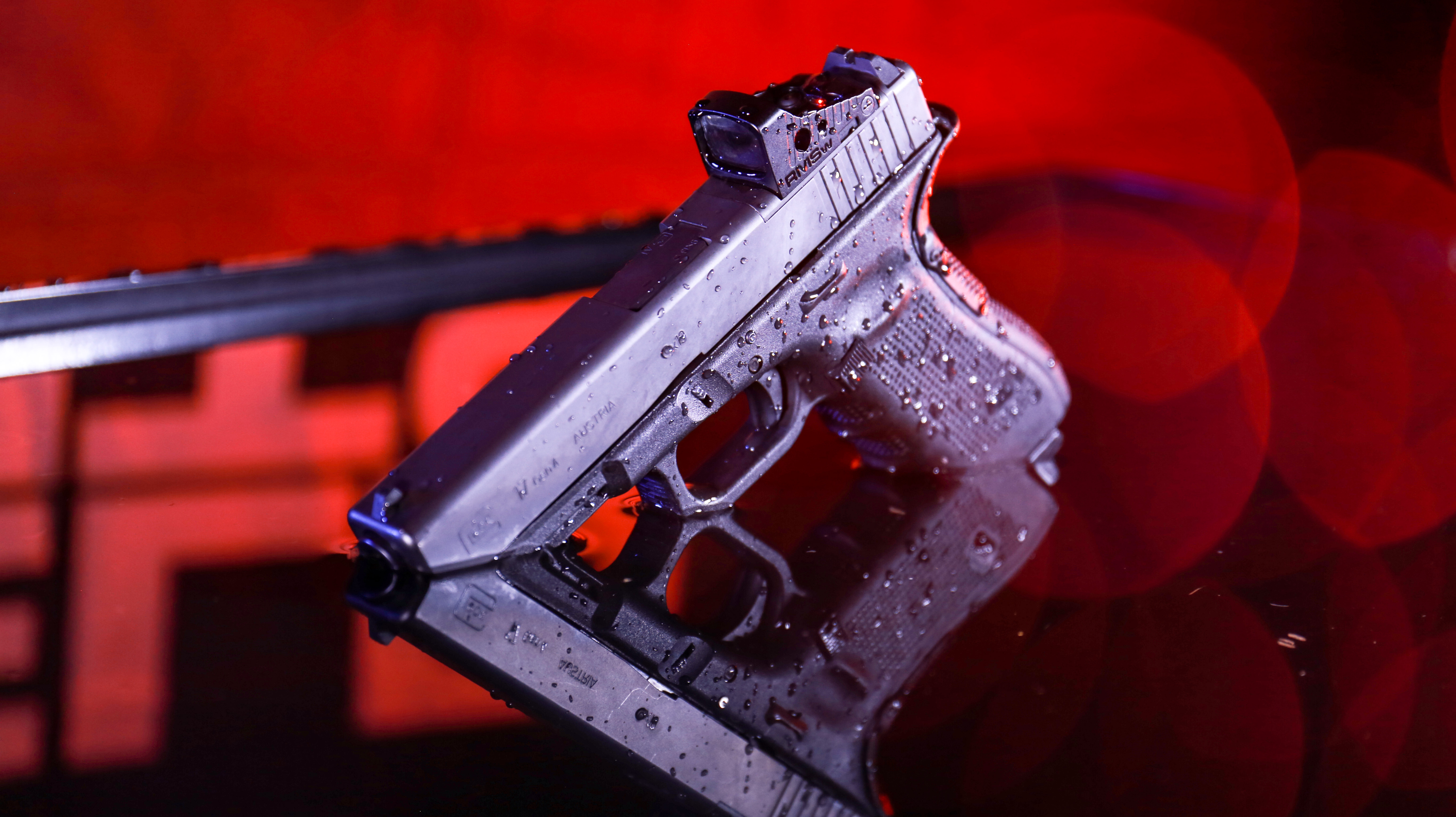

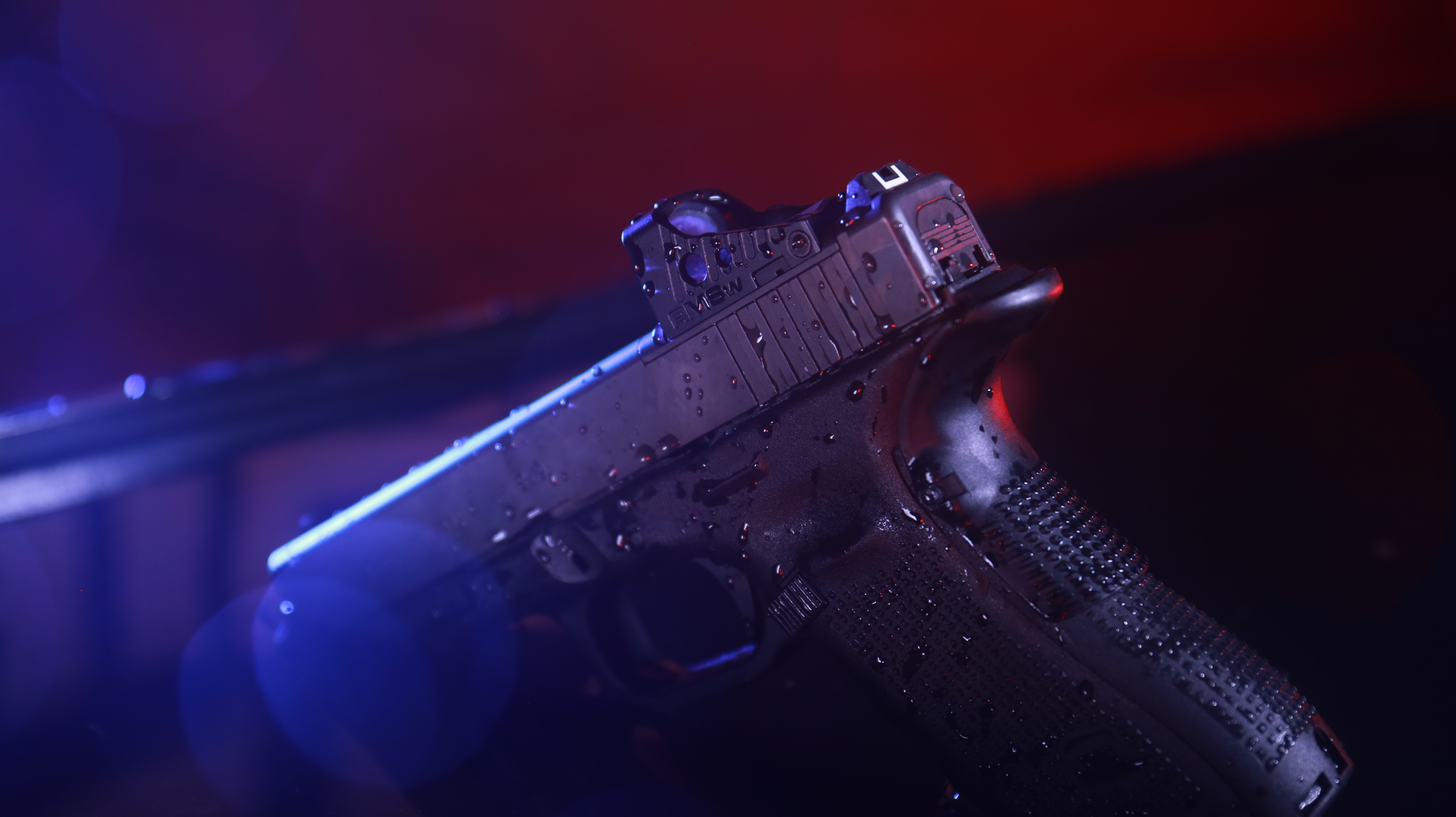

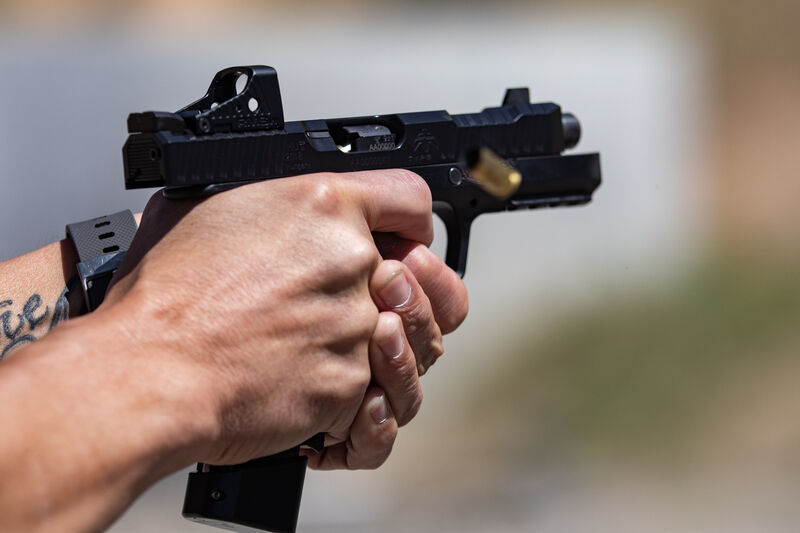

The SHIELD RMSw is designed for shooters who demand reliability in harsh weather conditions. With a gasket-sealed design, the RMSw provides exceptional protection against water and dust ingress, ensuring performance in rain, mud, and extreme environments. While still an open-emitter sight, it offers significantly enhanced sealing over standard reflex optics, making it one of the toughest in its class.

rmshd
rmsw-1

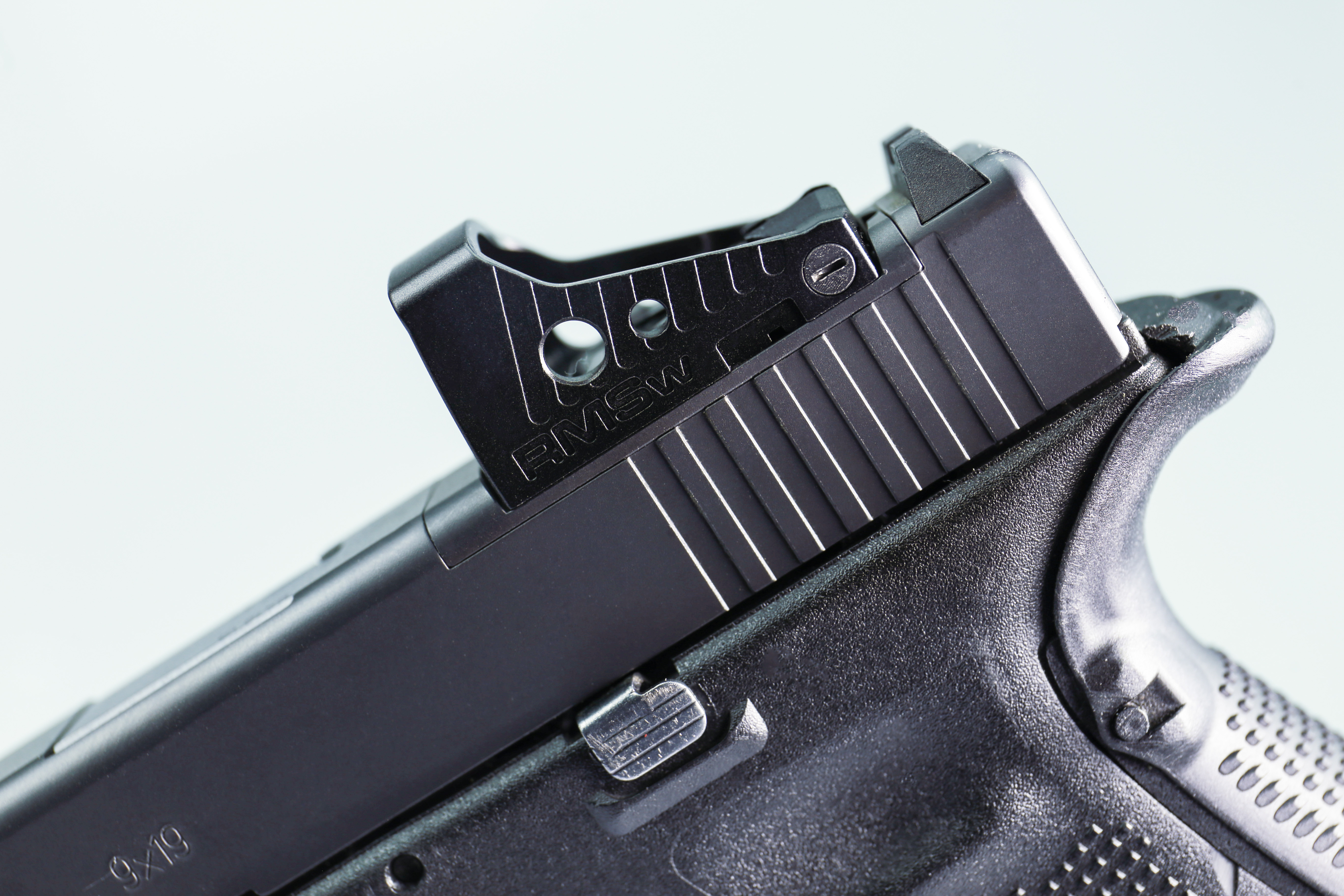

Optional AMR – Armour Hood for the RMSw.

A reinforced housing and crystal-clear glass lens provide superior durability and scratch resistance, and for those needing even more resilience, the optional AMR (Armour Hood) offers extra protection. With the right mounting options, the RMSw also co-witnesses with standard iron sights, ensuring fast and reliable target acquisition.
